ButaBoard PCB layout, top view — open source AVR/Arduino board by azerimaker

About the ButaBoard PCB

ButaBoard is an open source AVR/Arduino PCB design by azerimaker, published on GitHub. It is a 2-layer board measuring 71.6 × 94.2 mm, with 79 components from 46 distinct parts.

Its main chip is the ATMEGA32U4-AU, from the AVR/Arduino family. Other key parts include the AP2112K-3.3TRG1, LIS3DH, LMV358DMR2G and AOS3729A. By type, the board carries 22 connectors, 17 diodes, 15 resistors, 12 capacitors, 5 ICs and 3 switches.

It belongs with the sensors designs in this gallery.

From the project

This repo contains all the necessary design and fabrication files for the ButaBoard.

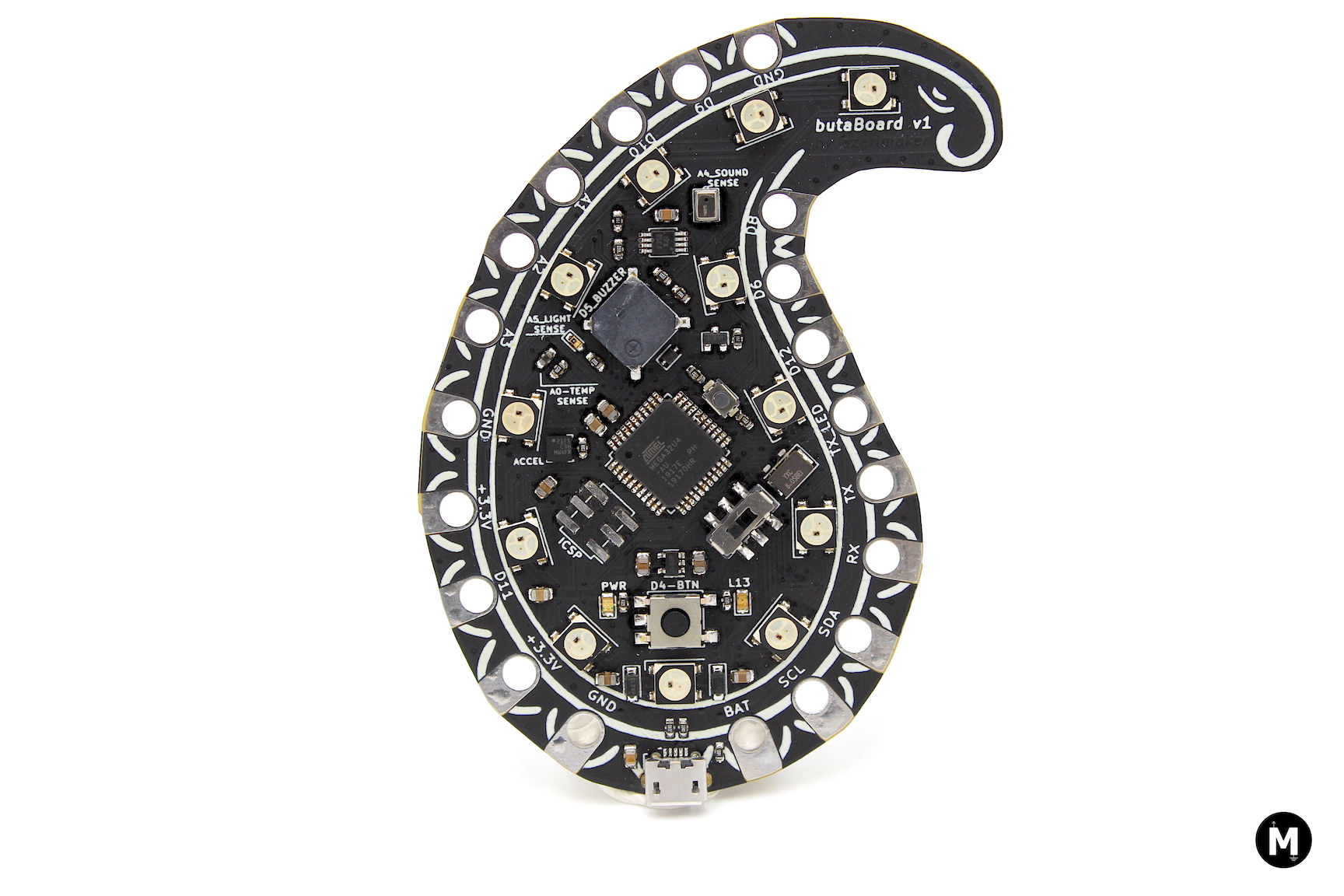

ButaBoard, from the project README
From the project README

Main components on the ButaBoard

AP2112K-3.3TRG1LIS3DHATMEGA32U4-AULMV358DMR2GAOS3729A

ButaBoard bill of materials (BOM)

79 components, 46 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP2112K-3.3TRG1
AP2112K-3.3
U1
1
LIS3DH
U2
1
ATMEGA32U4-AU
ATmega32U4-AU
U3
1
LMV358DMR2G
U4
1
AOS3729A
U5
1
FHT3265-ME
FHT3265
Q1
1
ALS-PT19-315C/L177/TR8
ALS-PT19-315C
Q2
1
X50328MSB2GI
8MHz
Y1
1
D8
J2
1
D9
J3
1
D10
J4
1
D11
J5
1
C10418
USB_B_Micro
J6
3
GND
J7, J8, J9
1
SCL
J10
1
SDA
J11
3
VBAT
J12, J14, J15
1
RX
J13
1
TX
J16
1
TX_LED
J17
Show 26 more
QtyPartRefs
1
D12
J18
1
D6
J19
1
A3
J20
1
A2
J21
1
A1
J22
1
ICSP
J23
1
GSC8525RA-16R2700
Buzzer 2700Hz
LS1
1
B3U-1000P-B
~RESET
SW1
1
K3-2235S-F1
SW_SPDT
SW2
1
SKHMQKE010
PUSH_BTN
SW3
1
SDNT1608X103F3380FTF
10K 1% NTC
TH1
2
MBR120VLSFT1G
MBR120
D1, D3
1
Green
D2
1
RED
D4
1
1N4148WS
D5
12
WS2812B-B
WS2812B
D6, D7, D8, D9, D10, D11, D12, D13 +4
5
1UF
1uF
C1, C2, C5, C6, C10
2
22PF
22pF
C3, C4
3
10UF
10uF
C7, C8, C12
1
4.7NF
4.7nF
C9
1
100NF
100nF
C11
7
10K
R1, R3, R9, R12, R13, R14, R15
4
1K
R2, R6, R8, R10
2
22R
R4, R5
1
1M
R7
1
100K
R11

ButaBoard design files

The KiCad project lives in the azerimaker/ButaBoard repository on GitHub; these links point at the commit this page was built from.

ButaBoard: common questions

What microcontroller does the ButaBoard use?

The ButaBoard is built around the ATMEGA32U4-AU, from the AVR/Arduino family.

How big is the ButaBoard PCB?

The ButaBoard measures 71.6 × 94.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ButaBoard?

79 components, from 46 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ButaBoard design files?

From the azerimaker/ButaBoard repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the ButaBoard design in my own project?

The repository has no license, so all rights stay with azerimaker. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ButaBoard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
