OlmBoard-RP605x

azerimaker·olmBoard-RP605x·hardware/olmBoard-RP605x-v1/olmBoard-RP605x-v1.kicad_pcb

OlmBoard-RP605x PCB layout, top view — open source board by azerimaker

About the OlmBoard-RP605x PCB

OlmBoard-RP605x is an open source PCB design by azerimaker, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 34.5 × 19.3 mm, with 15 components from 10 distinct parts.

Other key parts include the RP605K333B. By type, the board carries 7 capacitors, 4 connectors, 1 IC, 1 jumper, 1 inductor and 1 resistor.

It belongs with the power & battery designs in this gallery.

From the project

RP605K is a compact ultra-low-power buck-boost converter module with a built-in battery monitor. Vin: 1.8-5.5V and Vout: 3.3V up to 300mA

Introducing our compact and ultra-low-power Buck-Boost Converter Module, designed using the high-performance RP605K333B DC/DC converter IC. This versatile module is perfect for powering a wide range of electronic devices, providing a stable 3.3V output (up to 300mA) from varying input sources ranging from 1.8V to 5.5V. This nifty little IC also features built-in Battery Monitor (BM) circuitry that, when enabled, divides the input voltage (VIN/3) and directly provides a buffered voltage to be measured by the ADC. These readings can be used to estimate the state of a battery.

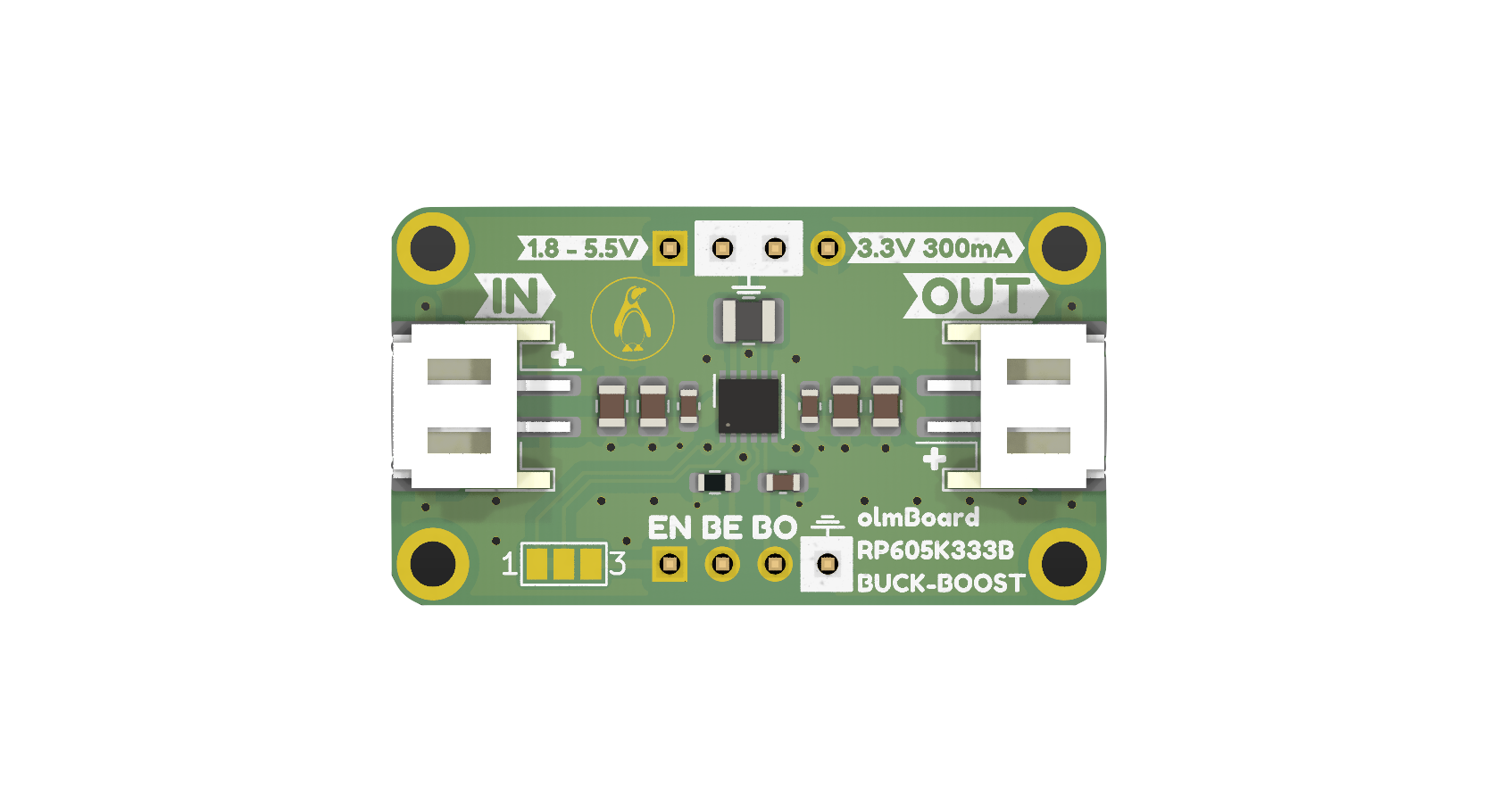

OlmBoard-RP605x, from the project README
From the project README

Main components on the OlmBoard-RP605x

RP605K333B

OlmBoard-RP605x bill of materials (BOM)

15 components, 10 distinct parts.

QtyPartRefs
1
RP605K333B
U1
2
S2B-PH-SM4-TB(LF)(SN)
VIN
J1, J2
1
-
Conn_A
J3
1
-
Conn_B
J4
1
-
EN
JP1
1
MLP2520S2R2ST0S1
2.2uH
L1
3
GRM188R60J226MEA0D
22uF
C1, C6, C7
3
CC0402KRX7R7BB104
100nF
C2, C3, C4
1
CL05A105KQ5NNNC
1uF
C5
1
RC0402FR-07100KL
100K
R1

OlmBoard-RP605x design files

The KiCad project lives in the azerimaker/olmBoard-RP605x repository on GitHub; these links point at the commit this page was built from.

OlmBoard-RP605x: common questions

How big is the OlmBoard-RP605x PCB?

The OlmBoard-RP605x measures 34.5 × 19.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the OlmBoard-RP605x?

15 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the OlmBoard-RP605x design files?

From the azerimaker/olmBoard-RP605x repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the OlmBoard-RP605x design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which azerimaker chose for the repository.
