Penguino Feather RAK4260 PCB layout, top view — open source board by azerimaker

About the Penguino Feather RAK4260 PCB

Penguino Feather RAK4260 is an open source PCB design by azerimaker, published on GitHub under the CERN-OHL-S-2.0 license. It is a board measuring 22.9 × 50.8 mm, with 53 components from 38 distinct parts.

Other key parts include the MCP73831-2ACI-OT, ME6215C33, MAX809STRG, RAK4260 and NUP2202W1T2G. By type, the board carries 17 resistors, 13 capacitors, 8 ICs, 5 connectors, 5 diodes and 2 switches.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

This repo contains all the necessary design and fabrication files for the RAK4260 based Penguino SAMR34 Feather breakout board.

First prototypes are being sold on Tindie and some more info can also be found on the corresponding hackaday.io project page. This Penguino version uses RAK4260 module.

Povided example in the Firmware directory contains ready to use example projetcs for Atmel Studio v7. - RGB LED Toggle - LoRaWAN UART Demo

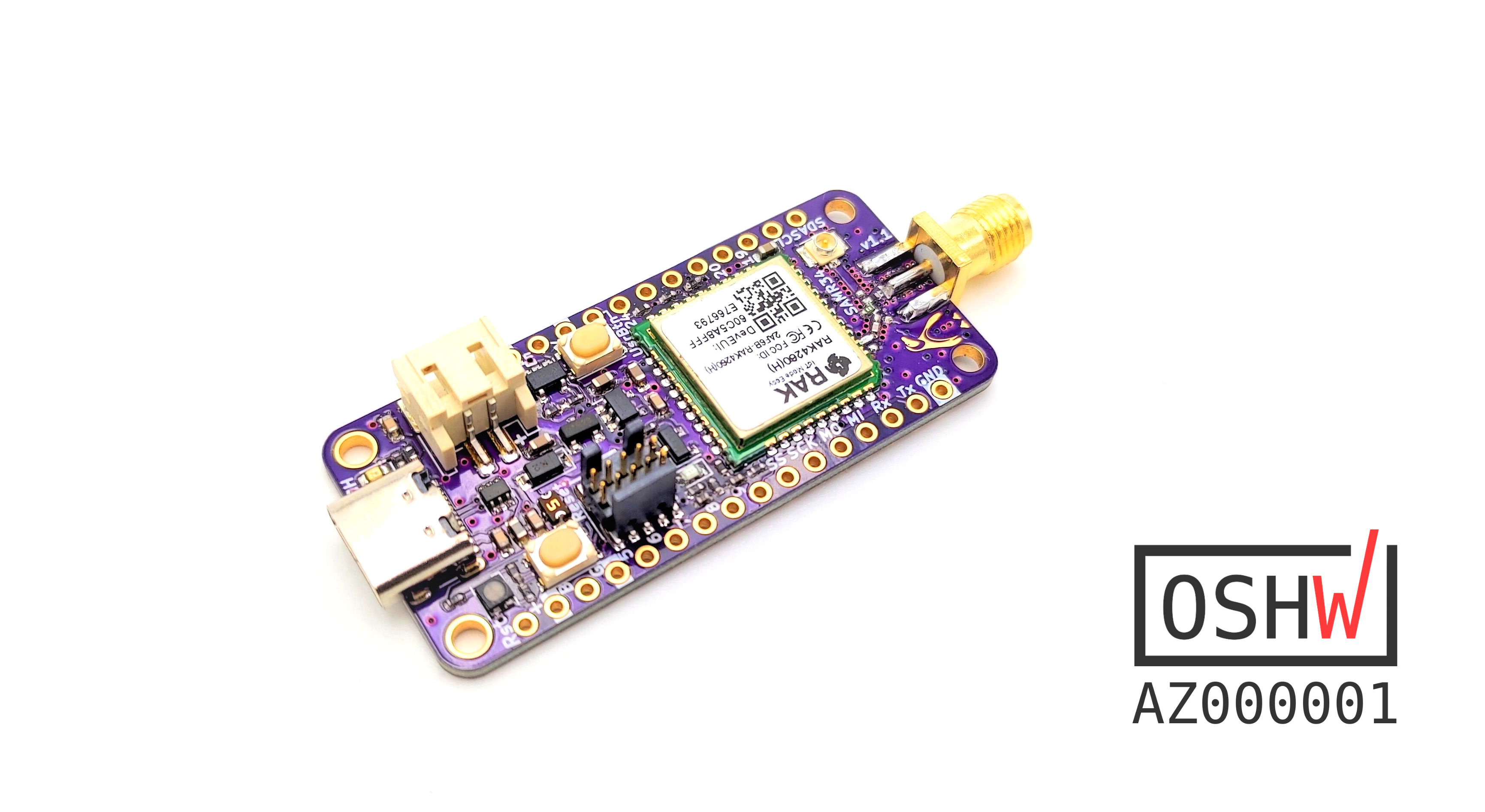

Penguino Feather RAK4260, from the project README
From the project README

Main components on the Penguino Feather RAK4260

MCP73831-2ACI-OTME6215C33MAX809STRGRAK4260NUP2202W1T2GFeather-GenericATECC608A-TNGLORAS-BW25Q16JVSS

Penguino Feather RAK4260 bill of materials (BOM)

53 components, 38 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MCP73831-2ACI-OT
MCP73831
U1
1
ME6215C33
U2
1
MAX809STRG
U3
1
RAK4260
U4
1
NUP2202W1T2G
NUP2202
U5
1
Feather-Generic
U6
1
ATECC608A-TNGLORAS-B
ATECC608A-TNGLORAS
U7
1
W25Q16JVSS
U8
1
SI2323DS-T1-E3
SI2323DS
Q1
1
U.FL-R-SMT-1
J1
1
SMA-J-P-H-ST-EM1
SMA-Edge-Mount
J2
1
TYPE-C-31-M-12
USB_C_Receptacle_USB2.0
J3
1
JST_PH
J4
1
Conn_ARM_JTAG_SWD_10
J5
1
0805L110SLYR
1A
F1
1
SKRPACE010
USR_BTN
SW1
1
SKRPACE010
RESET
SW2
1
MBR0520
D1
1
19-217/S2C-AL1M2VY/3T
CH_ORANGE
D2
1
PGB1010402KR
PGB1010402
D3
Show 18 more
QtyPartRefs
1
FC-DA1608BK-470H10
PWR_BLUE
D4
1
FM-B2020RGBA-HG
FM-B2020RGBA
D5
1
BLM18HE152SN1D
FB1
3
CL10A106MO8NQNC
10uF
C1, C2, C3
2
CC0603KRX7R9BB104
100nF
C4, C9
1
GJM1555C1H470JB01D
47pF
C5
2
DNM
C6, C7
2
CC0603KRX7R9BB103
10nF
C8, C12
1
CC0603KRX7R8BB105
1uF
C10
2
CC0402MRY5V8BB104
100nF
C11, C13
1
DNM
R1
1
RC0402JR-070RL
0R
R2
2
RC0402JR-07100KL
100K
R3, R5
5
RC0402FR-071K5L
1K5
R4, R7, R9, R10, R11
3
RC0402FR-074K7L
4K7
R6, R13, R14
2
RC0402FR-0710KL
10K
R8, R17
2
0402WGF1004TCE
1M
R12, R15
1
RC0402JR-073M6L
3M6
R16

Penguino Feather RAK4260 design files

The KiCad project lives in the azerimaker/Penguino-RAK4260 repository on GitHub; these links point at the commit this page was built from.

Penguino Feather RAK4260: common questions

How big is the Penguino Feather RAK4260 PCB?

The Penguino Feather RAK4260 measures 22.9 × 50.8 mm and is 1.6 mm thick.

How many components are on the Penguino Feather RAK4260?

53 components, from 38 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Penguino Feather RAK4260 design files?

From the azerimaker/Penguino-RAK4260 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Penguino Feather RAK4260 design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which azerimaker chose for the repository.
