FOC KING

b264·FOC_KING·source/foc.kicad_pcb

FOC KING PCB layout, top view — open source STM32 board by b264
Simulate this board

About the FOC KING PCB

FOC KING is an open source STM32 PCB design by b264, published on GitHub. It is a 4-layer board measuring 75.2 × 99.5 mm, with 238 components from 66 distinct parts.

Its main chip is the STM32F401CCU6_Blackpill, from the STM32 family. Other key parts include the TJA1051T/3/1J, BMI270, AMS1117-3.3, IRS21867S and XL1509-5.0E1. By type, the board carries 95 resistors, 75 capacitors, 19 connectors, 16 transistors, 14 ICs and 11 diodes.

It belongs with the robotics & motion and sensors designs in this gallery.

From the project

Date | Manufacturer | amount | includes | shipping & tax | price | -------- | -------- | -------- | -------- | -------- | -------- | 2024-01-17 | JLCPCB | 10 boards | All assembled excl fets and caps | YES, to EU | $241.08

Date | Manufacturer | amount | includes | shipping & tax | price | -------- | -------- | -------- | -------- | -------- | -------- | 2024-01-17 | JLCPCB | 10 boards | All assembled excl fets and caps | YES, to EU | $241.08

An open-source motor controller board based on a JLCPCB friendly VESC6 75V/300A so-called "driverless" design with individual gate drivers for all three phases. It is powered by an STM32F405 MCU and is capable of running FOC at high power and voltages.

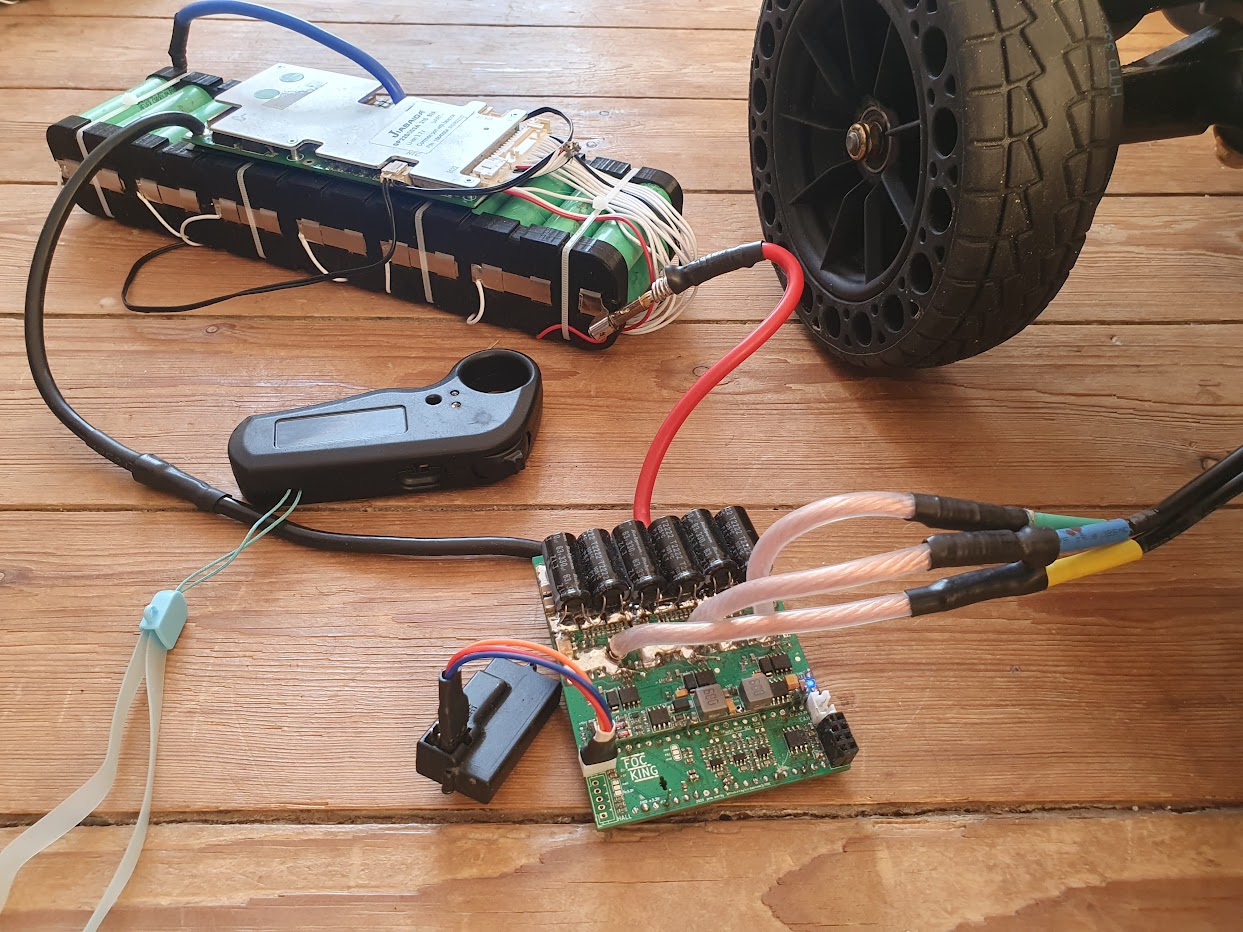

FOC KING, from the project README
From the project README

Main components on the FOC KING

TJA1051T/3/1JBMI270AMS1117-3.3IRS21867SXL1509-5.0E1TX4130L/PW2902MS8311STM32F401CCU6_BlackpillSTM32F405RGT6

FOC KING bill of materials (BOM)

238 components, 66 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TJA1051T/3/1J
U1
1
BMI270
U2
1
AMS1117-3.3
U3
3
IRS21867S
U4, U6, U7
1
XL1509-5.0E1
U5
1
TX4130L/PW2902
U8
3
MS8311
U9, U10, U11
2
STM32F401CCU6_Blackpill
U12, U13
1
STM32F405RGT6
U14
1
AO3401A
Q1
3
SS8050
Q2, Q3, Q16
12
CRST030N10N
Q4, Q5, Q6, Q7, Q8, Q9, Q10, Q11 +4
1
C115962
8MHz Crystal Resonator, X50328MSB2GI
Y1
1
CONN_01X02_MALE
Conn_01x02_Male
J1
1
CONN_01X06
Conn_01x06
J2
1
communication
J3
1
on/off
J4
1
servo
J5
1
TYPE-C-31-M-12
J6
12
SWD
P1, P2, P3, P4, P5, P6, P7, P8 +4
Show 46 more
QtyPartRefs
1
SWD
P11
2
68uH
CYA0650-68UH1, CYA0650-68UH2
2
SW_SPDT
SW1, SW4
2
SW_SPST
SW2, SW3
4
US1M
D1, D2, D4, D7
1
1N5819
D3
1
1N4148WS
D5
1
C382948
MM1W18 1W18V zener
D6
1
SS210
D8
1
C84256
RED
D9
1
C2297
GREEN
D10
1
C2290
WHT
D11
1
10N
10n
L1
7
4.7N
4.7n
C1, C40, C41, C50, C51, C59, C60
5
100P
100p
C2, C3, C12, C18, C22
15
2.2U
2.2u
C4, C7, C11, C15, C16, C19, C25, C27 +7
15
100N
100n
C5, C6, C10, C21, C34, C43, C53, C61 +7
3
C15008
100u@6.3V
C8, C13, C23
4
10U
10u
C9, C17, C24, C32
4
10U
10u
C14, C20, C28, C75
13
C381466
4.7u 100V
C26, C36, C37, C38, C39, C46, C47, C48 +5
2
10N
10n
C30, C70
1
22U
22u
C31
3
1n
C35, C44, C54
1
1u
C68
2
12P
12p
C71, C73
8
2k
R1, R2, R3, R11, R15, R17, R19, R28
3
100R
R4, R5, R85
5
5.1K
5.1k
R6, R13, R26, R86, R87
5
10K
10k
R7, R10, R50, R88, R89
2
75K
75k
R8, R9
1
470K
470k
R12
12
C23206
56k @ 75V
R14, R16, R18, R22, R23, R27, R38, R41 +4
1
C17840
82k @ 150V
R20
2
1K8
1k8
R21, R24
1
0.1R
R25
3
150R
R29, R47, R67
3
30K
30k
R30, R49, R68
18
10R
R31, R32, R43, R44, R45, R46, R51, R52 +10
3
56K
56k
R33, R92, R93
8
1k
R34, R35, R54, R55, R72, R73, R96, R97
12
4.7R
R36, R37, R39, R40, R56, R57, R59, R60 +4
3
0.25MR
0.25mR
R42, R62, R80
1
C13564
NTC 10k
R48
3
6.2K
6.2k
R53, R71, R91
1
20K
20k
R90

FOC KING design files

The KiCad project lives in the b264/FOC_KING repository on GitHub; these links point at the commit this page was built from.

FOC KING: common questions

What microcontroller does the FOC KING use?

The FOC KING is built around the STM32F401CCU6_Blackpill, from the STM32 family.

How big is the FOC KING PCB?

The FOC KING measures 75.2 × 99.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the FOC KING?

238 components, from 66 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the FOC KING design files?

From the b264/FOC_KING repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the FOC KING design in my own project?

The repository has no license, so all rights stay with b264. Use it as a reference, and ask the author before reusing the design.
