About the Msxdos2s PCB
Msxdos2s is an open source PCB design by b3rendsh, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 99.8 × 64.1 mm, with 35 components from 18 distinct parts.
Other key parts include the SST39SF010A, 82C55A, 74HCT32, 74HCT04 and 74HCT138. By type, the board carries 10 transformers, 6 capacitors, 5 ICs, 5 resistors, 3 connectors and 3 jumpers.
It belongs with the retro computing designs in this gallery.
From the project

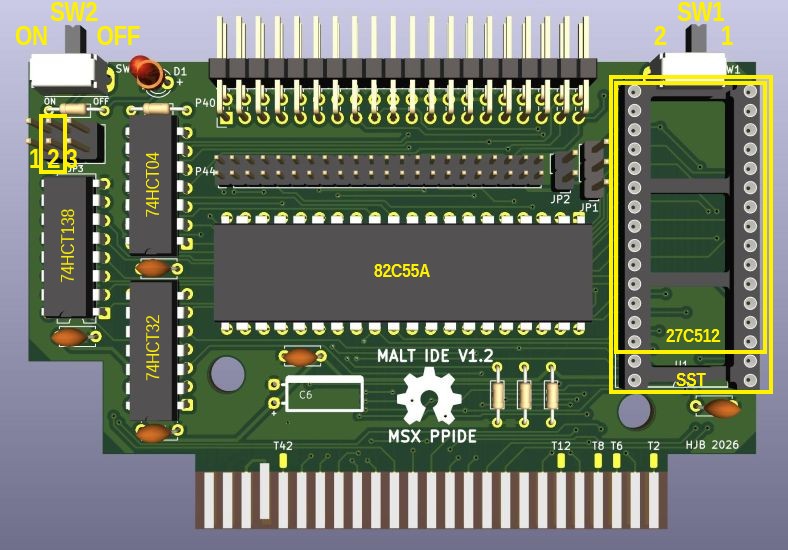

MSXDOS smaller 16K/32K rom with IDE interface drivers and enhancements
MSX 8255 PPI IDE board that is based on the Eurocard Bus DiskIO V3 PPIDE design for retrocomputers.
It uses the same 8255 PPI chip as the MSX BEER interface but the IDE control signals are implemented in a more robust way.
Interface for IDE harddisks and CF cards (with IDE adapter) Flash the disk ROM in-system on MSX Selectable I/O address MSX-DOS 1 and 2 disk system driver (ATA master disk only) * RomWBW CP/M PPIDE driver that supports ATA, ATAPI and master/slave drives

Main components on the Msxdos2s
Msxdos2s bill of materials (BOM)
35 components, 18 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SST39SF010A SST39SF0X0 | DIP-32_W15.24mm_Socket | U1 |
| 1 | 82C55A | DIP-40_W15.24mm | U2 |
| 1 | 74HCT32 | DIP-14_W7.62mm | U3 |
| 1 | 74HCT04 | DIP-14_W7.62mm | U4 |
| 1 | 74HCT138 | DIP-16_W7.62mm | U5 |
| 1 | MSX_SLOT_CON | Cart_Konami | CN1 |
| 1 | PINHD-02X20 PINHD-02x20 | PinHeader_2x20_P2.54mm_Horizontal | P40 |
| 1 | CONN_02X22 Conn_02x22 | PinHeader_2x22_P2.00mm_Vertical | P44 |
| 1 | PIN_1X3 PIN_1x3 | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 1 | CONN_01X02 Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | JP2 |
| 1 | CONN_02X03 Conn_02x03 | PinHeader_2x03_P2.54mm_Vertical | JP3 |
| 2 | PIN_1X3 PIN_1x3 | SW_Slide_SPDT_Angled_CK_OS102011MA1Q | SW1, SW2 |
| 10 | TestPoint | SolderWirePad_1x01_SMD_1x2mm | T1, T2, T3, T6, T7, T8, T9, T12 +2 |
| 1 | + | LED_D3.0mm | D1 |
| 5 | 100NF 100nF | C_Disc_D4.7mm_W2.5mm_P5.00mm | C1, C2, C3, C4, C5 |
| 1 | 100UF 100uF | CP_lying | C6 |
| 1 | 330 | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R1 |
| 4 | 10K | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R2, R3, R4, R5 |
Msxdos2s design files
The KiCad project lives in the b3rendsh/msxdos2s repository on GitHub; these links point at the commit this page was built from.
Msxdos2s: common questions
How big is the Msxdos2s PCB?
The Msxdos2s measures 99.8 × 64.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Msxdos2s?
35 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Msxdos2s design files?
From the b3rendsh/msxdos2s repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Msxdos2s design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
