Wsen tids breakout board
About the Wsen tids breakout board
Wsen tids breakout board is an open source PCB design by B48D81EFCC, published on GitHub. It is a 2-layer board measuring 17.1 × 7.9 mm, with 6 components from 4 distinct parts.
Other key parts include the 2521020222501. By type, the board carries 3 resistors, 1 IC, 1 connector and 1 capacitor.
It belongs with the sensors and dev boards & breakouts designs in this gallery.
From the project

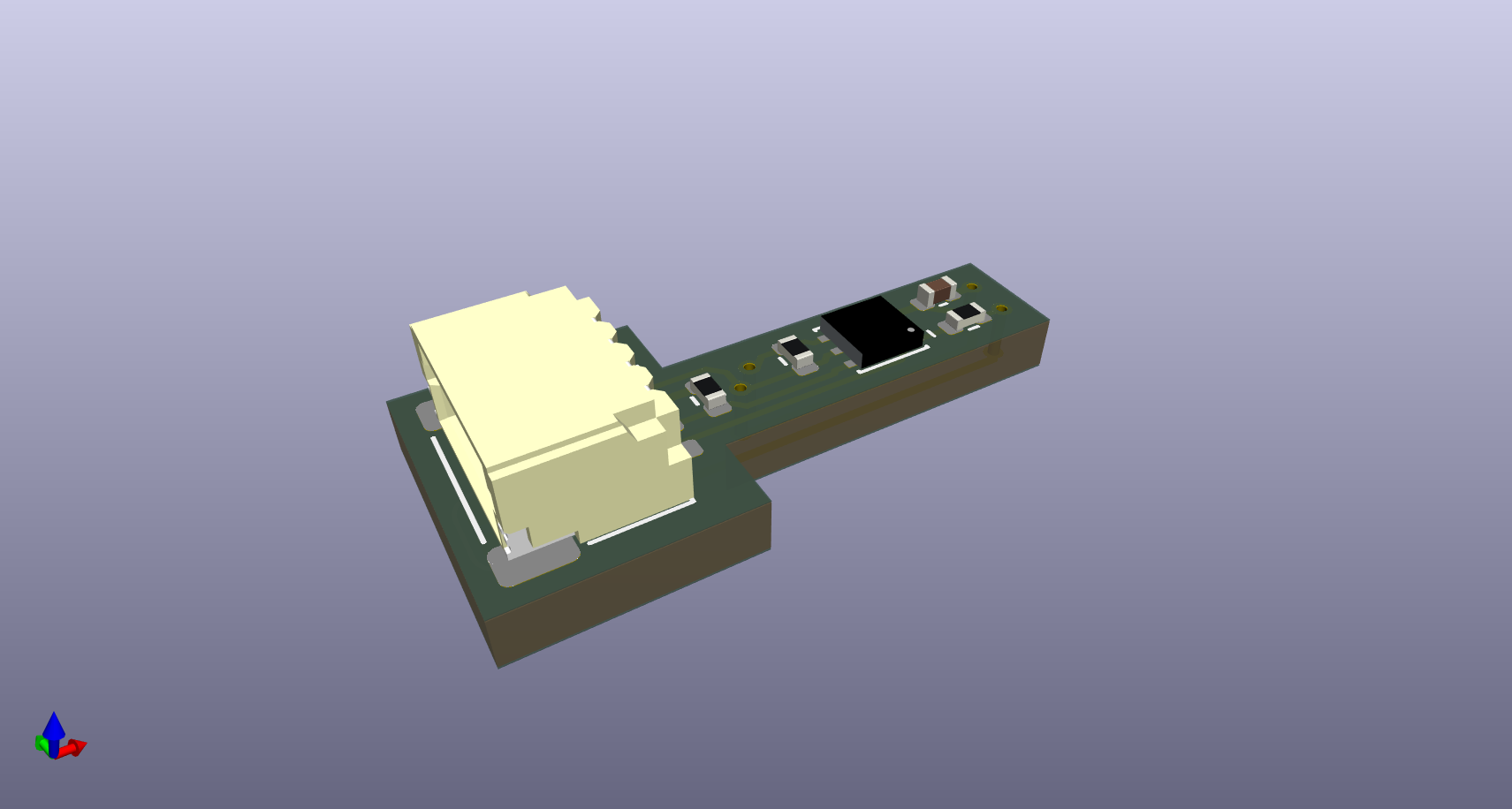

Breakout Board PCB for Würth Elektronik WSEN-TIDS Temperature Sensor
The pinout layout is widely used across different vendors of breakout boards with JST SH connector, allowing to use multiple different sensors on one bus more easily. Although the pin layout is (often) the same, each vendor uses their own brand names (e.g: STEMMA, μŠup)
Main components on the Wsen tids breakout board
Wsen tids breakout board bill of materials (BOM)
6 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 2521020222501 Wurth Elektronik | U_Wurth_WSEN-TIDS_2521020222501 | U1 |
| 1 | Conn_01x04 | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J1 |
| 1 | C | C_0402_1005Metric | C1 |
| 3 | R | R_0402_1005Metric | R1, R2, R3 |
Wsen tids breakout board design files
The KiCad project lives in the B48D81EFCC/wsen-tids-breakout-board-pcb repository on GitHub; these links point at the commit this page was built from.
Wsen tids breakout board: common questions
How big is the Wsen tids breakout board?
The Wsen tids breakout board measures 17.1 × 7.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Wsen tids breakout board?
6 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Wsen tids breakout board design files?
From the B48D81EFCC/wsen-tids-breakout-board-pcb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Wsen tids breakout board design in my own project?
The repository has no license, so all rights stay with B48D81EFCC. Use it as a reference, and ask the author before reusing the design.
