Din-6-breadboard

baldengineer·Arduino-1541·kicad/din-6-breadboard/din-6-breadboard.kicad_pcb

Din-6-breadboard PCB layout, top view — open source board by baldengineer

About the Din-6-breadboard PCB

Din-6-breadboard is an open source PCB design by baldengineer, published on GitHub under the MIT license. It is a 2-layer board measuring 40.6 × 19.1 mm, with 23 components from 8 distinct parts.

By type, the board carries 12 resistors, 6 connectors, 3 transistors and 2 test points.

It belongs with the retro computing and dev boards & breakouts designs in this gallery.

From the project

Interact with a Commodore 1541 from an Arduino

Contains level shifter to communicate between 3v3 and 5v Arduino boards.

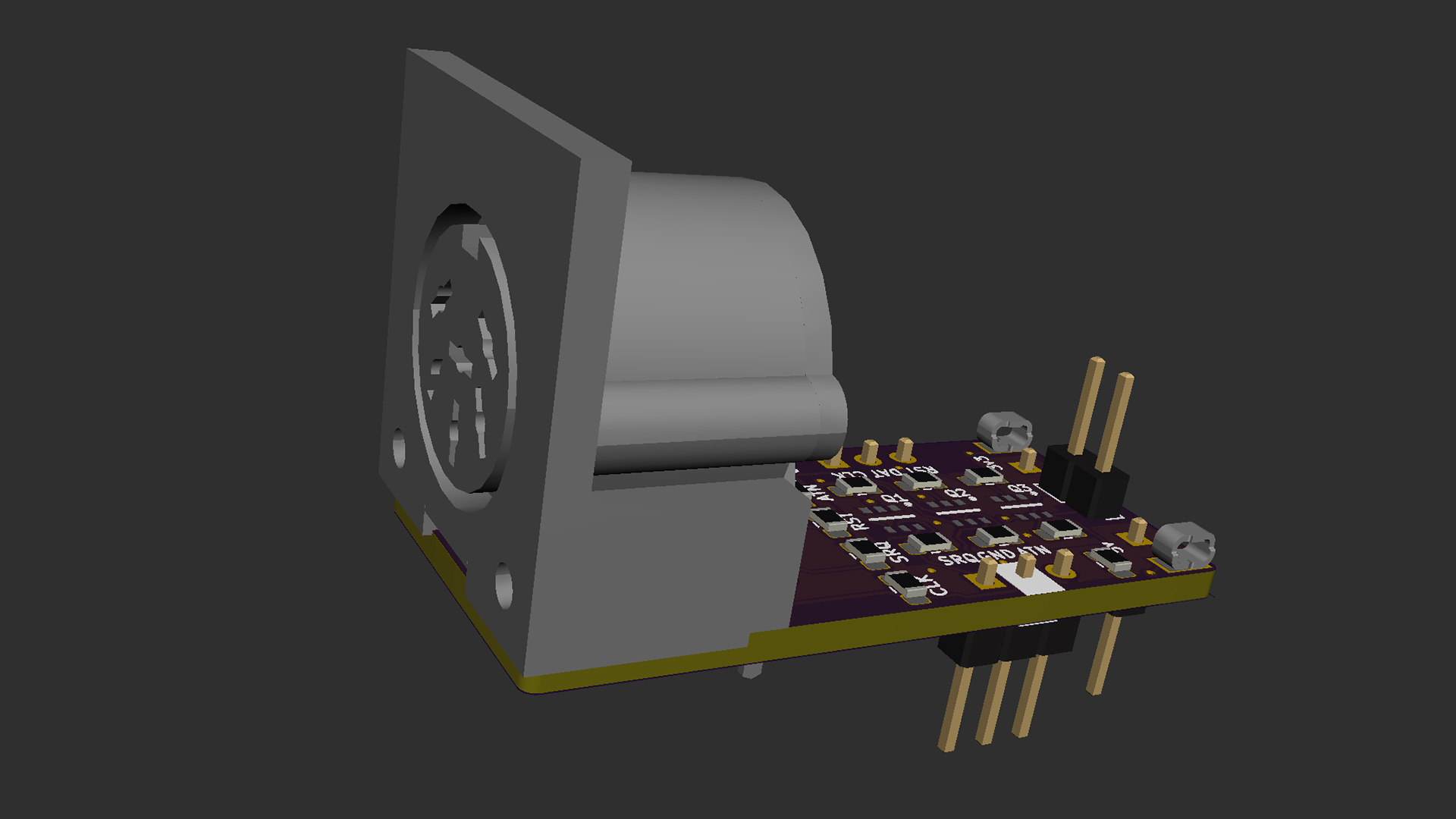

Din-6-breadboard, from the project README
From the project README

Din-6-breadboard bill of materials (BOM)

23 components, 8 distinct parts.

QtyPartRefs
3
FDC6301N
Q1, Q2, Q3
2
Conn_01x03
J1, J2
1
Conn_01x02
J3
1
IN
J4
1
3v3
J5
1
5v
J6
2
GND
TP1, TP2
12
4k7
R1, R2, R3, R4, R5, R6, R7, R8 +4

Din-6-breadboard design files

The KiCad project lives in the baldengineer/Arduino-1541 repository on GitHub; these links point at the commit this page was built from.

Din-6-breadboard: common questions

How big is the Din-6-breadboard PCB?

The Din-6-breadboard measures 40.6 × 19.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Din-6-breadboard?

23 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Din-6-breadboard design files?

From the baldengineer/Arduino-1541 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Din-6-breadboard design in my own project?

Yes, under the terms of its MIT license, which baldengineer chose for the repository.
