Stream-Deck-PCB-old

banku107·Stream-Deck-PCB-old·hardware/stream-deck.kicad_pcb

Stream-Deck-PCB-old layout, top view — open source RP2040/RP2350 board by banku107

About the Stream-Deck-PCB-old

Stream-Deck-PCB-old is an open source RP2040/RP2350 PCB design by banku107, published on GitHub. It is a 2-layer board measuring 63 × 52.5 mm, with 13 components from 7 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. By type, the board carries 4 switches, 4 diodes, 4 resistors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

Stream Deck PCB Custom DIY

A small 4-key USB macro pad, like a mini Elgato Stream Deck, built around a Raspberry Pi Pico. This was my first PCB, designed in KiCad.

- 4 MX-style mechanical keys in a 2×2 layout - 1 LED and 1 330 Ω resistor per key - Raspberry Pi Pico, which also connects to the computer over USB - 2-layer board with a ground fill

Upload fabrication/stream-deck-gerbers.zip to JLCPCB (or any PCB maker). The parts list is in bom.csv.

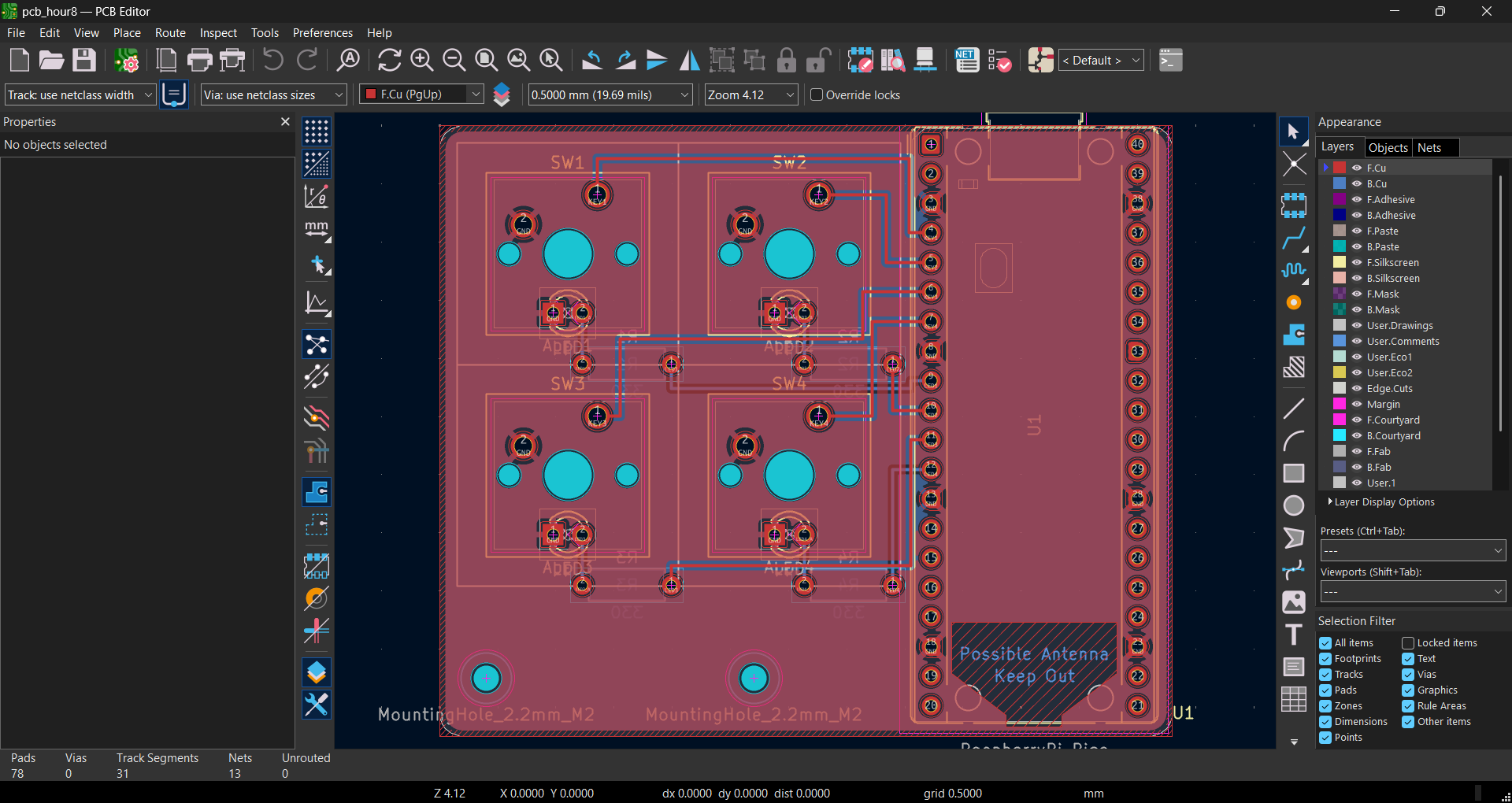

Stream-Deck-PCB-old, from the project README
From the project README

Main components on the Stream-Deck-PCB-old

RaspberryPi_Pico

Stream-Deck-PCB-old bill of materials (BOM)

13 components, 7 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RaspberryPi_Pico
U1
1
App 1
SW1
1
App 2
SW2
1
App 3
SW3
1
App 4
SW4
4
LED
D1, D2, D3, D4
4
330
R1, R2, R3, R4

Stream-Deck-PCB-old design files

The KiCad project lives in the banku107/Stream-Deck-PCB-old repository on GitHub; these links point at the commit this page was built from.

Stream-Deck-PCB-old: common questions

What microcontroller does the Stream-Deck-PCB-old use?

The Stream-Deck-PCB-old is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Stream-Deck-PCB-old?

The Stream-Deck-PCB-old measures 63 × 52.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stream-Deck-PCB-old?

13 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Stream-Deck-PCB-old design files?

From the banku107/Stream-Deck-PCB-old repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Stream-Deck-PCB-old design in my own project?

The repository has no license, so all rights stay with banku107. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Stream-Deck-PCB-old without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
