Amp.Cell

barajasalfredo13·32.Channel.Amp·1.KiCADFiles/Amp.Cell/Amp.Cell.kicad_pcb

Amp.Cell PCB layout, top view — open source board by barajasalfredo13

About the Amp.Cell PCB

Amp.Cell is an open source PCB design by barajasalfredo13, published on GitHub. It is a 4-layer board measuring 32.2 × 16.5 mm, with 15 components from 8 distinct parts.

By type, the board carries 4 diodes, 4 capacitors, 4 resistors, 2 transistors and 1 connector.

It belongs with the audio designs in this gallery.

From the project

This is a PCB design for an attempt at making a 32 Channel Amplifier circuit for fast rising peaks at low energy levels using a CREMAT amplifier board as a base.

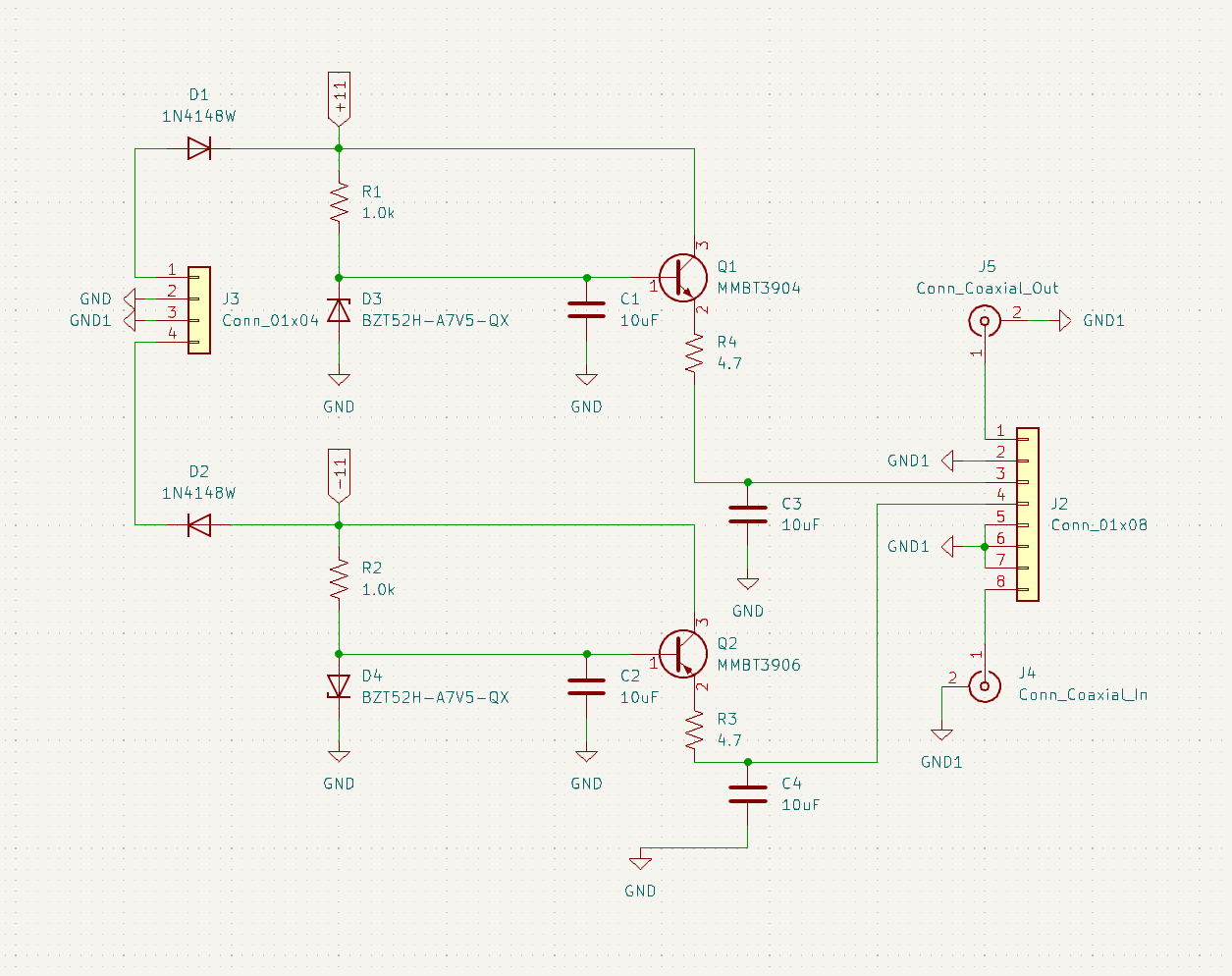

Amp.Cell, from the project README
From the project README

Amp.Cell bill of materials (BOM)

15 components, 8 distinct parts.

QtyPartRefs
1
MMBT3904
Q1
1
MMBT3906
Q2
1
Conn_01x08
J4
2
1N4148W
D1, D2
2
BZV55B7V5
D3, D4
4
10uF
C1, C2, C3, C4
2
1.0k
R1, R2
2
4.7
R3, R4

Amp.Cell design files

The KiCad project lives in the barajasalfredo13/32.Channel.Amp repository on GitHub; these links point at the commit this page was built from.

Amp.Cell: common questions

How big is the Amp.Cell PCB?

The Amp.Cell measures 32.2 × 16.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Amp.Cell?

15 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Amp.Cell design files?

From the barajasalfredo13/32.Channel.Amp repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Amp.Cell design in my own project?

The repository has no license, so all rights stay with barajasalfredo13. Use it as a reference, and ask the author before reusing the design.
