TSC board layout, top view — open source STM32 board by bartkepl

About the TSC board

TSC board is an open source STM32 PCB design by bartkepl, published on GitHub under the MIT license. It is a 4-layer board measuring 100 × 100 mm, with 408 components from 23 distinct parts.

Its main chip is the STM32C011F4P6, from the STM32 family. Other key parts include the TS3021ILT, NCP51460SN33T1G, TEA1-0505, GAQY212GS and ADuM1400BRW. By type, the board carries 205 resistors, 85 ICs, 71 capacitors, 29 inductors and 18 diodes.

From the project

TimeStamp Counter

- Schematic and PCB layout done (4-layer, 100 × 100 mm), production files generated. - Design review completed; DRC/ERC clean (remaining items reviewed and excluded as by-design). - Hand assembly (2 fiducials on F.Cu for stencil alignment); LM4040 references (U15/U32/U46/U60) are DNP in this revision.

Production outputs: schematic PDF · PCB PDF · interactive BOM · gerbers

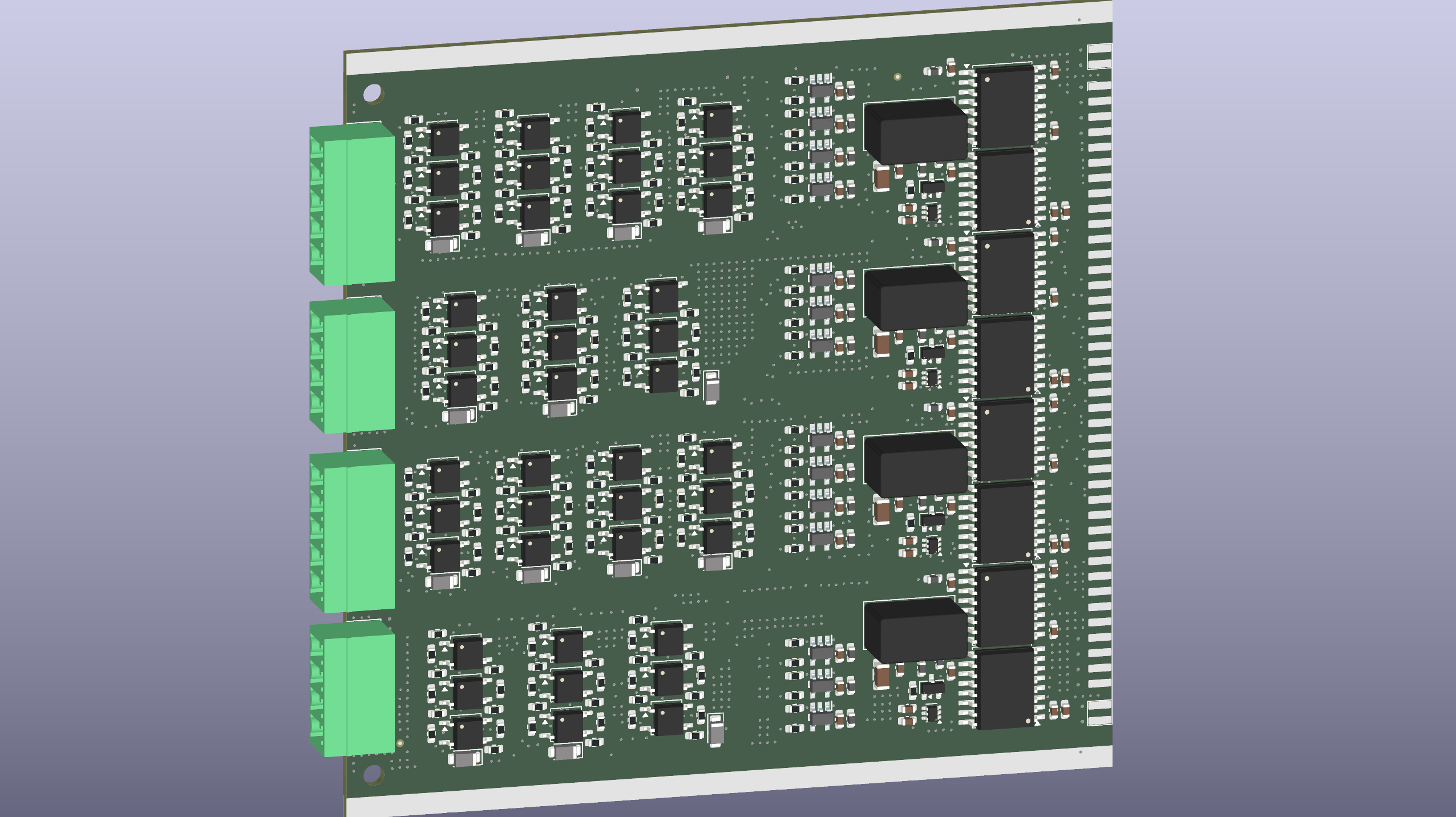

TSC board, from the project README
From the project README

Main components on the TSC board

TS3021ILTNCP51460SN33T1GTEA1-0505GAQY212GSADuM1400BRWLM4040D33FTADAC7311IDCKADuM1300BRWAPS6404L-3SQRSTM32C011F4P6

TSC board bill of materials (BOM)

408 components, 23 distinct parts.

QtyPartRefs
14
TS3021ILT
IC1, IC2, IC3, IC4, IC5, IC6, IC7, IC8 +6
4
NCP51460SN33T1G
IC15, IC16, IC17, IC18
4
TEA1-0505
U1, U18, U35, U49
42
GAQY212GS
U2, U3, U4, U5, U6, U7, U8, U9 +34
2
ADuM1400BRW
ADuM1400xRW
U10, U27
4
LM4040D33FTA
U15, U32, U46, U60
4
DAC7311IDCK
DAC7311xDCK
U16, U33, U47, U61
6
ADuM1300BRW
ADuM1300xRW
U17, U34, U42, U48, U56, U62
1
APS6404L-3SQR
APS6404L-3SQRx-SN
U63
4
STM32C011F4P6
STM32C011F4Px
U64, U65, U66, U67
14
SMF5.0CA
D1, D2, D3, D4, D5, D6, D7, D8 +6
4
1N4148
D
D15, D16, D17, D18
29
WLBD1608HCU101TL
100R @ 100MHz
FB2, FB3, FB5, FB6, FB7, FB8, FB9, FB10 +21
51
GRM188R71H104KA93D
100n
C1, C4, C5, C6, C8, C9, C10, C11 +43
4
CL31B106KBHNNNE
10u
C2, C18, C34, C49
12
GRM1885C1H103JA01J
10n
C3, C7, C14, C19, C23, C30, C35, C39 +4
4
VJ0603A102JXACW1BC
1n
C16, C32, C47, C62
14
50k
R1, R12, R31, R50, R58, R69, R88, R107 +6
14
ERA3AEB2212V
1k
R2, R17, R39, R51, R59, R74, R96, R108 +6
14
100
R3, R18, R45, R52, R60, R75, R102, R109 +6
Show 3 more
QtyPartRefs
42
470
R4, R5, R6, R7, R19, R20, R21, R22 +34
117
CRCW060310K0FKTABC
10k
R8, R9, R10, R11, R13, R14, R15, R16 +109
4
0603SAF3300T5E
330
R57, R114, R157, R200

TSC board design files

The KiCad project lives in the bartkepl/TSC_board repository on GitHub; these links point at the commit this page was built from.

TSC board: common questions

What microcontroller does the TSC board use?

The TSC board is built around the STM32C011F4P6, from the STM32 family.

How big is the TSC board?

The TSC board measures 100 × 100 mm, has 4 copper layers and is 1.5862 mm thick.

How many components are on the TSC board?

408 components, from 23 distinct parts. The full bill of materials is listed on this page.

Where can I download the TSC board design files?

From the bartkepl/TSC_board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the TSC board design in my own project?

Yes, under the terms of its MIT license, which bartkepl chose for the repository.

Can I test firmware for the TSC board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
