Amd flash programmer

bazsimarkus·amd-flash-programmer·schematic/amd-flash-programmer.kicad_pcb

Amd flash programmer PCB layout, top view — open source AVR/Arduino board by bazsimarkus

About the Amd flash programmer PCB

Amd flash programmer is an open source AVR/Arduino PCB design by bazsimarkus, published on GitHub. It is a 2-layer board measuring 60 × 90 mm, with 15 components from 9 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. Other key parts include the AM29F040B-90PC and 74HC595. By type, the board carries 5 resistors, 4 capacitors, 3 ICs, 2 diodes and 1 module.

It belongs with the usb & debug tools and retro computing designs in this gallery.

From the project

A simple Arduino-based flash memory programmer for AM29F010 and AM29F040B series flash chips.

- Overview - Features - Hardware - Schematic - How It Works - Bill of Materials - Pin Mapping - Supported Chips - PCB - Firmware - Architecture - Serial Protocol - Uploading the Firmware - Client Software - Installation - Usage - How to Use - Connect - Read Chip ID - Read Memory - Erase Chip - Write File - Verify - Performance - Known Limitations & Future Ideas - Personal Notes - Inspirations & Credits

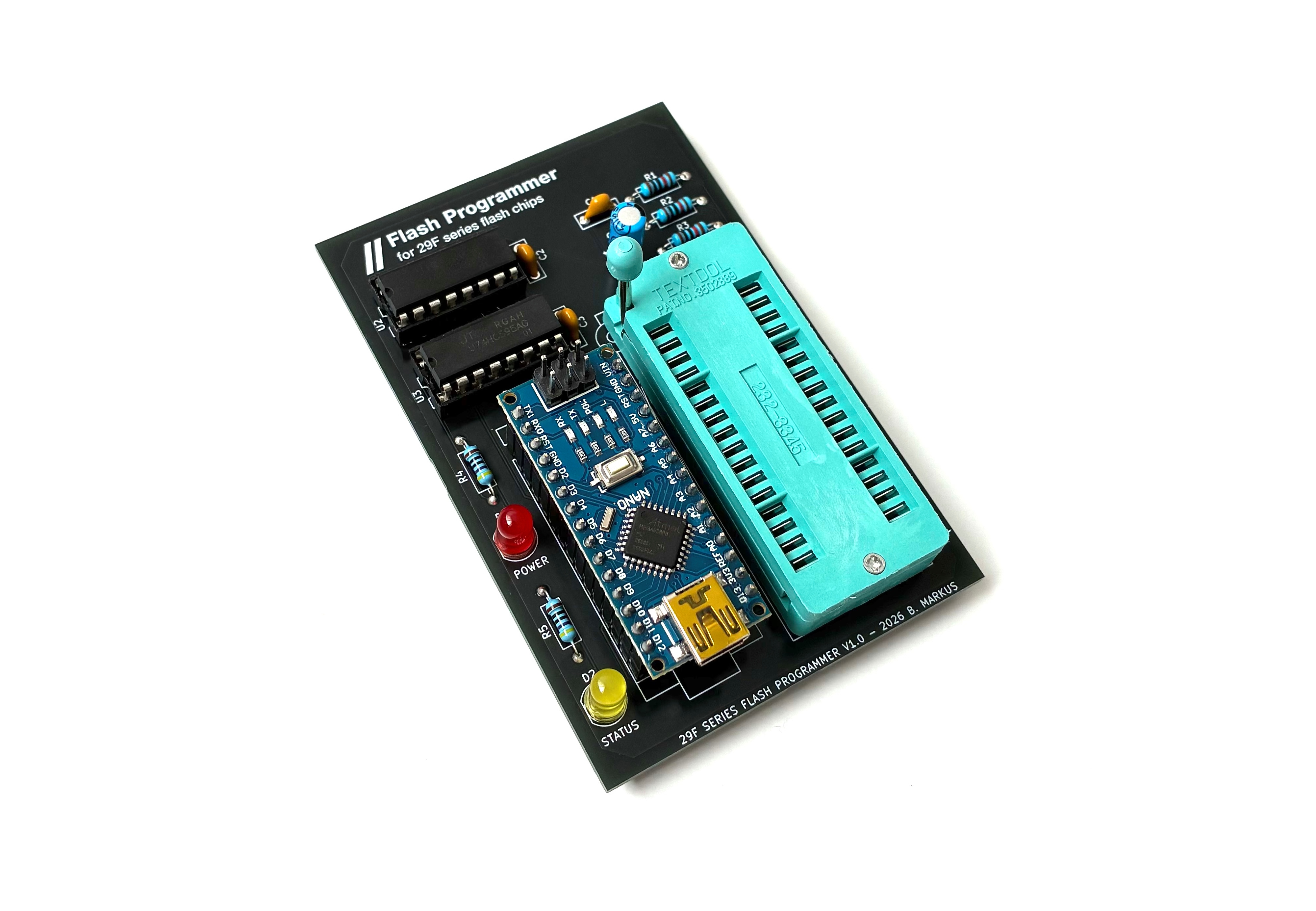

Amd flash programmer, from the project README
From the project README

Main components on the Amd flash programmer

AM29F040B-90PC74HC595Arduino_Nano_v3.x

Amd flash programmer bill of materials (BOM)

15 components, 9 distinct parts.

QtyPartRefs
1
AM29F040B-90PC
U1
2
74HC595
U2, U3
1
Arduino_Nano_v3.x
A1
1
LED 5mm RED
D1
1
LED 5mm YELLOW
D2
3
100nF
C1, C2, C3
1
47uF
C4
3
10k
R1, R2, R3
2
470R
R4, R5

Amd flash programmer design files

The KiCad project lives in the bazsimarkus/amd-flash-programmer repository on GitHub; these links point at the commit this page was built from.

Amd flash programmer: common questions

What microcontroller does the Amd flash programmer use?

The Amd flash programmer is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the Amd flash programmer PCB?

The Amd flash programmer measures 60 × 90 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Amd flash programmer?

15 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Amd flash programmer design files?

From the bazsimarkus/amd-flash-programmer repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Amd flash programmer design in my own project?

The repository has no license, so all rights stay with bazsimarkus. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Amd flash programmer without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
