Voctoknopf1

benjaminwand·voctoknopf1·PCB/voctoknopf1.kicad_pcb

Voctoknopf1 PCB layout, top view — open source board by benjaminwand

About the Voctoknopf1 PCB

Voctoknopf1 is an open source PCB design by benjaminwand, published on GitHub. It is a 2-layer board measuring 161.3 × 88.5 mm, with 44 components from 6 distinct parts.

Other key parts include the MCP23017 and CPC1017N. By type, the board carries 27 resistors, 12 switches, 3 ICs and 2 diodes.

It belongs with the dev boards & breakouts and keyboards designs in this gallery.

From the project

hardware UI for voctomix

This is a hardware-interface vor voctomix, developed late 2017 and tried in a few talks at 34c3.

Custom PCB Cherry MX switches with custom 3D-printed keycaps 3D-printed top and bottom enclosure parts “sandwiched” around the PCB Arduino Nano which sends commands to a computer via USB Computer relays the commands to the voctomix software via socat is supposed to learn to speak TPC on its own (was not implemented on 34c3)

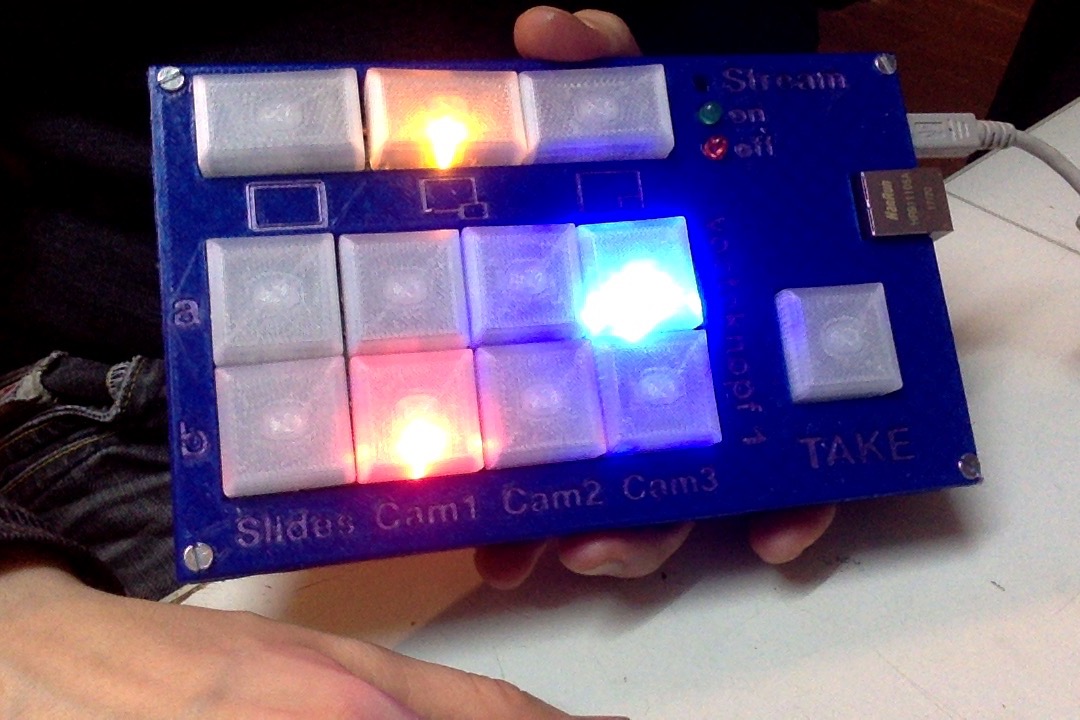

Voctoknopf1, from the project README
From the project README

Main components on the Voctoknopf1

MCP23017CPC1017N

Voctoknopf1 bill of materials (BOM)

44 components, 6 distinct parts.

QtyPartRefs
2
MCP23017
U1, U2
1
CPC1017N
U3
12
MX_D
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +4
2
LED
D1, D2
14
220
R1, R3, R5, R7, R8, R10, R12, R14 +6
13
10 k
R2, R4, R6, R9, R11, R13, R15, R17 +5

Voctoknopf1 design files

The KiCad project lives in the benjaminwand/voctoknopf1 repository on GitHub; these links point at the commit this page was built from.

Voctoknopf1: common questions

How big is the Voctoknopf1 PCB?

The Voctoknopf1 measures 161.3 × 88.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Voctoknopf1?

44 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Voctoknopf1 design files?

From the benjaminwand/voctoknopf1 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Voctoknopf1 design in my own project?

The repository has no license, so all rights stay with benjaminwand. Use it as a reference, and ask the author before reusing the design.
