Vault-Security-System PCB layout, top view — open source AVR/Arduino board by bill-chamal

About the Vault-Security-System PCB

Vault-Security-System is an open source AVR/Arduino PCB design by bill-chamal, published on GitHub under the MIT license. It is a 2-layer board measuring 104 × 54 mm, with 23 components from 19 distinct parts.

Its main chip is the ATmega328-P, from the AVR/Arduino family. Other key parts include the TSIC206-TO92 and LM317_SOT-223. By type, the board carries 6 capacitors, 5 resistors, 4 diodes, 3 ICs, 3 connectors and 1 crystal.

It belongs with the sensors designs in this gallery.

From the project

The Safe Security System monitors for changes in temperature and light while a safe is closed. If a minimum threshold is exceeded, the system notifies the owner only when the safe is opened normally.

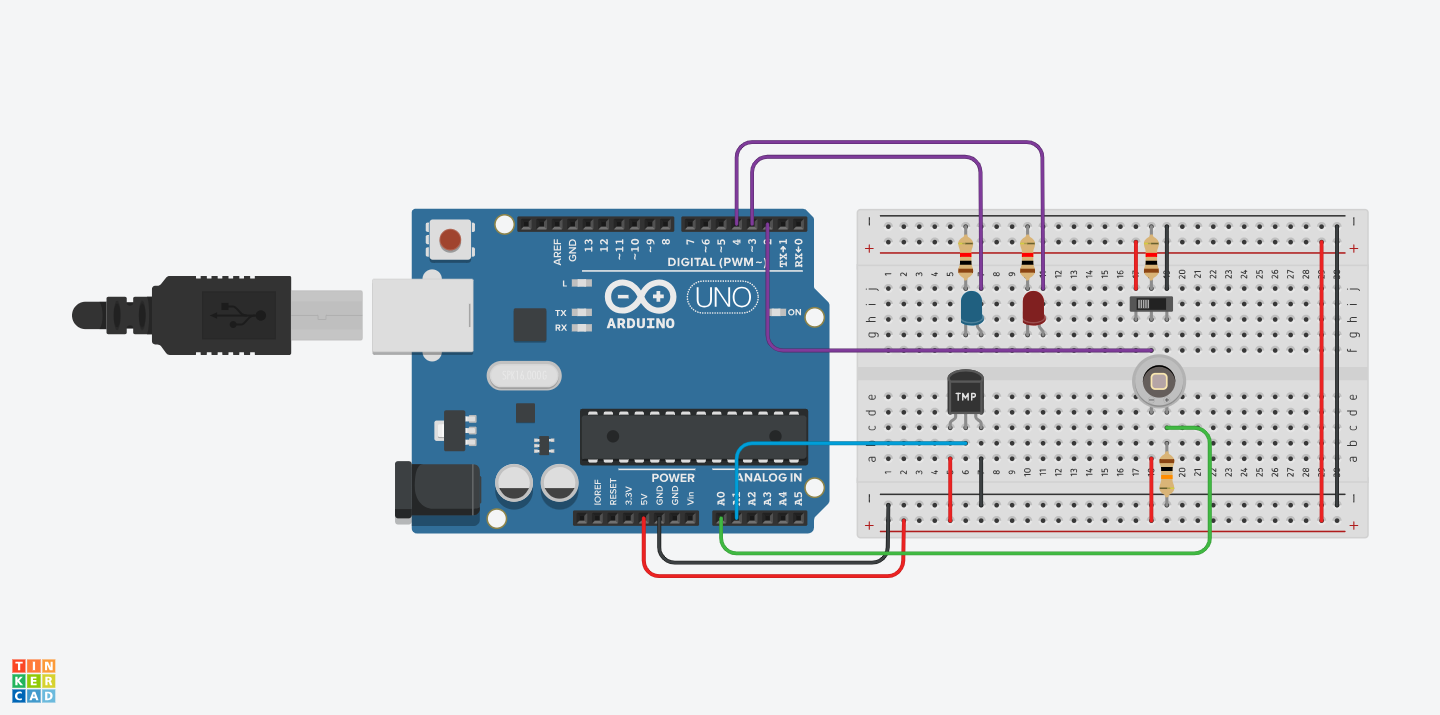

Vault-Security-System, from the project README
From the project README

Main components on the Vault-Security-System

ATmega328-PTSIC206-TO92LM317_SOT-223

Vault-Security-System bill of materials (BOM)

23 components, 19 distinct parts.

QtyPartRefs
1
ATmega328-P
U1
1
TSIC206-TO92
U2
1
LM317_SOT-223
U3
1
16MHz
Y1
1
Conn_02x03_Odd_Even
J1
1
Barrel_Jack_Switch
J2
1
VAULT_PIN
J3
1
100mA
F1
1
D
D1
1
LIGHT_LED
D2
1
TMP_LED
D3
1
D_Photo
D4
1
100nF
C1
1
100nF
C2
2
22pF
C3, C4
1
0.22uF
C5
1
.22uF
C6
3
10K
R1, R4, R5
2
1K
R2, R3

Vault-Security-System design files

The KiCad project lives in the bill-chamal/Vault-Security-System repository on GitHub; these links point at the commit this page was built from.

Vault-Security-System: common questions

What microcontroller does the Vault-Security-System use?

The Vault-Security-System is built around the ATmega328-P, from the AVR/Arduino family.

How big is the Vault-Security-System PCB?

The Vault-Security-System measures 104 × 54 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Vault-Security-System?

23 components, from 19 distinct parts. The full bill of materials is listed on this page.

Where can I download the Vault-Security-System design files?

From the bill-chamal/Vault-Security-System repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Vault-Security-System design in my own project?

Yes, under the terms of its MIT license, which bill-chamal chose for the repository.

Can I test firmware for the Vault-Security-System without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
