DRV8662-breakout
About the DRV8662-breakout
DRV8662-breakout is an open source PCB design by BitlinkLabs, published on GitHub. It is a 2-layer board measuring 40 × 36 mm, with 29 components from 16 distinct parts.
Other key parts include the C181554. By type, the board carries 14 resistors, 9 capacitors, 2 connectors, 1 IC, 1 switch and 1 diode.
It belongs with the dev boards & breakouts and robotics & motion designs in this gallery, and the repository also holds 1 earlier revision of it.
From the project

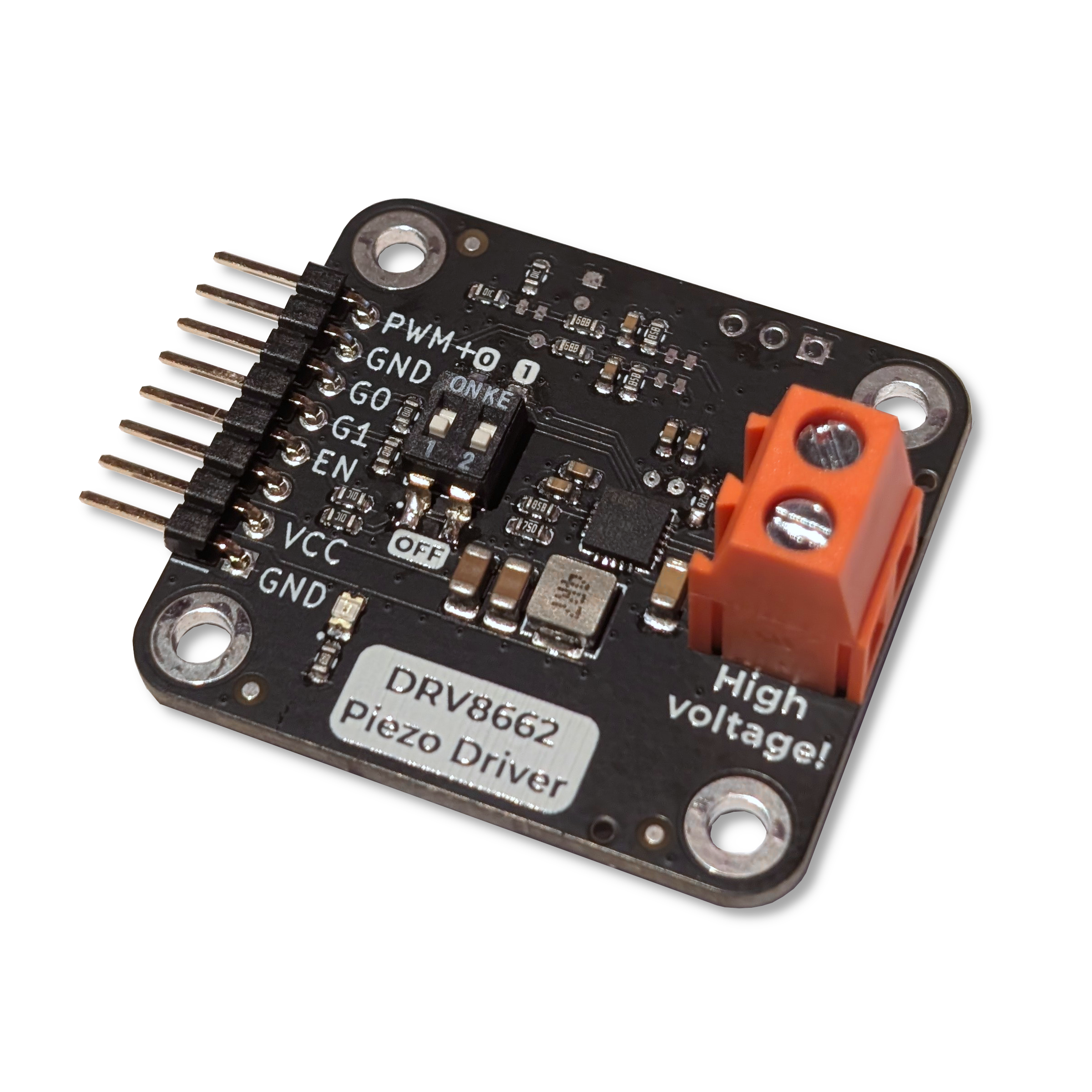

At the output you can connect a piezo actuator for haptic feedback or valves & pumps. The output voltage is an AC Waveform with an adjustable Peak-to-Peak voltage.
Main components on the DRV8662-breakout
DRV8662-breakout bill of materials (BOM)
29 components, 16 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C181554 DRV8662 | Texas_S-PVQFN-N20_EP2.7x2.7mm_ThermalVias | U1 |
| 1 | CONN_01X08 Conn_IO | PinHeader_1x08_P2.54mm_Horizontal_withSmdPads | J1 |
| 1 | C430603 Conn_Screw | DB128L-5.08-2P | J2 |
| 1 | C6709488 SW_Gain | SW_DIP_x02_P2.54_W5.08_C6709488 | SW1 |
| 1 | LED_Small | LED_0805_2012Metric | D1 |
| 1 | C167208 4.7uH | Inductor_FXL0420-4R7-M | L1 |
| 6 | C14663 100nF | C_0603_1608Metric | C1, C2, C5, C6, C7, C8 |
| 1 | C346235 100nF | C_1206_3216Metric | C3 |
| 2 | C13585 10uF | C_1206_3216Metric | C9, C10 |
| 4 | C25804 10k | R_0603_1608Metric | R1, R6, R7, R16 |
| 1 | C862806 6.98k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2 |
| 1 | C185318 590k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3 |
| 3 | C23234 7.5k | R_0603_1608Metric | R4, R10, R11 |
| 2 | C23046 4.99k | R_0603_1608Metric | R5, R9 |
| 2 | 100K 100k | R_0603_1608Metric | R14, R15 |
| 1 | 1k | R_0603_1608Metric | R19 |
DRV8662-breakout design files
The KiCad project lives in the BitlinkLabs/DRV8662-breakout repository on GitHub; these links point at the commit this page was built from.
DRV8662-breakout: common questions
How big is the DRV8662-breakout?
The DRV8662-breakout measures 40 × 36 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the DRV8662-breakout?
29 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the DRV8662-breakout design files?
From the BitlinkLabs/DRV8662-breakout repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the DRV8662-breakout design in my own project?
The repository has no license, so all rights stay with BitlinkLabs. Use it as a reference, and ask the author before reusing the design.
