CorboIron PCB layout, top view — open source AVR/Arduino board by bjohan

About the CorboIron PCB

CorboIron is an open source AVR/Arduino PCB design by bjohan, published on GitHub. It is a 2-layer board measuring 78.7 × 99.1 mm, with 101 components from 26 distinct parts.

Its main chip is the Arduino_nano, from the AVR/Arduino family. Other key parts include the LM324 and 7805. By type, the board carries 51 resistors, 14 diodes, 11 connectors, 10 capacitors, 5 ICs and 4 transistors.

From the project

Software for solder iron using weller RT-tips

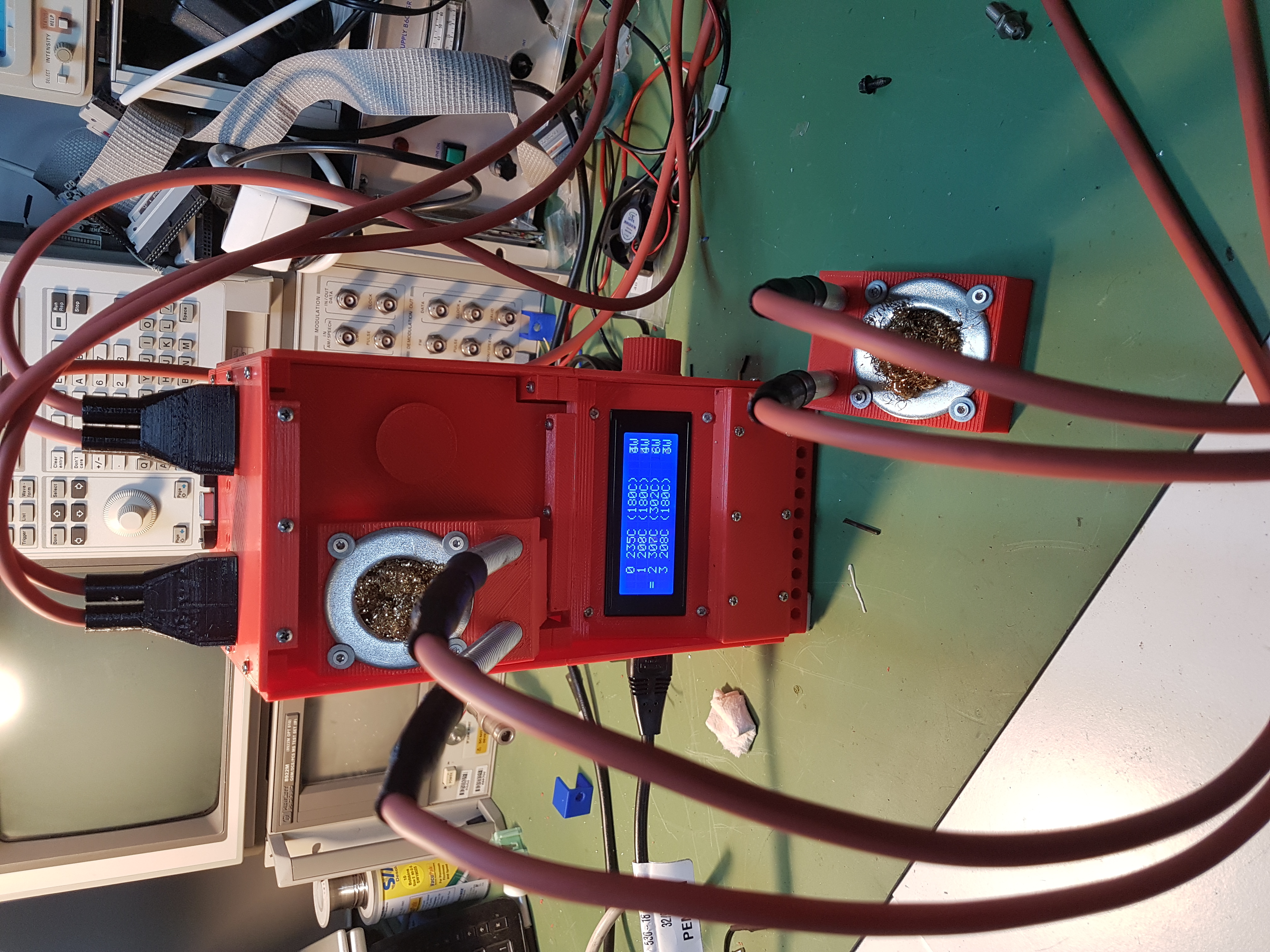

CorboIron, from the project README
From the project README

Main components on the CorboIron

LM3247805

CorboIron bill of materials (BOM)

101 components, 26 distinct parts.

QtyPartRefs
4
LM324
U1, U2, U3, U4
1
7805
U14
4
IPS6041RPBF
Q1, Q2, Q3, Q4
4
CONN_01X03
P1, P2, P3, P5
1
Arduino_nano
P4
3
CONN_01X04
P6, P10, P11
1
CONN_01X02
P7
2
CONN_01X03
P8, P9
2
Jumper_NO_Small
JP1, JP2
4
5K
RV1, RV3, RV5, RV7
10
D
D1, D3, D4, D5, D7, D9, D11, D12 +2
4
LED
D2, D6, D8, D10
4
1uF
C1, C4, C5, C6
1
4u7
C2
1
220u
C3
2
100u
C7, C10
2
10n
C8, C9
11
100K
R1, R5, R9, R13, R17, R18, R19, R20 +3
4
680K
R2, R6, R10, R14
12
4k7
R3, R7, R11, R15, R28, R29, R34, R35 +4
Show 6 more
QtyPartRefs
4
1K
R4, R8, R12, R16
4
22K
R24, R30, R36, R42
4
6K8
R25, R31, R37, R43
4
150K
R26, R32, R38, R44
4
2K7
R27, R33, R39, R45
4
27K
R48, R49, R50, R51

CorboIron design files

The KiCad project lives in the bjohan/CorboIron repository on GitHub; these links point at the commit this page was built from.

CorboIron: common questions

What microcontroller does the CorboIron use?

The CorboIron is built around the Arduino_nano, from the AVR/Arduino family.

How big is the CorboIron PCB?

The CorboIron measures 78.7 × 99.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the CorboIron?

101 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the CorboIron design files?

From the bjohan/CorboIron repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the CorboIron design in my own project?

The repository has no license, so all rights stay with bjohan. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the CorboIron without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
