About the Pi sfp PCB

Pi sfp is an open source Raspberry Pi PCB design by blackbit42, published on GitHub. It is a 2-layer board measuring 65 × 56 mm, with 48 components from 15 distinct parts.

Its main chip is the C5727991, from the Raspberry Pi family. Other key parts include the C6186. By type, the board carries 22 resistors, 11 capacitors, 5 diodes, 3 transistors, 2 ICs and 2 connectors.

It belongs with the usb & debug tools designs in this gallery.

From the project

Raspberry Pi SFP Programmer

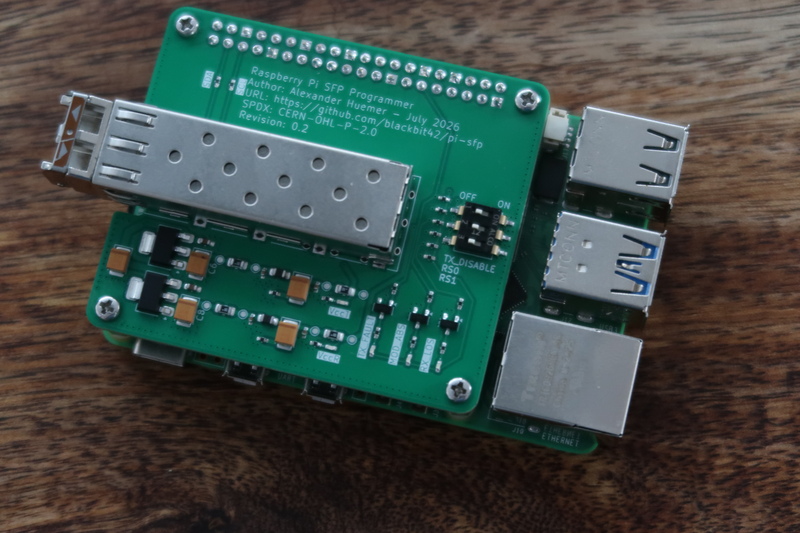

Pi sfp, from the project README
From the project README

Main components on the Pi sfp

C6186

Pi sfp bill of materials (BOM)

48 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
C6186
AMS1117-3.3
U1, U2
3
C8664
BC847
Q1, Q2, Q3
1
RPi_GPIO
J1
1
C42931381
SFP+
J2
1
C5727991
EDS03SGNNTR04Q
SW1
5
C5123485
LED
D1, D2, D3, D4, D5
2
C285965
4.7u
L1, L2
5
C110051
22u
C1, C3, C6, C8, C14
4
C913742
0.1u
C2, C4, C5, C7
2
C519560
1u
C12, C13
9
C60490
10k
R1, R2, R3, R4, R5, R6, R8, R9 +1
5
C25936
3.3k
R7, R10, R16, R19, R20
4
C2074770
0.1
R11, R14, R17, R18
2
C423160
0.5
R12, R13
2
C17168
0
R21, R22

Pi sfp design files

The KiCad project lives in the blackbit42/pi-sfp repository on GitHub; these links point at the commit this page was built from.

Pi sfp: common questions

What microcontroller does the Pi sfp use?

The Pi sfp is built around the C5727991, from the Raspberry Pi family.

How big is the Pi sfp PCB?

The Pi sfp measures 65 × 56 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pi sfp?

48 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pi sfp design files?

From the blackbit42/pi-sfp repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Pi sfp design in my own project?

The repository has no license, so all rights stay with blackbit42. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Pi sfp without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
