About the Teensy4 usb host breakout

Teensy4 usb host breakout is an open source PCB design by blackketter, published on GitHub. It is a 2-layer board measuring 24.1 × 15.2 mm, with 8 components from 8 distinct parts.

Other key parts include the TPD3S014. By type, the board carries 2 connectors, 2 capacitors, 1 IC, 1 fuse, 1 inductor and 1 resistor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

USB Host Breakout for Teensy 4.0

A companion breakout board with USB-A host connector to mate with the Teensy 4 Header Breakout Board.

It's designed to solder to the top 6 pins on the right side of the Teensy 4 Header Breakout.

- See also Combo SD/USB Host breakout - In progress: First prototype works great. - With longer header pins you should be able to flip the board to be under or over the Teensy 4.0 - Download bom/ibom.html and view it with web browser to see bill of materials and placement information. - The 6th pin provides an optional enable pin for the power management chip on digital pin 27. For always-on, cut…

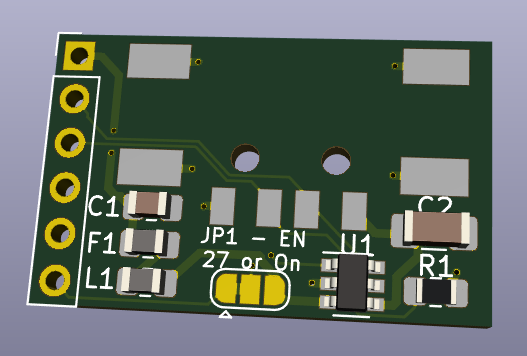

Teensy4 usb host breakout, from the project README
From the project README

Main components on the Teensy4 usb host breakout

TPD3S014

Teensy4 usb host breakout bill of materials (BOM)

8 components, 8 distinct parts.

QtyPartRefs
1
TPD3S014
U1
1
Conn_01x06
J1
1
USB_A
J2
1
500mA
F1
1
ferrite 150
L1
1
2u2
C1
1
100u
C2
1
100k
R1

Teensy4 usb host breakout design files

The KiCad project lives in the blackketter/teensy4_usb_host_breakout repository on GitHub; these links point at the commit this page was built from.

Teensy4 usb host breakout: common questions

How big is the Teensy4 usb host breakout?

The Teensy4 usb host breakout measures 24.1 × 15.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Teensy4 usb host breakout?

8 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Teensy4 usb host breakout design files?

From the blackketter/teensy4_usb_host_breakout repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Teensy4 usb host breakout design in my own project?

The repository has no license, so all rights stay with blackketter. Use it as a reference, and ask the author before reusing the design.
