About the Bd845-pwb board

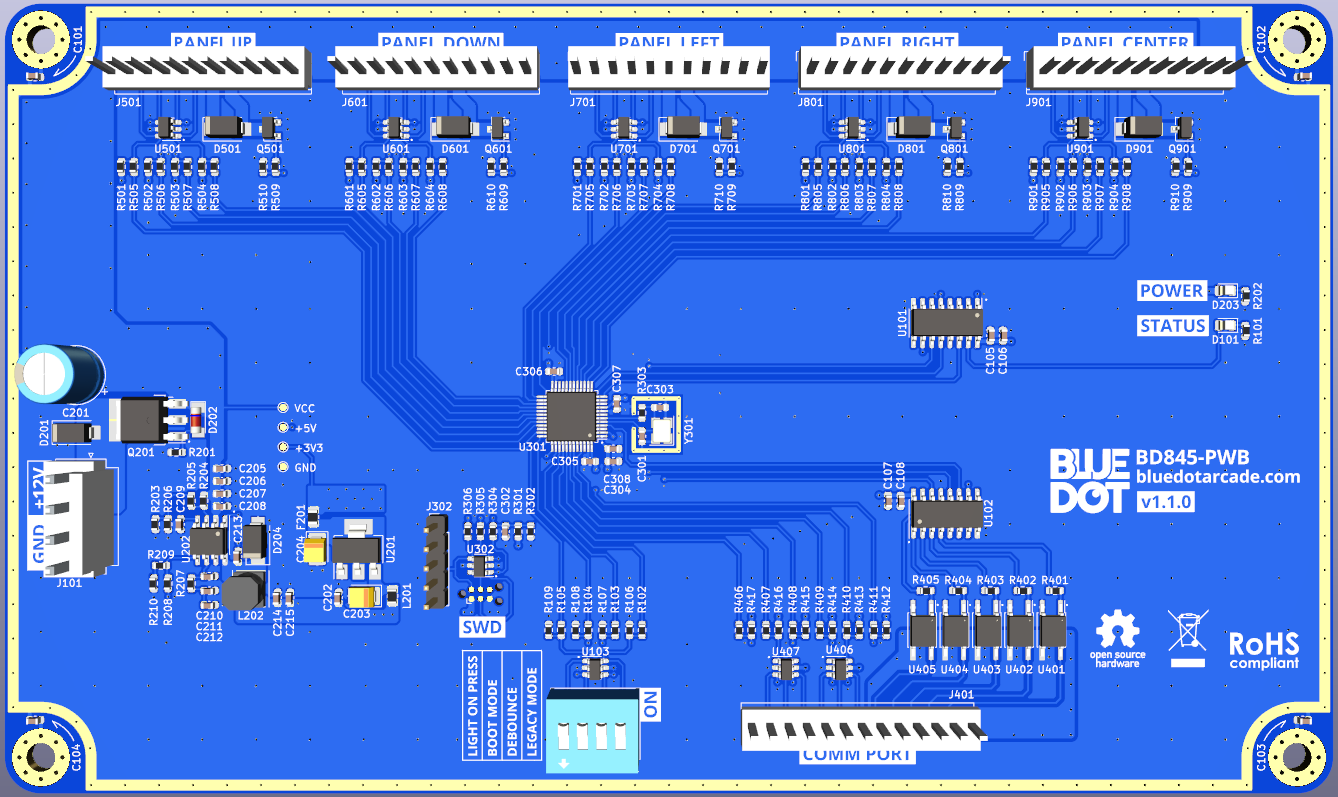

Bd845-pwb board is an open source STM32 PCB design by bluedot-arcade, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 185 × 110 mm, with 172 components from 43 distinct parts.
Its main chip is the C23922, from the STM32 family. Other key parts include the C5947, C85364, C6186, C9865 and C42432283. By type, the board carries 92 resistors, 31 capacitors, 19 ICs, 10 diodes, 9 connectors and 6 transistors.
From the project
A clone of the original Konami GN845-PWB(B) Stage I/O board for DDR machines.
The goal of the project is to replicate the original Konami GN845-PWB(B) Stage I/O board by designing a drop in replacement board for future-proofing DDR cabinets.
It emulates the original DDR Stage I/O communication protocol boot sequence allowing to run the game without an I/O Check Bypass. Other protocol features are currently not supported.
It also provides additional features such as debouncing and a Light-On-Press mode that lights up the arrow light when pressed without the need of an external lights driver board.

Main components on the Bd845-pwb board
Bd845-pwb board bill of materials (BOM)
172 components, 43 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C5947 74HC595-Q100 | SO-16_3.9x9.9mm_P1.27mm | U101 |
| 1 | C5947 74HC595 | SO-16_3.9x9.9mm_P1.27mm | U102 |
| 9 | C85364 SRV05-4 | SOT-23-6 | U103, U302, U406, U407, U501, U601, U701, U801 +1 |
| 1 | C6186 AMS1117-3.3 | SOT-223-3_TabPin2 | U201 |
| 1 | C9865 TPS54331 | SOIC-8_3.9x4.9mm_P1.27mm | U202 |
| 1 | C23922 STM32F030C8Tx | LQFP-48_7x7mm_P0.5mm | U301 |
| 5 | C42432283 EL357N(C)(TA)-G | SO-4_4.4x3.6mm_P2.54mm | U401, U402, U403, U404, U405 |
| 1 | C36220 AOD409 | TO-252-3_TabPin2 | Q201 |
| 5 | C95063 ZXMS6004FFTA | SOT23F | Q501, Q601, Q701, Q801, Q901 |
| 1 | C13738 16Mhz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y301 |
| 1 | C493148 JST_VH_B4P | JST_VH_B4P-VH_1x04_P3.96mm_Vertical | J101 |
| 1 | TC2030-MCP-NL | Tag-Connect_TC2030-IDC-NL_2x03_P1.27mm_Vertical | J301 |
| 1 | C6332198 PinHeader_01x05 | PinHeader_1x05_P2.54mm_Vertical | J302 |
| 1 | C160368 JST_B13P_SHF_1AA | JST_NH_B13P-SHF-1AA_1x13_P2.50mm_Vertical | J401 |
| 5 | C160366 JST_B11P_SHF_1AA | JST_NH_B11P-SHF-1AA_1x11_P2.50mm_Vertical | J501, J601, J701, J801, J901 |
| 1 | C883107 BSMD0805-035 | Fuse_0805_2012Metric | F201 |
| 1 | C692502 SW_DIP_x04 | SW_DIP_SPSTx04_Slide_9.78x12.34mm_W7.62mm_P2.54mm | SW101 |
| 1 | C2296 Status | LED_0805_2012Metric | D101 |
| 1 | C19077536 SMAJ15CA | D_SMA | D201 |
| 1 | C19077402 5V6 | D_MiniMELF | D202 |
Show 23 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C2297 Power | LED_0805_2012Metric | D203 |
| 6 | C8678 SS34 | D_SMA | D204, D501, D601, D701, D801, D901 |
| 1 | C1015 100R | R_0805_2012Metric | L201 |
| 1 | C68434 22u | L_Taiyo-Yuden_NR-50xx | L202 |
| 5 | C1588 1n | C_0603_1608Metric | C101, C102, C103, C104, C208 |
| 4 | C57112 10n | C_0603_1608Metric | C105, C108, C207, C209 |
| 9 | C14663 100n | C_0603_1608Metric | C106, C107, C202, C213, C302, C305, C306, C307 +1 |
| 1 | C109394 330u | CP_Radial_D8.0mm_P3.50mm | C201 |
| 2 | C8020 22u | CP_EIA-3528-15_AVX-H | C203, C204 |
| 5 | C96446 10u | C_0603_1608Metric | C205, C206, C214, C215, C304 |
| 1 | C1679 6p8 | C_0603_1608Metric | C210 |
| 2 | C1609 2n7 | C_0603_1608Metric | C211, C212 |
| 2 | C1634 10p | C_0603_1608Metric | C301, C303 |
| 2 | C21190 1k | R_0603_1608Metric | R101, R202 |
| 34 | C22808 150R | R_0603_1608Metric | R102, R103, R104, R105, R209, R304, R305, R306 +26 |
| 41 | C25804 10k | R_0603_1608Metric | R106, R107, R108, R109, R201, R203, R205, R206 +33 |
| 1 | C25803 100k | R_0603_1608Metric | R204 |
| 1 | C23212 6k8 | R_0603_1608Metric | R207 |
| 1 | C4177 1k8 | R_0603_1608Metric | R210 |
| 1 | NC | R_0603_1608Metric | R302 |
| 1 | C23182 47R | R_0603_1608Metric | R303 |
| 5 | C23138 330R | R_0603_1608Metric | R401, R402, R403, R404, R405 |
| 5 | C21189 0R | R_0603_1608Metric | R509, R609, R709, R809, R909 |
Bd845-pwb board design files
The KiCad project lives in the bluedot-arcade/bd845-pwb-board repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/bd845-pwb.kicad_pcb
- Schematickicad/bd845-pwb.kicad_sch
- BOMbom_bd845-pwb.csv
Bd845-pwb board: common questions
What microcontroller does the Bd845-pwb board use?
The Bd845-pwb board is built around the C23922, from the STM32 family.
How big is the Bd845-pwb board?
The Bd845-pwb board measures 185 × 110 mm, has 4 copper layers and is 1.5842 mm thick.
How many components are on the Bd845-pwb board?
172 components, from 43 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Bd845-pwb board design files?
From the bluedot-arcade/bd845-pwb-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Bd845-pwb board design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which bluedot-arcade chose for the repository.
Can I test firmware for the Bd845-pwb board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
