FightKey

blueOkiris·FightKey·pcb/FightKey.kicad_pcb

FightKey PCB layout, top view — open source RP2040/RP2350 board by blueOkiris
Simulate this board

About the FightKey PCB

FightKey is an open source RP2040/RP2350 PCB design by blueOkiris, published on GitHub. It is a 2-layer board measuring 254 × 85.1 mm, with 31 components from 4 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. By type, the board carries 2 connectors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

A keyboard-based fight stick

- pico - Code to upload to the pico within the Fight Key

- enclosure - model for the 3D printed case for the Fight Key

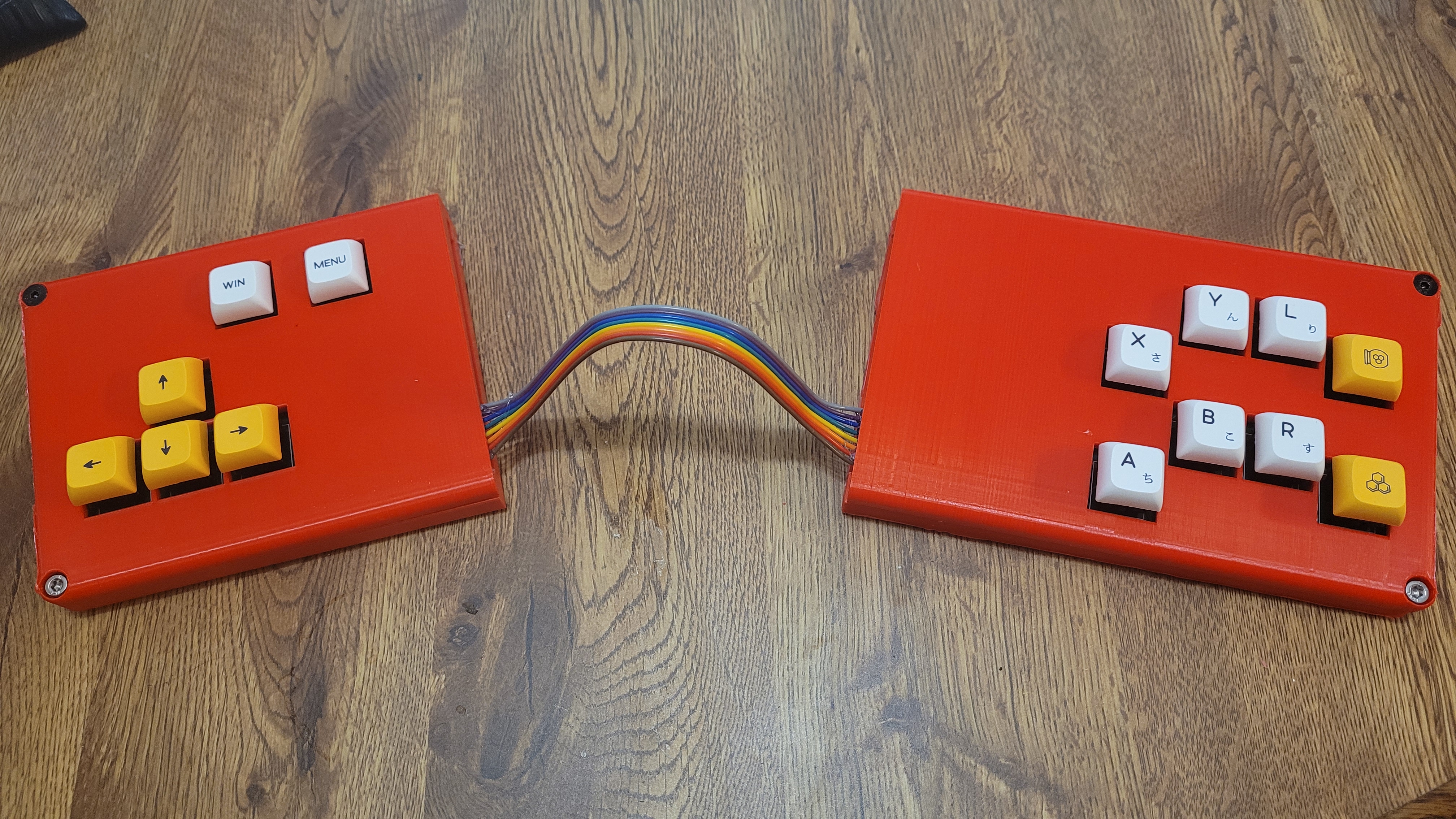

FightKey, from the project README
From the project README

Main components on the FightKey

Pico

FightKey bill of materials (BOM)

31 components, 4 distinct parts.

QtyPartRefs
1
Pico
U1
2
Conn_01x08_Male
J1, J2
14
MX1A-E1NW
AK_BTN1, AP_BT1, DOWN_BTN1, HK_BTN1, HP_BTN1, LEFT_BTN1, LK_BTN1, LP_BTN1 +6
14
R
R_DOWN1, R_K1, R_K2, R_K3, R_K4, R_LEFT1, R_P1, R_P2 +6

FightKey design files

The KiCad project lives in the blueOkiris/FightKey repository on GitHub; these links point at the commit this page was built from.

FightKey: common questions

What microcontroller does the FightKey use?

The FightKey is built around the Pico, from the RP2040/RP2350 family.

How big is the FightKey PCB?

The FightKey measures 254 × 85.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the FightKey?

31 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the FightKey design files?

From the blueOkiris/FightKey repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the FightKey design in my own project?

The repository has no license, so all rights stay with blueOkiris. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the FightKey without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
