NeowPad PCB layout, top view — open source RP2040/RP2350 board by BMLP07

About the NeowPad PCB

NeowPad is an open source RP2040/RP2350 PCB design by BMLP07, published on GitHub. It is a 2-layer board measuring 100 × 90 mm, with 32 components from 4 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 16 switches, 15 diodes and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

Macropad

Future plans: - Not a single layout but multiple for different task (work, games, ...) - Key-pressed combinations for more functionality

- CAD: Contains .stp/.step files and .f3b files. - Firmware: Contains KMK python file. - PCB: Contains gerber.zip (for production), PCB schematic and layout. - Production: All files necessary for the production of the macropad.

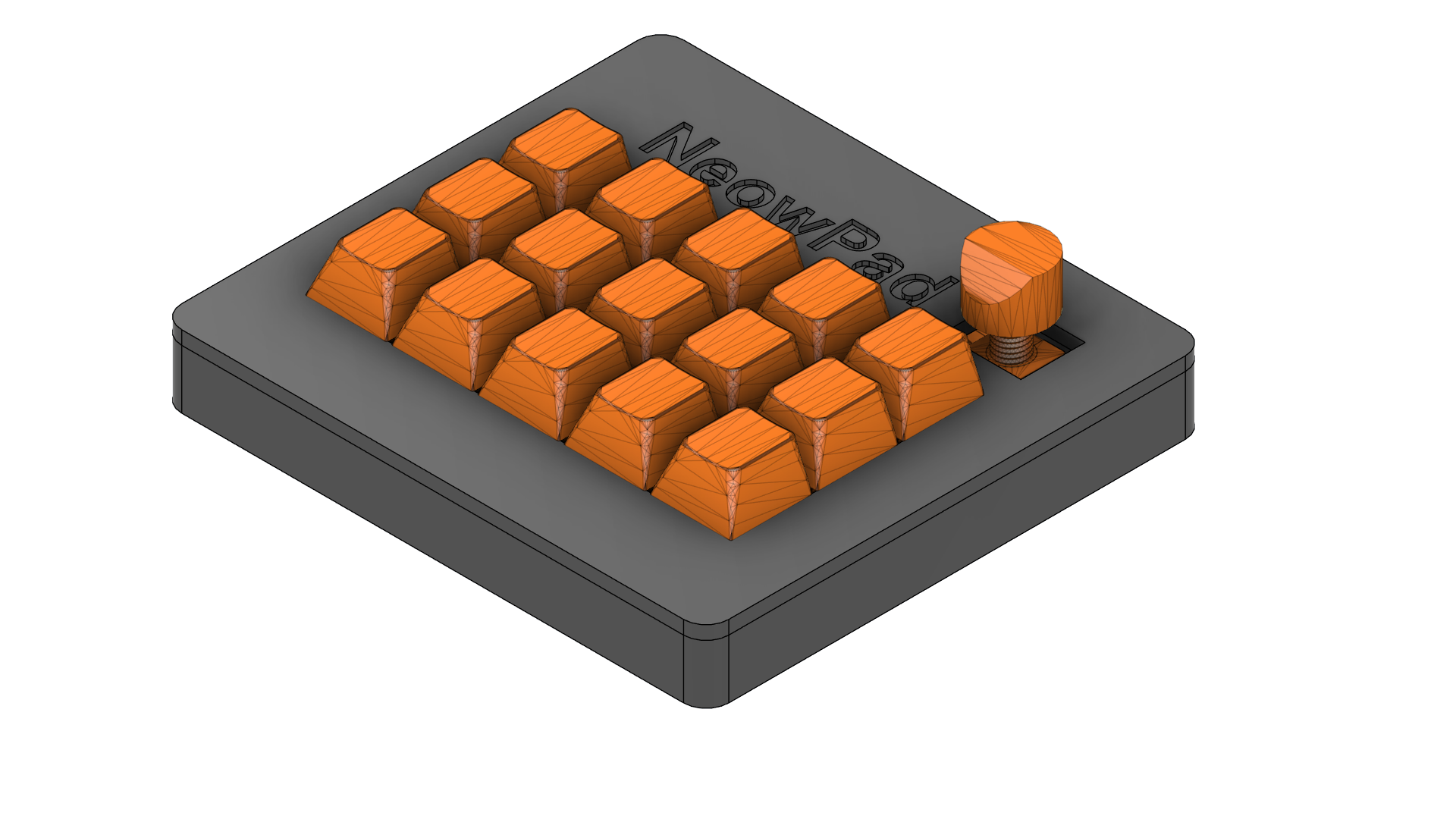

NeowPad, from the project README
From the project README

Main components on the NeowPad

XIAO-RP2040-DIP

NeowPad bill of materials (BOM)

32 components, 4 distinct parts.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
15
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +7
1
RotaryEncoder_Switch
SW16
15
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +7

NeowPad design files

The KiCad project lives in the BMLP07/NeowPad repository on GitHub; these links point at the commit this page was built from.

NeowPad: common questions

What microcontroller does the NeowPad use?

The NeowPad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the NeowPad PCB?

The NeowPad measures 100 × 90 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the NeowPad?

32 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the NeowPad design files?

From the BMLP07/NeowPad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the NeowPad design in my own project?

The repository has no license, so all rights stay with BMLP07. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the NeowPad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
