Nearness black gold panel
About the Nearness black gold panel PCB
Nearness black gold panel is an open source PCB design by bmoren, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 15 × 128.5 mm, with 0 components from 0 distinct parts.
It belongs with the audio designs in this gallery.
From the project

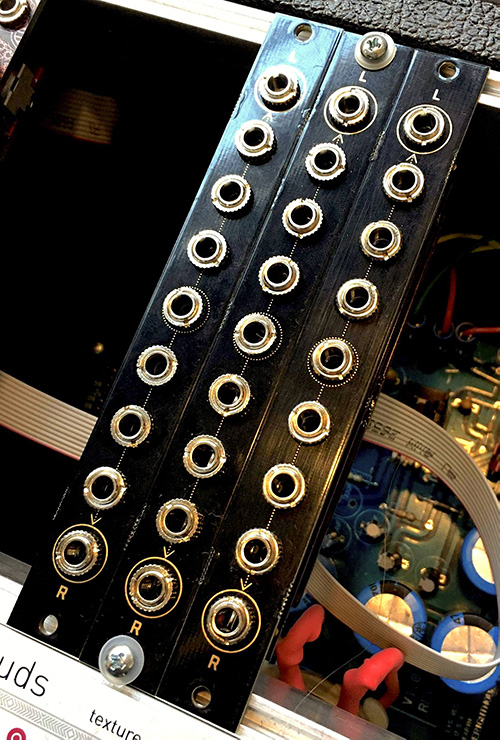

a PCB panel for the nearness eurorack module by @sarnesjo, designed by @laborcamp and @bmoren
Nearness black gold panel design files
The KiCad project lives in the bmoren/nearness-black-gold-panel repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb_panel.kicad_pcb
Nearness black gold panel: common questions
How big is the Nearness black gold panel PCB?
The Nearness black gold panel measures 15 × 128.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Nearness black gold panel?
0 components, from 0 distinct parts. The full bill of materials is listed on this page.
Where can I download the Nearness black gold panel design files?
From the bmoren/nearness-black-gold-panel repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Nearness black gold panel design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
