About the Lynx-PS2 PCB

Lynx-PS2 is an open source AVR/Arduino PCB design by Board-Folk, published on GitHub. It is a 2-layer board measuring 75.9 × 76.5 mm, with 23 components from 20 distinct parts.

Its main chip is the ATMEGA328, from the AVR/Arduino family. Other key parts include the MT8816 and 74LS145. By type, the board carries 7 resistors, 5 capacitors, 3 ICs, 3 connectors, 2 diodes and 1 transistor.

From the project

Camputers Lynx 48/96/128/192

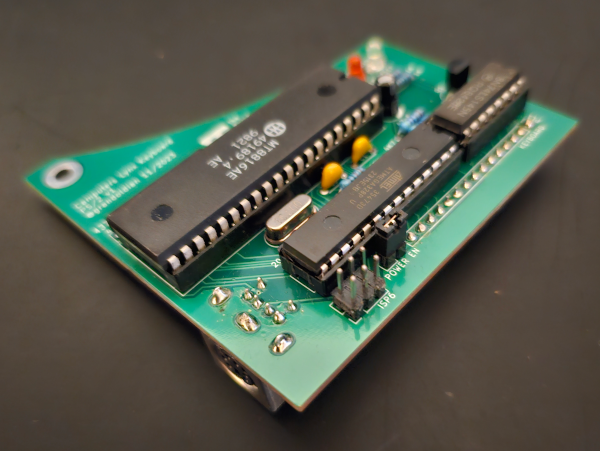

ATMega328 based PS/2 Keyboard Adapter for the Camputers Lynx. Arduino code and exported binaries in the Arduino folder.

Lynx-PS2, from the project README
From the project README

Main components on the Lynx-PS2

MT881674LS145ATMEGA328

Lynx-PS2 bill of materials (BOM)

23 components, 20 distinct parts.

QtyPartRefs
1
MT8816
U1
1
74LS145
U3
1
ATMEGA328
U4
1
BC517
Q1
1
16MHz
Y1
1
POWER EN
J1
1
PS/2
J3
1
ISP6
J800
1
KEYBOARD
PL1
1
POWER
D18
1
RESET
D19
1
47nF
C1
1
47uF
C2
2
20pF
C3, C4
1
100nF
C5
1
4K7
R9
2
10K
R10, R15
1
470R
R16
2
1K
R17, R18
1
4K7
RN1

Lynx-PS2 design files

The KiCad project lives in the Board-Folk/Camputers-Lynx repository on GitHub; these links point at the commit this page was built from.

Lynx-PS2: common questions

What microcontroller does the Lynx-PS2 use?

The Lynx-PS2 is built around the ATMEGA328, from the AVR/Arduino family.

How big is the Lynx-PS2 PCB?

The Lynx-PS2 measures 75.9 × 76.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Lynx-PS2?

23 components, from 20 distinct parts. The full bill of materials is listed on this page.

Where can I download the Lynx-PS2 design files?

From the Board-Folk/Camputers-Lynx repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Lynx-PS2 design in my own project?

The repository has no license, so all rights stay with Board-Folk. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Lynx-PS2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
