About the EinsteinTC01PS2 PCB

EinsteinTC01PS2 is an open source PCB design by Board-Folk, published on GitHub. It is a 2-layer board measuring 77.9 × 86.5 mm, with 21 components from 14 distinct parts.

Other key parts include the MT8816. By type, the board carries 8 resistors, 4 diodes, 3 transistors, 3 connectors, 1 IC and 1 capacitor.

From the project

Tatung Einstein TC-01

The Arduino Nano version of a PS/2 keyboard adapter for the Einstein TC-01. This is a larger version of the board intended for development of the Arduino code for it, though is perfectly usable. The board uses separate pins from the Nano to pull Shift, Ctrl and Grph through BC517 darlington pairs.

The board needs a separate 5V power connection as there is no power output on the Einstein's keyboard header. Footprints for both a barrel jack and 2 pin XH connector are provided for this.

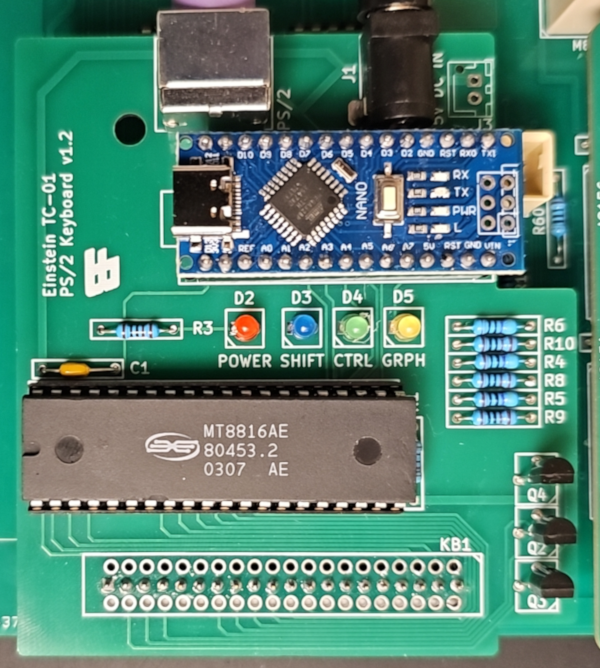

EinsteinTC01PS2, from the project README
From the project README

Main components on the EinsteinTC01PS2

MT8816

EinsteinTC01PS2 bill of materials (BOM)

21 components, 14 distinct parts.

QtyPartRefs
1
MT8816
U1
3
BC517
Q2, Q3, Q4
1
5V DC IN
J1
1
PS/2
J2
1
5V DC IN
J3
1
COMPUTER INTERFACE
KB1
1
POWER
D2
1
SHIFT
D3
1
CTRL
D4
1
GRPH
D5
1
100nF
C1
1
10K
R1
4
1K
R3, R8, R9, R10
3
470R
R4, R5, R6

EinsteinTC01PS2 design files

The KiCad project lives in the Board-Folk/Einstein-TC-01 repository on GitHub; these links point at the commit this page was built from.

EinsteinTC01PS2: common questions

How big is the EinsteinTC01PS2 PCB?

The EinsteinTC01PS2 measures 77.9 × 86.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the EinsteinTC01PS2?

21 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the EinsteinTC01PS2 design files?

From the Board-Folk/Einstein-TC-01 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the EinsteinTC01PS2 design in my own project?

The repository has no license, so all rights stay with Board-Folk. Use it as a reference, and ask the author before reusing the design.
