TC02Mini

Board-Folk·Einstein-TC-01·Expansions/TC02Mini/Kicad/TC02Mini.kicad_pcb

TC02Mini PCB layout, top view — open source board by Board-Folk

About the TC02Mini PCB

TC02Mini is an open source PCB design by Board-Folk, published on GitHub. It is a 2-layer board measuring 199.6 × 74.2 mm, with 51 components from 34 distinct parts.

By type, the board carries 14 capacitors, 11 resistors, 6 modules, 1 transistor and 1 crystal.

From the project

Tatung Einstein TC-01

A simple, non-replica (schematics the same) remake of the TC-02 80 column board. Could be mounted on a ribbon cable, or as pictured on PC104 pin sockets (at full stretch). Required Character ROM at I4 in CHARROM folder. Please see the original manual for instructions for use.

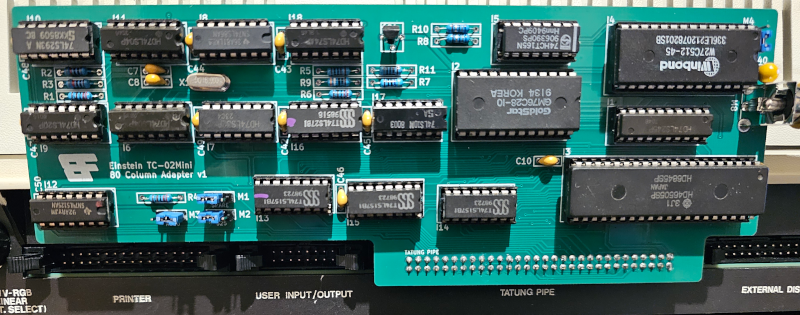

TC02Mini, from the project README
From the project README

TC02Mini bill of materials (BOM)

51 components, 34 distinct parts.

QtyPartRefs
1
SPARE
M1
1
525
M2
1
AU80
M3
1
BANK
M4
1
COMPOSITE VIDEO
M8
1
TATUNG PIPE
M300
1
BC307
Q1
1
16MHz
X1
1
74LS245
I1
1
2128 RAM
I2
1
6845 CRTC
I3
1
27C64
I4
1
74LS165
I5
2
74LS04
I6, I11
1
74LS32
I7
1
74LS86
I8
1
74LS20
I9
1
74LS293
I10
1
74LS125
I12
3
74LS157
I13, I14, I15
Show 14 more
QtyPartRefs
1
74LS27
I16
1
74LS10
I17
1
74LS74
I18
1
10nF
C7
1
33pF
C8
1
47pF
C10
1
47uF 16V
C40
10
100nF
C41, C42, C43, C44, C45, C46, C47, C48 +2
3
2K2
R1, R4, R6
2
820R
R2, R3
2
1K
R5, R11
1
470R
R7
2
68R
R8, R10
1
390R
R9

TC02Mini design files

The KiCad project lives in the Board-Folk/Einstein-TC-01 repository on GitHub; these links point at the commit this page was built from.

TC02Mini: common questions

How big is the TC02Mini PCB?

The TC02Mini measures 199.6 × 74.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TC02Mini?

51 components, from 34 distinct parts. The full bill of materials is listed on this page.

Where can I download the TC02Mini design files?

From the Board-Folk/Einstein-TC-01 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the TC02Mini design in my own project?

The repository has no license, so all rights stay with Board-Folk. Use it as a reference, and ask the author before reusing the design.
