TMSAdapterTC01
About the TMSAdapterTC01 PCB
TMSAdapterTC01 is an open source PCB design by Board-Folk, published on GitHub. It is a 2-layer board measuring 55.9 × 88.9 mm, with 22 components from 8 distinct parts.
Other key parts include the TMS9929A and MB8118. By type, the board carries 9 ICs, 7 capacitors, 4 resistors, 1 connector and 1 diode.
From the project
Tatung Einstein TC-01

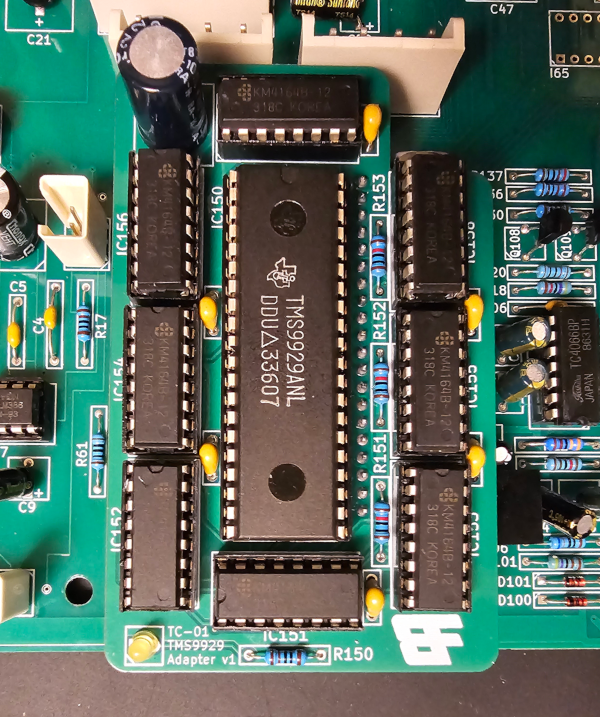

Adapter board to allow the use of a TMS9929 chip on the Tatung Einstein TC-01. The TMS9929 is easier to find than the original VDP, but requires a different type of RAM which needs fitting to the adapter.
Intended to work with 5V 1x16K DRAM chips, e.g. MB8118 or compatible, but can accept 4164 and 41256 RAM, which although is a waste as the majority of the RAM isn't used are more easily and cheaply obtained. This will not work with 4116 RAM as the board doesn't provide the correct voltages.
Main components on the TMSAdapterTC01
TMSAdapterTC01 bill of materials (BOM)
22 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TMS9929A | DIP-40_W15.24mm | IC150 |
| 8 | MB8118 | DIP-16_W7.62mm | IC151, IC152, IC153, IC154, IC155, IC156, IC157, IC158 |
| 1 | VDP PLUG | DIP-40_W15.24mm_Plug | J150 |
| 1 | 5V | LED_D3.0mm | D150 |
| 6 | 100nF | C_Disc_5.08mm | C150, C151, C152, C153, C154, C155 |
| 1 | 220uF | Elec_5.08mm - Big Box | C156 |
| 1 | 1K | Resistor 10.16mm | R150 |
| 3 | 10K | Resistor 10.16mm | R151, R152, R153 |
TMSAdapterTC01 design files
The KiCad project lives in the Board-Folk/Einstein-TC-01 repository on GitHub; these links point at the commit this page was built from.
TMSAdapterTC01: common questions
How big is the TMSAdapterTC01 PCB?
The TMSAdapterTC01 measures 55.9 × 88.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the TMSAdapterTC01?
22 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the TMSAdapterTC01 design files?
From the Board-Folk/Einstein-TC-01 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the TMSAdapterTC01 design in my own project?
The repository has no license, so all rights stay with Board-Folk. Use it as a reference, and ask the author before reusing the design.
