Learnboard PCB layout, top view — open source RP2040/RP2350 board by bobis1

About the Learnboard PCB

Learnboard is an open source RP2040/RP2350 PCB design by bobis1, published on GitHub. It is a 2-layer board measuring 281.4 × 126 mm, with 55 components from 8 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. Other key parts include the PCM5100. By type, the board carries 26 diodes, 17 switches, 10 resistors, 1 IC and 1 module.

It belongs with the audio and keyboards designs in this gallery.

From the project

A custom midi keyboard

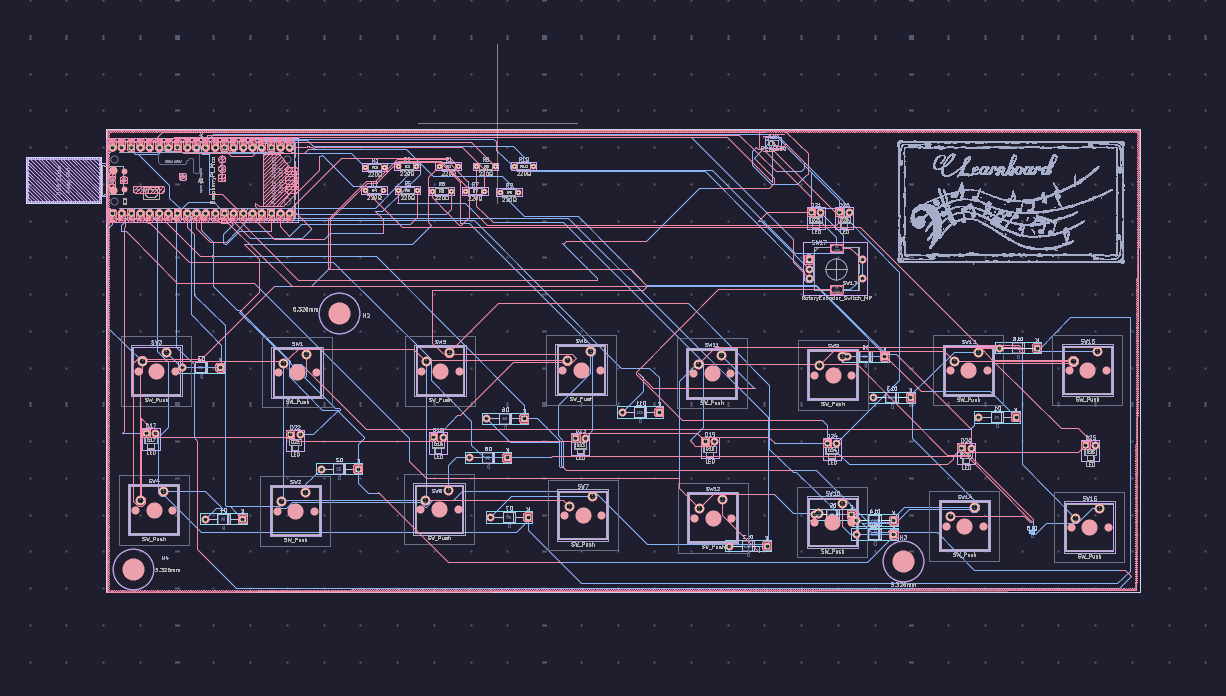

Learnboard, from the project README
From the project README

Main components on the Learnboard

PCM5100RaspberryPi_Pico

Learnboard bill of materials (BOM)

55 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
PCM5100
U1
1
RaspberryPi_Pico
A1
16
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +8
1
RotaryEncoder_Switch_MP
SW17
15
D
D1, D2, D3, D4, D5, D6, D7, D8 +7
1
D
D16
10
LED
D17, D18, D19, D20, D21, D22, D23, D24 +2
10
220Ω
R1, R2, R3, R4, R5, R6, R7, R8 +2

Learnboard design files

The KiCad project lives in the bobis1/learnboard repository on GitHub; these links point at the commit this page was built from.

Learnboard: common questions

What microcontroller does the Learnboard use?

The Learnboard is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Learnboard PCB?

The Learnboard measures 281.4 × 126 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Learnboard?

55 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Learnboard design files?

From the bobis1/learnboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Learnboard design in my own project?

The repository has no license, so all rights stay with bobis1. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Learnboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
