Jarduino2

bpmine·jarduino·goutteurs/hard/_archives/jarduino2_RevA/jarduino2.kicad_pcb

Jarduino2 PCB layout, top view — open source TI MSP430/CC board by bpmine

About the Jarduino2 PCB

Jarduino2 is an open source TI MSP430/CC PCB design by bpmine, published on GitHub. It is a 2-layer board measuring 93 × 89 mm, with 52 components from 27 distinct parts.

Its main chip is the MSP430F1222IDW, from the TI MSP430/CC family. Other key parts include the R-78B3.3-2.0 and RtcArduino. By type, the board carries 18 resistors, 11 capacitors, 8 connectors, 6 diodes, 3 ICs and 2 transistors.

From the project

Ensemble de systèmes pour l'arrosage du jardin

Jarduino2 est une évolution du premier jarduino fabriqué en 2019.

Le premier jarduino était construit avec des platines de prototypage et un arduino MKR Zero Wifi.

Ce nouveau jarduino est construit à partir d'un Nano. On peut le configurer à l'aide d'une interface MODBUS sur l'USB ou bien sur le port série d'extension. Il est possible de lui ajouter une extension Wifi pour le relier au réseau.

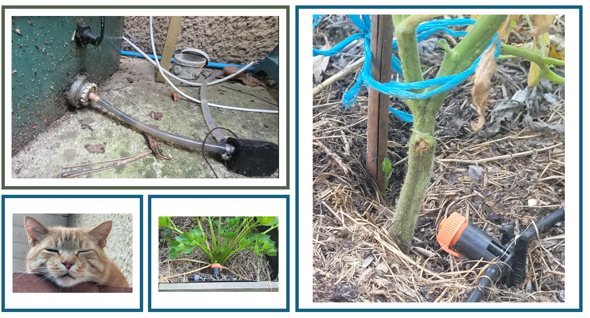

Jarduino2, from the project README
From the project README

Main components on the Jarduino2

R-78B3.3-2.0MSP430F1222IDWRtcArduino

Jarduino2 bill of materials (BOM)

52 components, 27 distinct parts.

QtyPartRefs
1
R-78B3.3-2.0
U1
1
MSP430F1222IDW
U2
1
RtcArduino
U3
2
Q_NPN_BCE
Q1, Q2
1
Alimentations 12V
J1
1
Cmd Mcu
J2
1
Commandes
J3
1
Pompe1
J4
1
Pompe 2
J5
1
Ext
J6
1
Program
J8
1
Tests
J9
2
Battery
BT1, BT2
1
SW_Push
SW1
4
D_Schottky
D1, D2, D3, D4
2
D
D5, D6
1
INDUCTOR
L1
3
10µF
C1, C6, C9
5
10n
C2, C4, C5, C7, C8
1
20µF
C3
Show 7 more
QtyPartRefs
2
50µF
C10, C11
1
100k
R1
1
30k
R2
8
100k
R3, R5, R6, R7, R8, R11, R17, R18
1
30k
R4
5
220
R9, R10, R12, R13, R14
2
50
R15, R16

Jarduino2 design files

The KiCad project lives in the bpmine/jarduino repository on GitHub; these links point at the commit this page was built from.

Jarduino2: common questions

What microcontroller does the Jarduino2 use?

The Jarduino2 is built around the MSP430F1222IDW, from the TI MSP430/CC family.

How big is the Jarduino2 PCB?

The Jarduino2 measures 93 × 89 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Jarduino2?

52 components, from 27 distinct parts. The full bill of materials is listed on this page.

Where can I download the Jarduino2 design files?

From the bpmine/jarduino repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Jarduino2 design in my own project?

The repository has no license, so all rights stay with bpmine. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Jarduino2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug TI MSP430/CC firmware against it before you order a PCB.
