Hex2811-penta

brainsmoke·hex2811-penta·pcb_rect/hex2811.kicad_pcb

Hex2811-penta PCB layout, top view — open source NXP board by brainsmoke

About the Hex2811-penta PCB

Hex2811-penta is an open source NXP PCB design by brainsmoke, published on GitHub under the MIT license. It is a 2-layer board measuring 20 × 42.9 mm, with 39 components from 12 distinct parts.

Its main chip is the MK20DX256VLH7, from the NXP family. Other key parts include the 74HC245. By type, the board carries 19 resistors, 8 connectors, 6 capacitors, 3 ICs, 2 inductors and 1 crystal.

It belongs with the displays & leds designs in this gallery.

From the project

LED Strip Driver PCB

A 16x WS2812/SK6812 ledstrip driver for my LED ball with 900 SK6812 LEDs.

Essentially a clone to the awesome fadecandy board, but with a faster MCU and a second buffer chip connected to PORTC bits 0-7, allowing me to drive 16x80 RGB chips, or 16x60 RGBW chips.

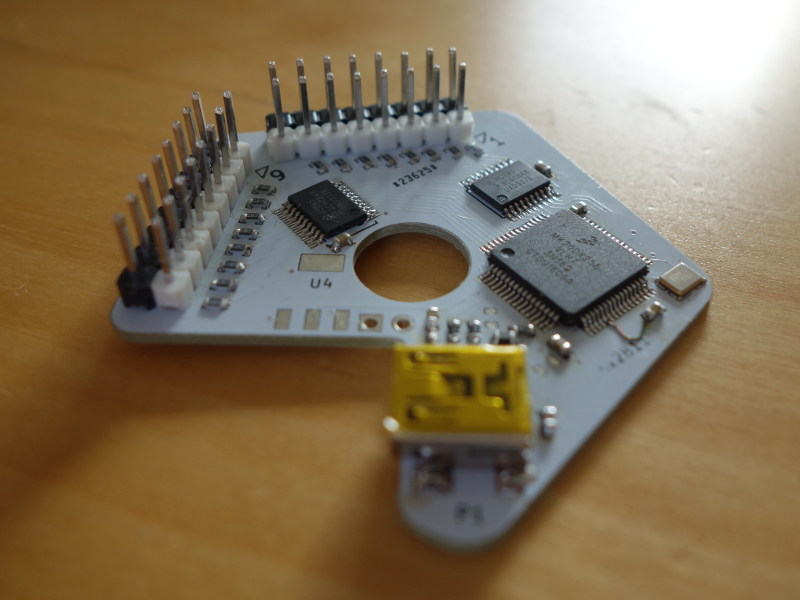

Hex2811-penta, from the project README
From the project README

Main components on the Hex2811-penta

MK20DX256VLH774HC245

Hex2811-penta bill of materials (BOM)

39 components, 12 distinct parts.

QtyPartRefs
1
MK20DX256VLH7
U1
2
74HC245
U2, U3
1
CRYSTAL_SMD
X1
2
CONN_02X08
P1-8, P9-16
2
CONN_01X02
P2, P4
1
hackerport
P3
2
CONN_01X01
P5, P6
1
USB_OTG
P7
2
FILTER
FB1, FB2
6
C
C1, C2, C3, C4, C5, C6
16
68 Ohm
R1, R2, R3, R4, R5, R6, R7, R8 +8
3
R
R17, R18, R21

Hex2811-penta design files

The KiCad project lives in the brainsmoke/hex2811-penta repository on GitHub; these links point at the commit this page was built from.

Hex2811-penta: common questions

What microcontroller does the Hex2811-penta use?

The Hex2811-penta is built around the MK20DX256VLH7, from the NXP family.

How big is the Hex2811-penta PCB?

The Hex2811-penta measures 20 × 42.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hex2811-penta?

39 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Hex2811-penta design files?

From the brainsmoke/hex2811-penta repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Hex2811-penta design in my own project?

Yes, under the terms of its MIT license, which brainsmoke chose for the repository.

Can I test firmware for the Hex2811-penta without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
