Pdk prog

brainsmoke·pdk_prog·pcb/pdk_prog/project.kicad_pcb

Pdk prog PCB layout, top view — open source STM32 board by brainsmoke
Simulate this board

About the Pdk prog PCB

Pdk prog is an open source STM32 PCB design by brainsmoke, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 42 × 37 mm, with 56 components from 25 distinct parts.

Its main chip is the C81720, from the STM32 family. Other key parts include the C51118, C15999, C7950 and C84817. By type, the board carries 26 resistors, 13 capacitors, 5 ICs, 5 connectors, 4 diodes and 1 crystal.

It belongs with the usb & debug tools designs in this gallery.

From the project

padauk programmer with USB-C connector

Production files (JLCPCB): gerbers BOM POS

https://github.com/free-pdk/easy-pdk-programmer-lite-hardware

https://github.com/free-pdk/easy-pdk-programmer-hardware

https://github.com/free-pdk/easy-pdk-programmer-software

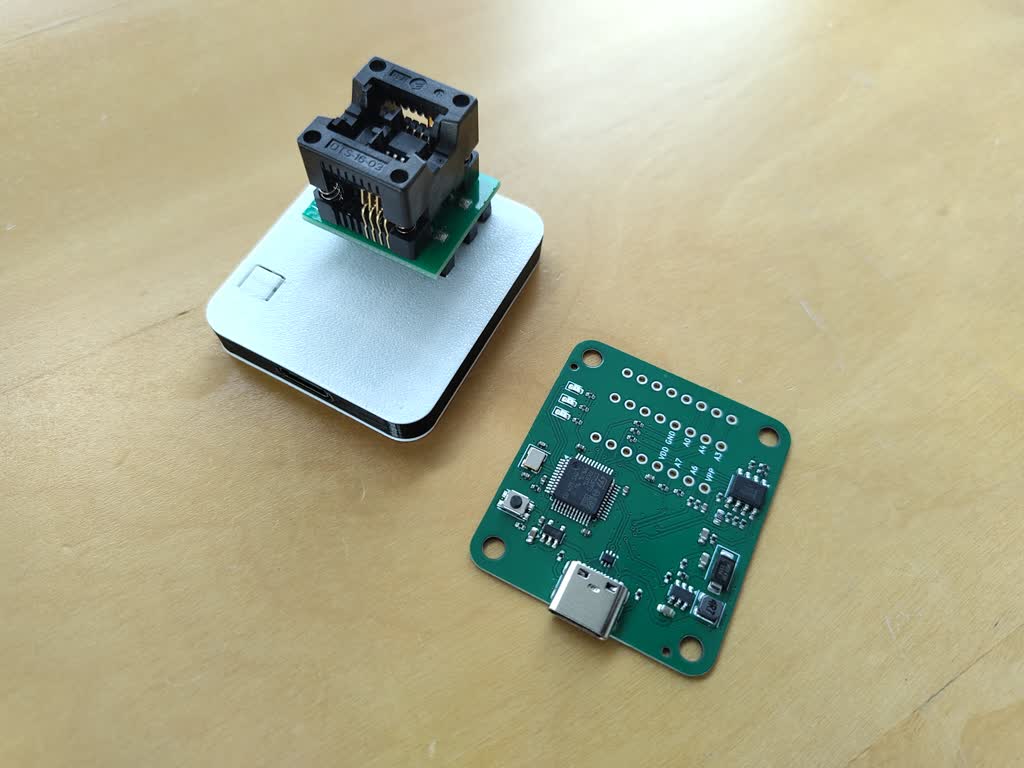

Pdk prog, from the project README
From the project README

Main components on the Pdk prog

C81720C51118C15999C7950C84817

Pdk prog bill of materials (BOM)

56 components, 25 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C81720
STM32F072CBTx
U1
1
C51118
AP2112K-3.3
U2
1
C15999
USBLC6-2P6
U3
1
C7950
LM358
U4
1
C84817
MT3608
U5
1
C400090
Crystal_GND24
Y1
1
C165948
USB_C_Receptacle_USB2.0
J1
3
Conn_01x08_Socket
J2, J3, J4
1
~
J39
1
C318893
SW_SPST
SW1
3
C2286
LED
D1, D2, D3
1
C2480
SS14
D4
1
C7427089
4.7uH
L1
4
C19666
4.7uF
C1, C9, C12, C13
7
C52923
1uF
C2, C3, C4, C5, C6, C10, C11
2
C32949
10pF
C7, C8
2
C25905
5k1
R1, R2
5
C25741
100k
R3, R8, R14, R16, R25
3
C25104
1k
R4, R5, R6
5
C25076
100
R7, R9, R10, R11, R12
Show 5 more
QtyPartRefs
1
C25092
22
R13
5
C25765
20k
R15, R17, R18, R19, R21
1
C4260
6k2
R20
3
C25767
220k
R22, R23, R24
1
C51721
3k9
R26

Pdk prog design files

The KiCad project lives in the brainsmoke/pdk_prog repository on GitHub; these links point at the commit this page was built from.

Pdk prog: common questions

What microcontroller does the Pdk prog use?

The Pdk prog is built around the C81720, from the STM32 family.

How big is the Pdk prog PCB?

The Pdk prog measures 42 × 37 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pdk prog?

56 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pdk prog design files?

From the brainsmoke/pdk_prog repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Pdk prog design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which brainsmoke chose for the repository.

Can I test firmware for the Pdk prog without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
