Pinha lora gateway

brainstorm·pinha_lora_gateway

Pinha lora gateway PCB layout, top view — open source board by brainstorm

About the Pinha lora gateway PCB

Pinha lora gateway is an open source PCB design by brainstorm, published on GitHub. It is a 4-layer board measuring 75 × 86 mm, with 39 components from 32 distinct parts.

Other key parts include the VoCore_v2, si3404, ap2112 and MPCIE-Socket. By type, the board carries 10 resistors, 9 capacitors, 8 connectors, 4 ICs, 4 inductors and 3 diodes.

It belongs with the rf & radio designs in this gallery.

From the project

A maker-friendly LoRa mini-pcie gateway with PoE and (plenty of) PMOD

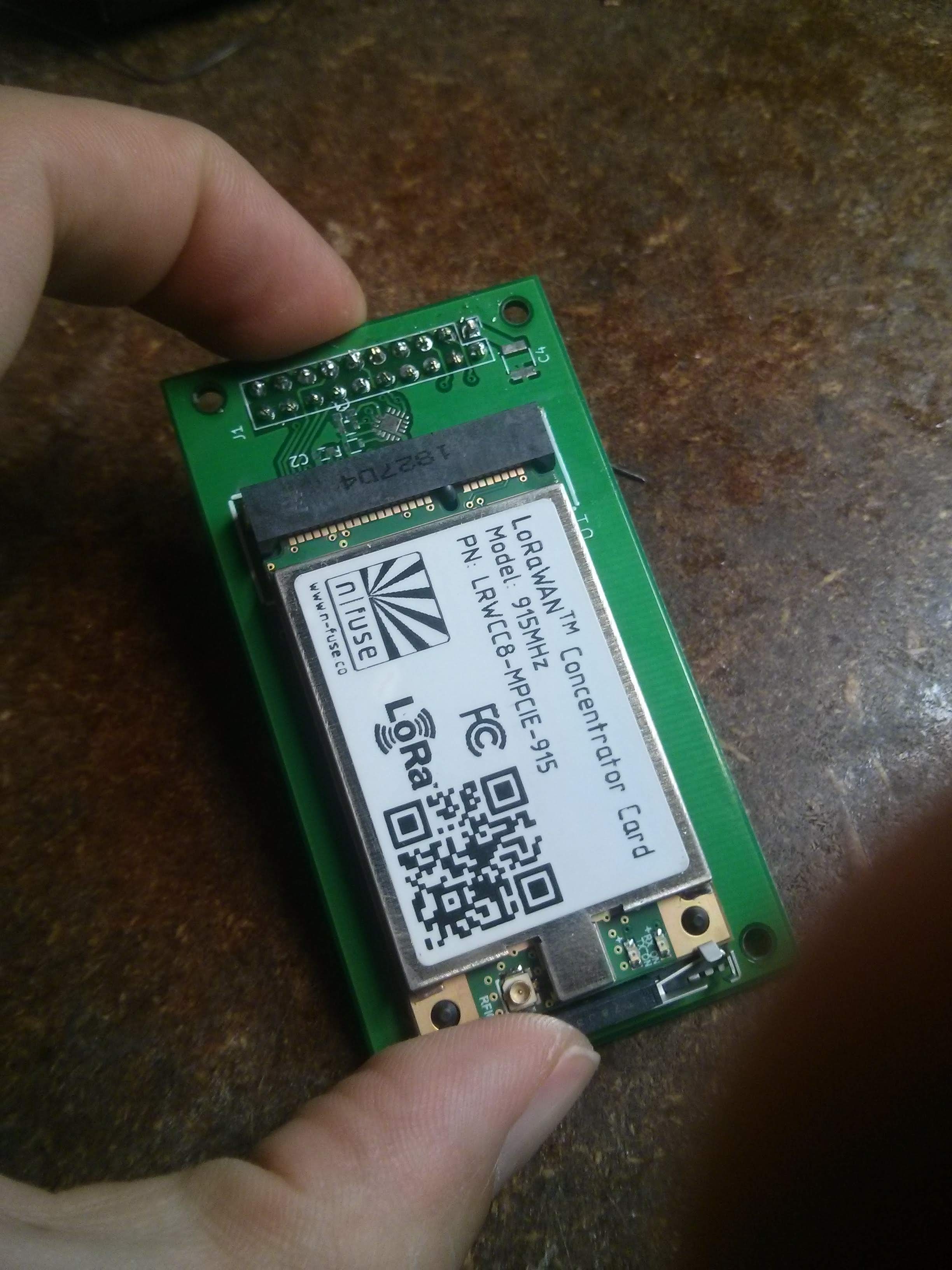

This small LoRa gateway adapter (75x41mm) is motivated by the generous donation of a (n-fuse)[https://www.n-fuse.co/]'s LoRaWan concentrator card. This version of the board is meant to work with the USB firmware for the n-fuse board:

Future versions might switch to the UART version of the n-fuse firmware.

RAK wireless boards might work with this adapter, but they are not tested... I'm open to receive a RAKWireless board to try it out :).

Pinha lora gateway, from the project README — From the project README

Main components on the Pinha lora gateway

VoCore_v2 si3404 ap2112 MPCIE-Socket

Pinha lora gateway bill of materials (BOM)

39 components, 32 distinct parts.

Qty	Part	Footprint	Refs
1	VoCore_v2	VOCORE2	U1
1	si3404	QFN-20-1EP_4x4mm_Pitch0.5mm	U2
1	ap2112	SOT-23-5	U3
1	MPCIE-Socket	mpcie-socket	U4
1	SI-52003-F	SI-52003-F	X1
2	Conn_02x03_Odd_Even	PinHeader_2x03_P2.54mm_Vertical	J1, J3
1	PMOD I2C 6pin	PinHeader_1x06_P2.54mm_Horizontal	J2
1	PMOD UART 6pin	PinHeader_1x06_P2.54mm_Horizontal	J4
1	PMOD GPIO 6pin	PinHeader_1x06_P2.54mm_Horizontal	J5
2	Conn_02x03_Odd_Even	PinSocket_2x03_P2.54mm_Vertical	J6, J7
1	Conn_01x02	PinHeader_1x02_P2.54mm_Vertical	J8
1	PDS5100	D_SMC	D1
1	VP/VN(2)	Socket_Strip_Straight_2x02_Pitch2.00mm_SMD	D4
1	VP/VN(1)	Socket_Strip_Straight_2x02_Pitch2.00mm_SMD	D5
1	30Ohm	L_1806	FB1
2	MPZ1608B471	L_1806	L1, L2
1	33uH	L_Neosid_SM-NE127	L3
1	100nF/100V	CP_Radial_D6.3mm_P2.50mm	C1
3	0.1uF	C_0603	C2, C4, C6
1	1uF/100V	C_1210	C3

Show 12 more

Qty	Part	Footprint	Refs
1	15uF/160V	CP_Radial_D6.3mm_P2.50mm	C5
1	560uF/6.3V	CP_Radial_D8.0mm_P3.50mm	C8
1	1nF	C_0603	C9
1	22uF/6.3V	C_0603	C10
3	47K	R_0603	R1, R2, R4
1	1.2	R_0603	R3
1	24.3K	R_0603	R5
1	75	R_0603	R6
1	88.7K	R_0603	R7
1	3.24K	R_0603	R8
1	9.09K	R_0603	R9
1	100	R_0603	R10

Pinha lora gateway design files

The KiCad project lives in the brainstorm/pinha_lora_gateway repository on GitHub; these links point at the commit this page was built from.

Layoutminipcie-eth.kicad_pcb

Pinha lora gateway: common questions

How big is the Pinha lora gateway PCB?

The Pinha lora gateway measures 75 × 86 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Pinha lora gateway?

39 components, from 32 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pinha lora gateway design files?

From the brainstorm/pinha_lora_gateway repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Pinha lora gateway design in my own project?

The repository has no license, so all rights stay with brainstorm. Use it as a reference, and ask the author before reusing the design.
