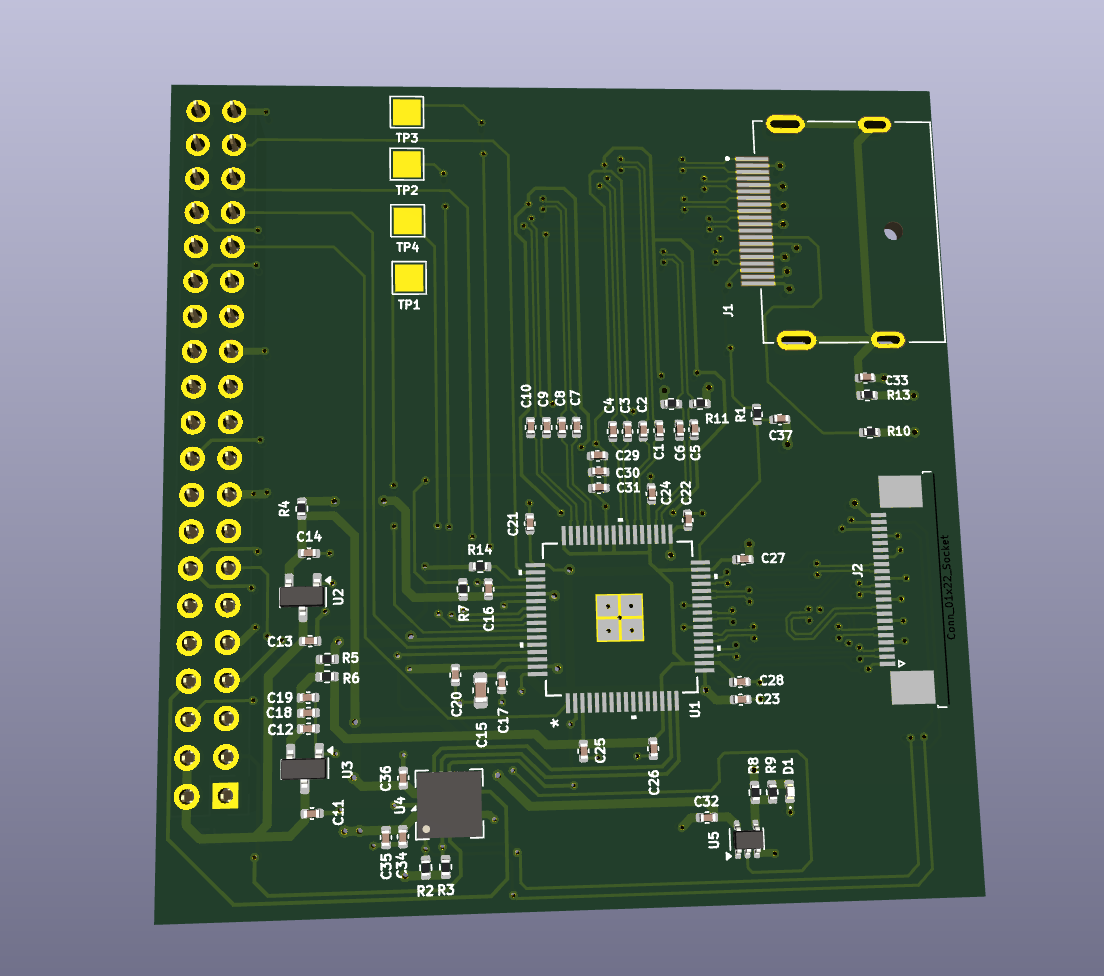

SN65DSI86 hat
About the SN65DSI86 hat
SN65DSI86 hat is an open source PCB design by brendena, published on GitHub. It is a 4-layer board measuring 55.8 × 58.4 mm, with 63 components from 20 distinct parts.
Other key parts include the SN65DSI86IPAPRQ1, MCP1700T-1802E/TT, MCP1700T-1202E/TT, TXB0104RGYR and SN74LVC1G07DCKR. By type, the board carries 39 capacitors, 14 resistors, 5 ICs, 3 connectors, 1 crystal and 1 diode.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
V1.1 - added a external clock, routed test to ground
Main components on the SN65DSI86 hat
SN65DSI86 hat bill of materials (BOM)
63 components, 20 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SN65DSI86IPAPRQ1 | ZQE64_TEX | U1 |
| 1 | MCP1700T-1802E/TT MCP1700x-180xxTT | SOT-23 | U2 |
| 1 | MCP1700T-1202E/TT MCP1700x-120xxTT | SOT-23 | U3 |
| 1 | TXB0104RGYR TXB0104RGY | Texas_S-PVQFN-N14 | U4 |
| 1 | SN74LVC1G07DCKR 74LVC1G07 | SOT-353_SC-70-5 | U5 |
| 1 | ASCO2-27.000MHZ-EK-T3 ASCO | Oscillator_SMD_Abracon_ASCO-4Pin_1.6x1.2mm | X1 |
| 1 | 0472720001 47272-0001 | MOLEX_47272-0001 | J1 |
| 1 | 2-1734839-2 / FH12-22S-0.5SH(55) Conn_01x22_Socket | TE_2-1734839-2_1x22-1MP_P0.5mm_Horizontal | J2 |
| 1 | SFH11-PBPC-D20-ST-BK Conn_02x20_Odd_Even | PinSocket_2x20_P2.54mm_Vertical | J3 |
| 1 | XZMOK68W-2 ORANGE | LED_0402_1005Metric | D1 |
| 24 | CL05B104KP5NNNC 100nF | C_0402_1005Metric | C1, C2, C3, C4, C5, C6, C7, C8 +16 |
| 9 | CL05A105KO5NNNC 1uF | C_0402_1005Metric | C11, C12, C13, C14, C20, C24, C29, C33 +1 |
| 1 | GRM188R61A106ME69D 10uF | C_0603_1608Metric | C15 |
| 5 | GRM155R71C103KA01D 0.01uF | C_0402_1005Metric | C22, C26, C28, C31, C37 |
| 6 | RC1005J000CS 0R | R_0402_1005Metric | R1, R4, R5, R6, R7, R14 |
| 2 | RC0402JR-074K7L 4.7k | R_0402_1005Metric | R2, R3 |
| 1 | RC0402JR-071KL 1k | R_0402_1005Metric | R8 |
| 1 | ERJ-2RKF3480X 348 | R_0402_1005Metric | R9 |
| 2 | ERJ-2RKF1004X 1M | R_0402_1005Metric | R10, R13 |
| 2 | RC0402FR-07100KL 100k | R_0402_1005Metric | R11, R12 |
SN65DSI86 hat design files
The KiCad project lives in the brendena/SN65DSI86_hat repository on GitHub; these links point at the commit this page was built from.
- LayoutEDP Converter.kicad_pcb
- SchematicEDP Converter.kicad_sch
- BOMproduction/bom.csv
SN65DSI86 hat: common questions
How big is the SN65DSI86 hat?
The SN65DSI86 hat measures 55.8 × 58.4 mm, has 4 copper layers and is 1.602 mm thick.
How many components are on the SN65DSI86 hat?
63 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SN65DSI86 hat design files?
From the brendena/SN65DSI86_hat repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SN65DSI86 hat design in my own project?
The repository has no license, so all rights stay with brendena. Use it as a reference, and ask the author before reusing the design.
