Sisu SSE-9 debug pogo adapter
briskspirit·Sisu_SSE-9·subassemblies/debug_pogo_adapter/debug_pogo_adapter.kicad_pcb
About the Sisu SSE-9 debug pogo adapter PCB
Sisu SSE-9 debug pogo adapter is an open source PCB design by briskspirit, published on GitHub under the Unlicense license. It is a 2-layer board measuring 19.5 × 11.5 mm, with 7 components from 4 distinct parts.
It belongs with the power & battery and audio designs in this gallery.
From the project
Experimental six-layer LTE replacement mainboard for the Nokia 3210, built around RP2354B and Telit LE910C1-WWX.

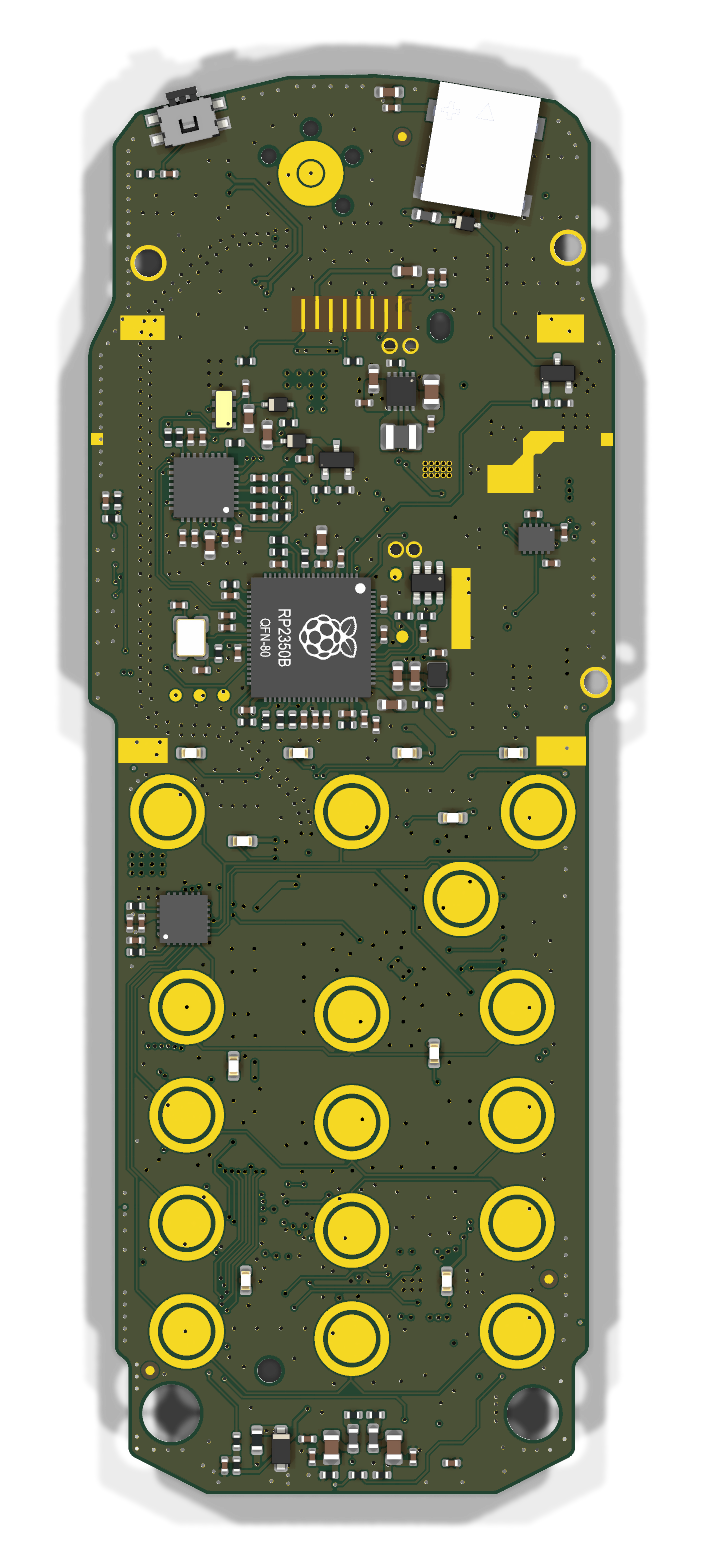

Sisu SSE-9 is an experimental six-layer replacement mainboard for the Nokia 3210 mechanical platform. It keeps the original enclosure, keypad, display, audio contacts, battery contacts, and bottom connector while replacing the electronics with an RP2354B application controller and a Telit LE910C1-WWX LTE module.
Rev B2 has been fabricated and hand assembled. The board is suitable for development and bring-up, but it is not a drop-in production design.

Sisu SSE-9 debug pogo adapter bill of materials (BOM)
7 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MHF4L Conn_01x01_Pin | SAMESKY_CPG-01-TH-B | J2 |
| 1 | 2040852-1 Conn_01x01_Pin | SAMESKY_CPG-01-TH-B | J4 |
| 4 | Conn_01x01_Pin | SAMESKY_CPG-01-TH-B | J5, J6, J7, J8 |
| 1 | Conn_01x07_Pin | JST_PH_B6B-PH-SM4-TB_1x06-1MP_P2.00mm_Vertical_Shell_GND | J9 |
Sisu SSE-9 debug pogo adapter design files
The KiCad project lives in the briskspirit/Sisu_SSE-9 repository on GitHub; these links point at the commit this page was built from.
Sisu SSE-9 debug pogo adapter: common questions
How big is the Sisu SSE-9 debug pogo adapter PCB?
The Sisu SSE-9 debug pogo adapter measures 19.5 × 11.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Sisu SSE-9 debug pogo adapter?
7 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Sisu SSE-9 debug pogo adapter design files?
From the briskspirit/Sisu_SSE-9 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Sisu SSE-9 debug pogo adapter design in my own project?
Yes, under the terms of its Unlicense license, which briskspirit chose for the repository.
