Programming jig PCB layout, top view — open source board by butterstick-fpga
Simulate this board

About the Programming jig PCB

Programming jig is an open source PCB design by butterstick-fpga, published on GitHub. It is a 2-layer board measuring 150 × 69 mm, with 39 components from 16 distinct parts.

Other key parts include the FT232HQ and MCP3008. By type, the board carries 16 capacitors, 11 connectors, 4 resistors, 3 inductors, 2 ICs and 2 fuses.

It belongs with the usb & debug tools designs in this gallery.

From the project

A FT232H based production programming jig for the ButterStick

A simple FT232H based programming jig for the ButterStick.

A simple jig made from PCBs that connects to a ButterStick with pogo-pins.

The board supports - Programming/comms over JTAG. - Voltage sensing via an SPI ADC connected to the FT232H's I/O pins.

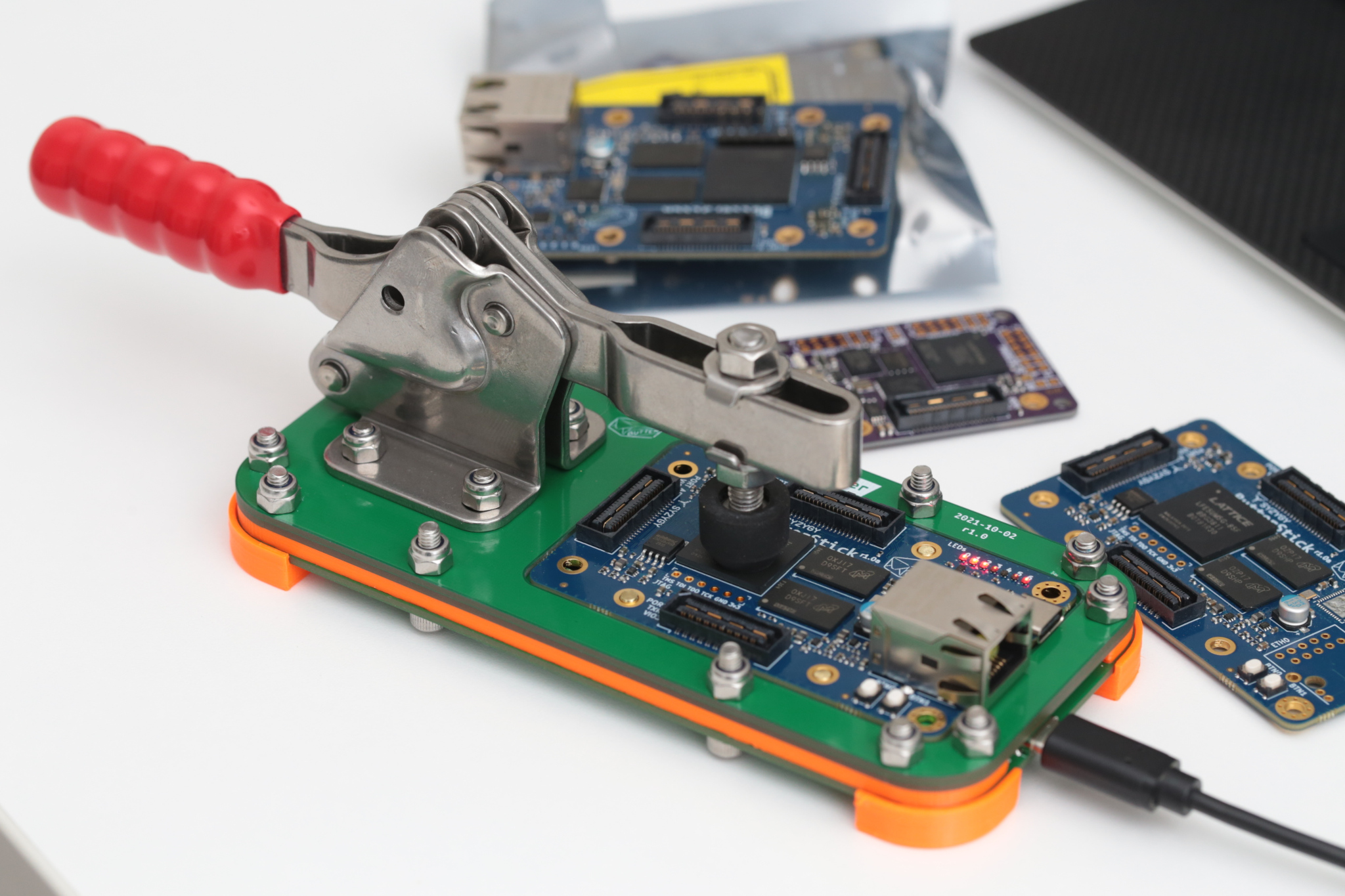

Programming jig, from the project README
From the project README

Main components on the Programming jig

FT232HQMCP3008

Programming jig bill of materials (BOM)

39 components, 16 distinct parts.

QtyPartRefs
1
FT232HQ
U1
1
MCP3008
U2
1
Resonator
Y1
1
TYPE-C-31-M-12
USB_C_Receptacle_USB2.0
J1
1
821-22-006-10-004101
Conn_01x06_Male
J4
1
821-22-002-10-004101
Conn_01x02_Male
J5
8
0906-4-15-20-75-14-11-0
Conn_01x01_Male
J6, J7, J8, J9, J10, J11, J12, J13
2
ASMD0805-020
Polyfuse_Small
F1, F2
3
742792651
Ferrite_Bead_Small
FB1, FB2, FB3
2
GRM155R60J475ME47D
4.7uF
C1, C2
11
GRM155R71C104KA88J
.1uF
C3, C4, C8, C9, C10, C11, C12, C13 +3
1
C0402C103K4RECAUTO
0.1uF
C5
2
C0603C475K9PACTU
4.7uF
C6, C7
1
RC0402JR-074K7L
4.7K
R1
1
ERA-2AEB123X
12K
R2
2
RC0402JR-074K7L
5K1
R3, R4

Programming jig design files

The KiCad project lives in the butterstick-fpga/programming-jig repository on GitHub; these links point at the commit this page was built from.

Programming jig: common questions

How big is the Programming jig PCB?

The Programming jig measures 150 × 69 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Programming jig?

39 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the Programming jig design files?

From the butterstick-fpga/programming-jig repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Programming jig design in my own project?

The repository has no license, so all rights stay with butterstick-fpga. Use it as a reference, and ask the author before reusing the design.
