Syzygy breakout standard

butterstick-fpga·syzygy-breakout-standard·syzygy-breakout-r1.0/kicad-src/syzygy-breakout.kicad_pcb

Syzygy breakout standard layout, top view — open source AVR/Arduino board by butterstick-fpga

About the Syzygy breakout standard

Syzygy breakout standard is an open source AVR/Arduino PCB design by butterstick-fpga, published on GitHub. It is a 4-layer board measuring 45 × 70 mm, with 10 components from 8 distinct parts.

Its main chip is the ATTINY44A-MMH, from the AVR/Arduino family. By type, the board carries 6 connectors, 2 capacitors, 1 IC and 1 resistor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Basic SYZYGY pod breaking out to 0.1" proto area

SYZYGY is an FPGA expansion standard for medium to high speed interfaces. Learn more and check out the specifications here: https://syzygyfpga.io/

A breakout with all 32 I/O pins broken out to a 0.1" header.

A small prototyping area is also provided.

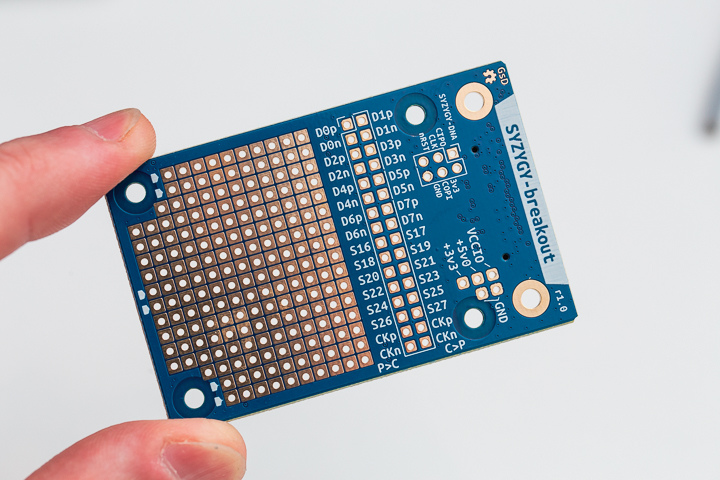

Syzygy breakout standard, from the project README
From the project README

Main components on the Syzygy breakout standard

ATTINY44A-MMH

Syzygy breakout standard bill of materials (BOM)

10 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATTINY44A-MMH
ATtiny44A-MMH
U2
1
QTE-020-01-F-D-A
SYZYGY-STD
J1
1
Conn_02x16_Odd_Even
J2
1
TagConnect
J3
3
Conn_01x01_Male
J4, J5, J6
1
CL05B104KP5NNNC
0.1uF
C9
1
CL05A105KP5NNNC
1uF
C10
1
RMCF0402FT10K0
10K
R15

Syzygy breakout standard design files

The KiCad project lives in the butterstick-fpga/syzygy-breakout-standard repository on GitHub; these links point at the commit this page was built from.

Syzygy breakout standard: common questions

What microcontroller does the Syzygy breakout standard use?

The Syzygy breakout standard is built around the ATTINY44A-MMH, from the AVR/Arduino family.

How big is the Syzygy breakout standard?

The Syzygy breakout standard measures 45 × 70 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Syzygy breakout standard?

10 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Syzygy breakout standard design files?

From the butterstick-fpga/syzygy-breakout-standard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Syzygy breakout standard design in my own project?

The repository has no license, so all rights stay with butterstick-fpga. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Syzygy breakout standard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
