GNBoard (Shield for Arduino Mega)

CarlosGS·GNBot·Electronics/GNBoard_1.0/GNBoard.kicad_pcb

GNBoard (Shield for Arduino Mega) layout, top view — open source AVR/Arduino board by CarlosGS

About the GNBoard (Shield for Arduino Mega)

GNBoard (Shield for Arduino Mega) is an open source AVR/Arduino PCB design by CarlosGS, published on GitHub. It is a board measuring 80.8 × 55.4 mm, with 56 components from 43 distinct parts.

Its main chip is the ARDUINO_MEGA_SHIELD, from the AVR/Arduino family. By type, the board carries 18 resistors, 13 relays, 11 connectors, 5 capacitors, 3 switches and 1 transistor.

It belongs with the robotics & motion, sensors and dev boards & breakouts designs in this gallery.

From the project

A 3D-printable robotic platform for testing swarm algorithms

An efficient solution for powering mobile robots. The GNBoard can also incorporate a ZigBee-compatible module and many other multimodal sensors (a gas detector for odor sensing, an accelerometer/electronic compass, temperature and humidity sensors, luminosity sensors), and multiple kinds of actuators as well (servomotors, a speaker, LEDs, etc).

The motion of the robot is achieved using two continuous rotation servomotors (SM-S4303R) as the main actuators. Servomotors provide a compact and low-cost solution to achieve the digital speed control needed. The main downside of this kind of…

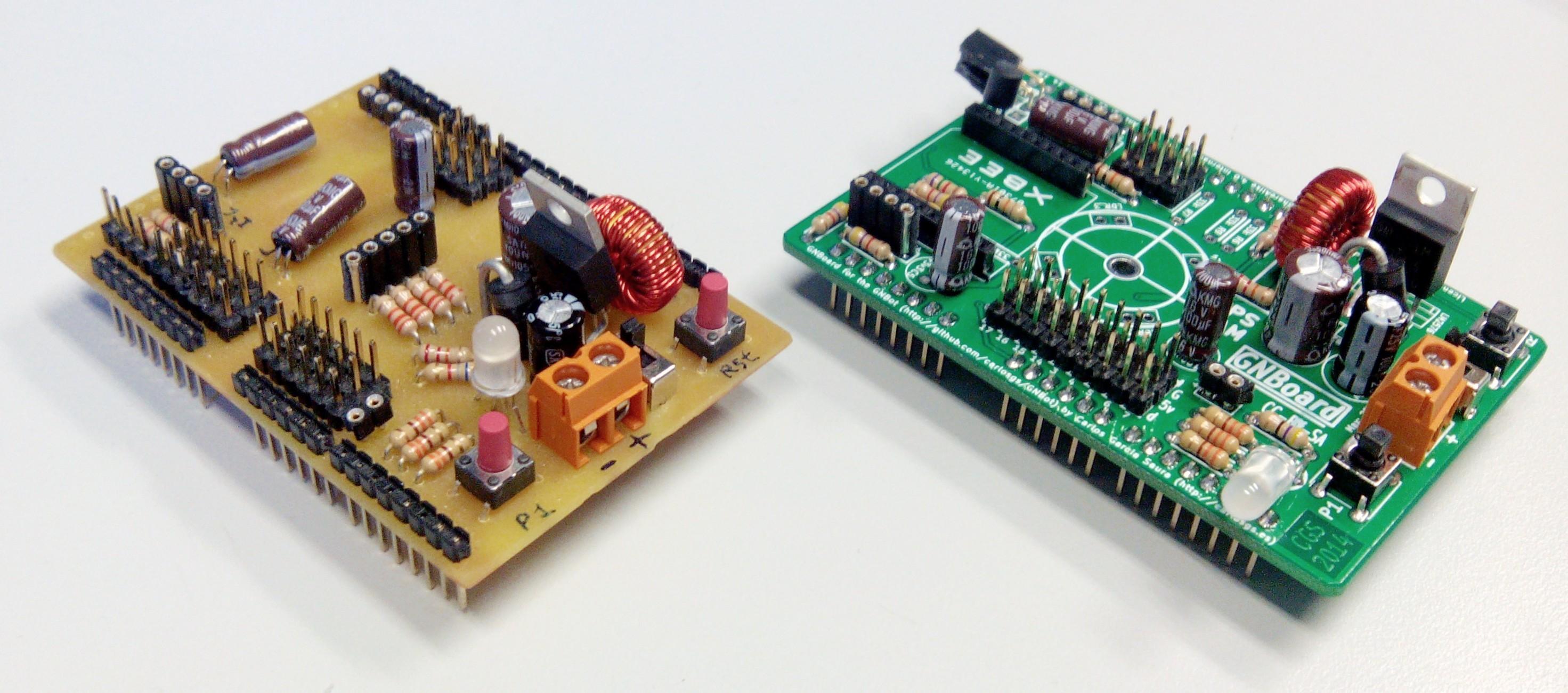

GNBoard (Shield for Arduino Mega), from the project README
From the project README

GNBoard (Shield for Arduino Mega) bill of materials (BOM)

56 components, 43 distinct parts.

QtyPartRefs
1
NPN
Q1
1
Battery
P1
1
LDR_1
P2
1
Spk
P3
1
I2C_1
P4
1
LDR_2
P5
1
DHT_Conn
P6
1
LDR_3
P7
1
LDR_4
P8
1
Nose_Sense
P9
1
Nose_Heater
P10
1
CONN_1
P11
1
P***
1PIN
1
IR1
K1
1
IR2
K2
1
SERVO_1
K3
1
SERVO_2
K4
1
SERVO_3
K5
1
SERVO_4
K6
1
SERVO_5
K7
Show 23 more
QtyPartRefs
1
IR3
K9
1
IR4
K10
1
CNY_1
K11
1
CNY_2
K12
1
CNY_3
K13
1
CNY_4
K14
1
ARDUINO_MEGA_SHIELD
SHIELD1
1
PowerSwitch
SW1
2
SW_PUSH
SW2, SW3
1
LED_RCGB
LED1
1
1N5822
D1
1
100uH
L1
1
100uF
C1
1
1000uF
C2
3
100uF
C3, C4, C5
1
22k
R1
3
330
R2, R3, R4
1
6k8
R5
4
33k
R6, R7, R8, R9
4
4k7
R10, R11, R15, R16
3
10k
R12, R13, R14
1
7k5
R17
1
47
R18

GNBoard (Shield for Arduino Mega) design files

The KiCad project lives in the CarlosGS/GNBot repository on GitHub; these links point at the commit this page was built from.

GNBoard (Shield for Arduino Mega): common questions

What microcontroller does the GNBoard (Shield for Arduino Mega) use?

The GNBoard (Shield for Arduino Mega) is built around the ARDUINO_MEGA_SHIELD, from the AVR/Arduino family.

How big is the GNBoard (Shield for Arduino Mega)?

The GNBoard (Shield for Arduino Mega) measures 80.8 × 55.4 mm and is 1.6 mm thick.

How many components are on the GNBoard (Shield for Arduino Mega)?

56 components, from 43 distinct parts. The full bill of materials is listed on this page.

Where can I download the GNBoard (Shield for Arduino Mega) design files?

From the CarlosGS/GNBot repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the GNBoard (Shield for Arduino Mega) design in my own project?

The repository has no license, so all rights stay with CarlosGS. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the GNBoard (Shield for Arduino Mega) without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
