Morphesp240-addon devboard
About the Morphesp240-addon devboard PCB

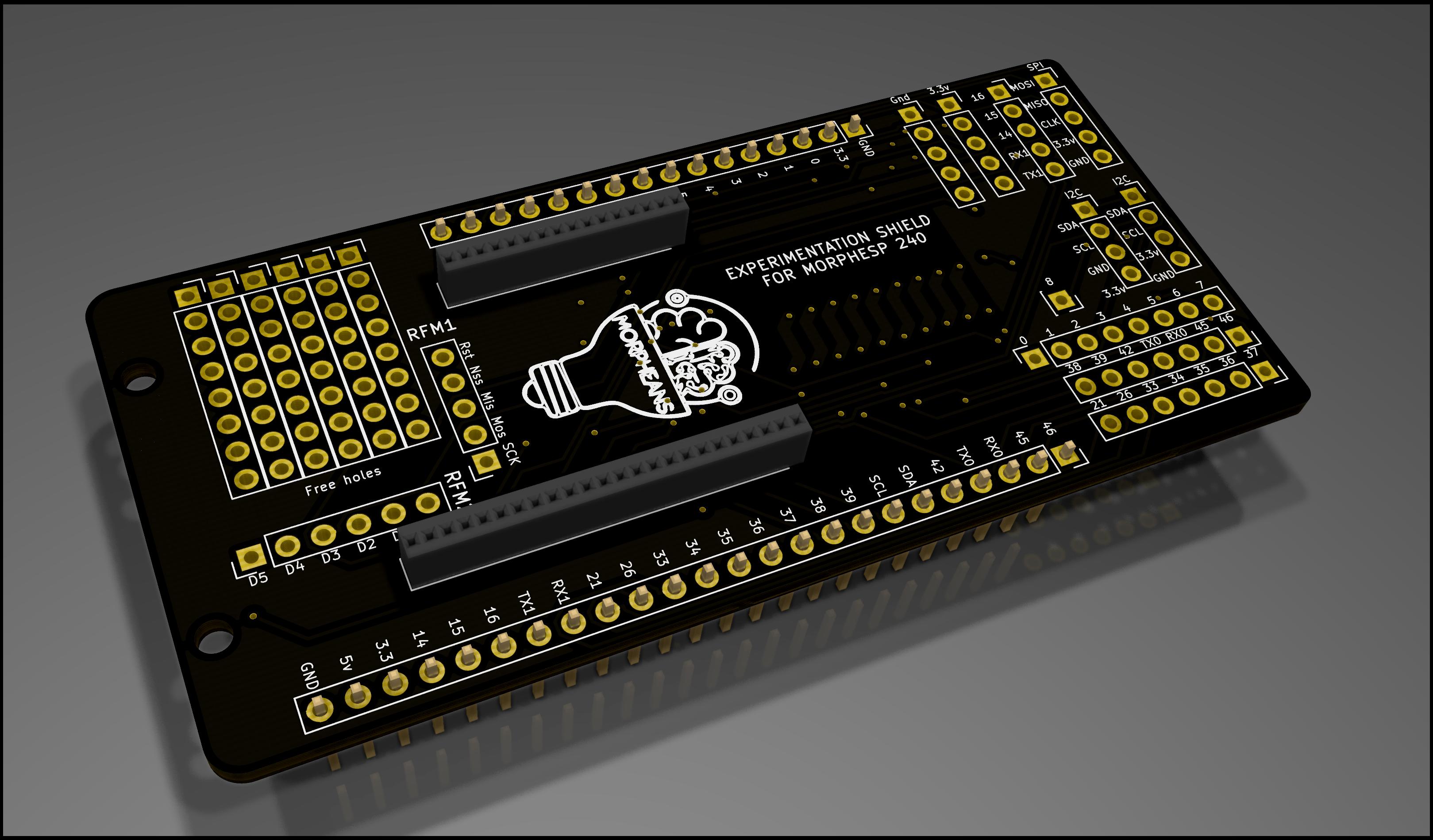

Morphesp240-addon devboard is an open source PCB design by ccadic, published on GitHub. It is a 2-layer board measuring 41.9 × 88.9 mm, with 24 components from 23 distinct parts.
Other key parts include the RFM95W-868S2. By type, the board carries 22 connectors, 1 IC and 1 antenna.
It belongs with the dev boards & breakouts designs in this gallery.
Main components on the Morphesp240-addon devboard
Morphesp240-addon devboard bill of materials (BOM)
24 components, 23 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RFM95W-868S2 | RFM95W_long | U1 |
| 1 | Cnx1 | PinSocket_1x16_P2.54mm_Vertical | J1 |
| 1 | Cnx1 | Socket_Strip_Straight_1x16_Pitch1.27mm | J2 |
| 1 | Con2 | Socket_Strip_Straight_1x24_Pitch1.27mm | J3 |
| 1 | Conn_01x24_Male | PinSocket_1x24_P2.54mm_Vertical | J4 |
| 1 | SPI_cx | PinSocket_1x05_P2.54mm_Vertical | J5 |
| 1 | SDA_a | PinSocket_1x04_P2.54mm_Vertical | J6 |
| 1 | SDA_b | PinSocket_1x04_P2.54mm_Vertical | J7 |
| 1 | GPIO_1 | PinSocket_1x08_P2.54mm_Vertical | J8 |
| 1 | GPIO_2 | PinSocket_1x07_P2.54mm_Vertical | J9 |
| 1 | GPIO_3 | PinSocket_1x07_P2.54mm_Vertical | J10 |
| 1 | Gpio_4 | PinSocket_1x01_P2.54mm_Vertical | J11 |
| 1 | Gpio_5 | PinSocket_1x05_P2.54mm_Vertical | J12 |
| 2 | C3V | PinSocket_1x05_P2.54mm_Vertical | J13, J14 |
| 1 | freec1 | PinSocket_1x08_P2.54mm_Vertical | J15 |
| 1 | freec2 | PinSocket_1x08_P2.54mm_Vertical | J16 |
| 1 | freec3 | PinSocket_1x08_P2.54mm_Vertical | J17 |
| 1 | freec5 | PinSocket_1x08_P2.54mm_Vertical | J18 |
| 1 | freec6 | PinSocket_1x08_P2.54mm_Vertical | J19 |
| 1 | freec4 | PinSocket_1x08_P2.54mm_Vertical | J20 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RFM1 | PinSocket_1x05_P2.54mm_Vertical | J21 |
| 1 | RFM2 | PinHeader_1x06_P2.54mm_Vertical | J23 |
| 1 | Conn_01x01_Female | Texas_SWRA416_868MHz_915MHz | Ant 868 Mhz |
Morphesp240-addon devboard design files
The KiCad project lives in the ccadic/morphesp240-addon-devboard repository on GitHub; these links point at the commit this page was built from.
- LayoutESP32-S2-WROOM.kicad_pcb
Morphesp240-addon devboard: common questions
How big is the Morphesp240-addon devboard PCB?
The Morphesp240-addon devboard measures 41.9 × 88.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Morphesp240-addon devboard?
24 components, from 23 distinct parts. The full bill of materials is listed on this page.
Where can I download the Morphesp240-addon devboard design files?
From the ccadic/morphesp240-addon-devboard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Morphesp240-addon devboard design in my own project?
The repository has no license, so all rights stay with ccadic. Use it as a reference, and ask the author before reusing the design.
