Opamp vos is an open source PCB design by cellularmitosis, published on GitHub under the MIT license. It is a 2-layer board measuring 99.7 × 49.5 mm, with 94 components from 21 distinct parts.
Other key parts include the UA741, OP07, LM358 and LM324. By type, the board carries 44 resistors, 20 capacitors, 15 test points, 4 ICs, 4 jumpers and 3 diodes.
From the project

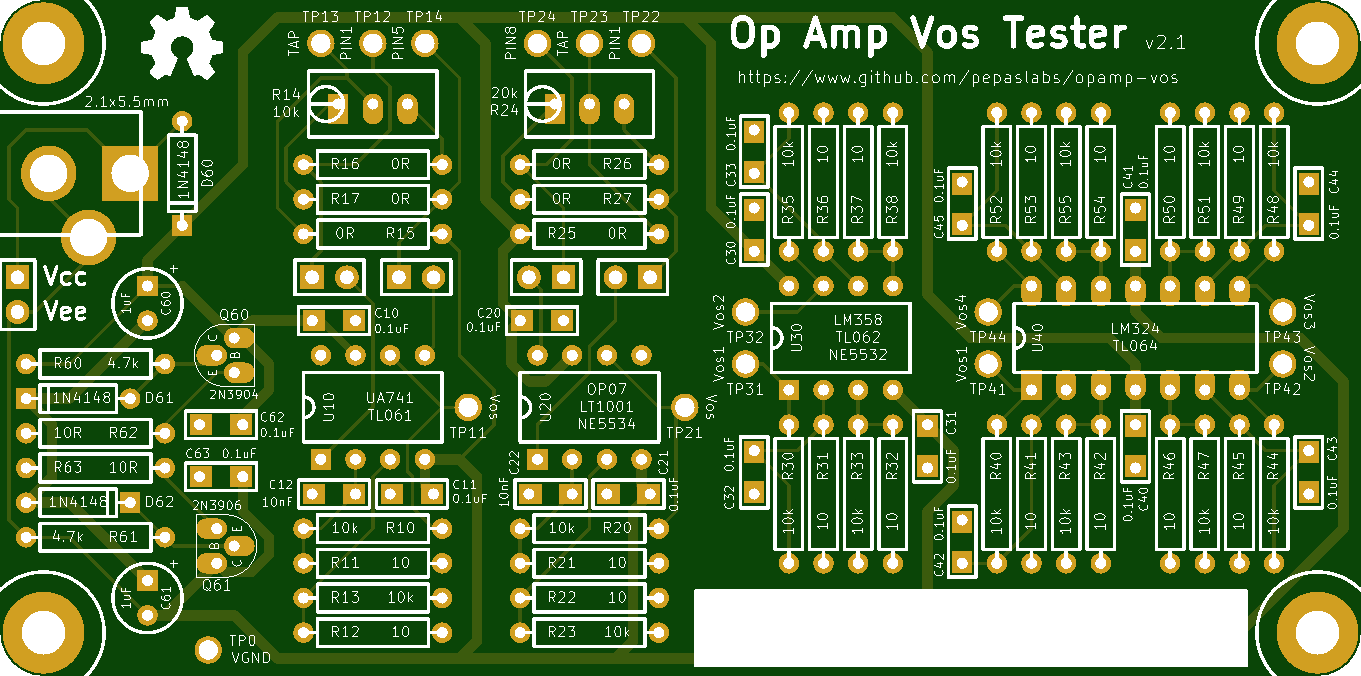

A board to measure the Vos (input offset voltage) of op amps.
A board to measure the Vos (input offset voltage) of op amps.
This board design is Open-Source Hardware. It is licensed under the MIT License. It was designed by Jason Pepas.
Main components on the Opamp vos
Opamp vos bill of materials (BOM)
94 components, 21 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | UA741 | DIP8_059A_PL | U10 |
| 1 | OP07 | DIP8_059A_PL | U20 |
| 1 | LM358 | DIP8_059A_PL | U30 |
| 1 | LM324 | DIP14_PL | U40 |
| 1 | 2N3904 | TO-92_Q_EBC_059Bo_PL | Q60 |
| 1 | 2N3906 | TO-92_Q_EBC_059Bo_PL | Q61 |
| 1 | BARREL_JACK | BARREL_JACK_21x55 | CON60 |
| 1 | CONN_2X1 | SIL-2 | P60 |
| 4 | JUMPER | SIL-2 | JP10, JP11, JP20, JP21 |
| 15 | TEST | TEST | TP0, TP11, TP12, TP13, TP14, TP21, TP22, TP23 +7 |
| 3 | 1N4148 | DIODE_SS_059A_03_PL | D60, D61, D62 |
| 16 | 0.1uF | CERCAP_15_059B_0805 | C10, C11, C20, C21, C30, C31, C32, C33 +8 |
| 2 | 10nF | CERCAP_15_059B_0805 | C12, C22 |
| 2 | 1uF | ELCAP_10_20_V_059A | C60, C61 |
| 16 | 10k | R_AXIAL_0W25_059A_PL | R10, R13, R20, R23, R30, R33, R35, R38 +8 |
| 16 | 10 | R_AXIAL_0W25_059A_PL | R11, R12, R21, R22, R31, R32, R36, R37 +8 |
| 1 | 10k | 3296W_PL | R14 |
| 6 | 0R | R_AXIAL_0W25_059A_PL | R15, R16, R17, R25, R26, R27 |
| 1 | 20k | 3296W_PL | R24 |
| 2 | 4.7k | R_AXIAL_0W25_059A_PL | R60, R61 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 10R | R_AXIAL_0W25_059A_PL | R62, R63 |
