LabFromAChip PCB layout, top view — open source Raspberry Pi board by cheapjack

About the LabFromAChip PCB

LabFromAChip is an open source Raspberry Pi PCB design by cheapjack, published on GitHub. It is a 2-layer board measuring 132.1 × 66.7 mm, with 15 components from 6 distinct parts.

Its main chip is the Raspberry_Pi_2_3_0, from the Raspberry Pi family. By type, the board carries 4 switches, 4 diodes, 4 resistors, 1 connector, 1 battery holder and 1 LED.

It belongs with the displays & leds designs in this gallery.

From the project

Exploring agency in biological practice

Lab-from-a-chip is a DIY intervention in Lab On A Chip technology using model organisms inspired by Science and Technology studies and scientific practice and part of Ross Dalziel's PhD research, Critical Kits at the Division for BioMedical Life Sciences at Lancaster University (BLS) and makerspace DoESLiverpool.

\"A lab-on-a-chip is a device that integrates one or several laboratory functions on a single integrated circuit of only millimeters to a few square centimeters to achieve automation and high-throughput screening.\" via Wikipedia

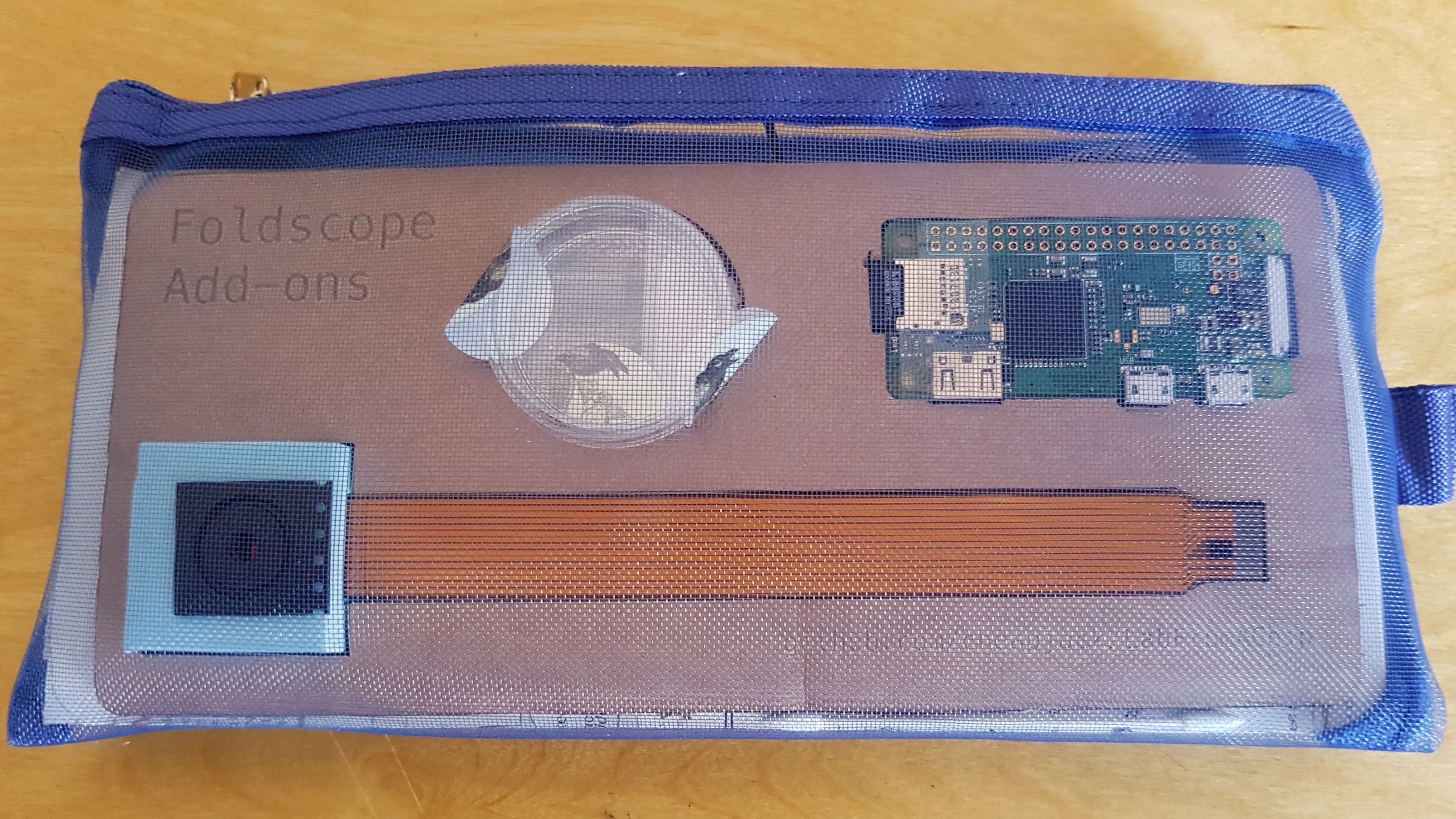

LabFromAChip, from the project README
From the project README

LabFromAChip bill of materials (BOM)

15 components, 6 distinct parts.

QtyPartRefs
1
Raspberry_Pi_2_3_0
J2
1
CR2032
BT1
4
SW_Push
SW1, SW2, SW3, SW4
1
SSD1306
Brd1
4
LED
D1, D2, D3, D4
4
220
R1, R2, R3, R4

LabFromAChip design files

The KiCad project lives in the cheapjack/LabFromAChip repository on GitHub; these links point at the commit this page was built from.

LabFromAChip: common questions

What microcontroller does the LabFromAChip use?

The LabFromAChip is built around the Raspberry_Pi_2_3_0, from the Raspberry Pi family.

How big is the LabFromAChip PCB?

The LabFromAChip measures 132.1 × 66.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LabFromAChip?

15 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the LabFromAChip design files?

From the cheapjack/LabFromAChip repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the LabFromAChip design in my own project?

The repository has no license, so all rights stay with cheapjack. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the LabFromAChip without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
