About the MCU-data logger PCB

MCU-data logger is an open source AVR/Arduino PCB design by chislonljoseph, published on GitHub. It is a 4-layer board measuring 53.1 × 35.5 mm, with 25 components from 16 distinct parts.

Its main chip is the ATMEGA328P-AN, from the AVR/Arduino family. Other key parts include the DS1337S_ and 24LC1025. By type, the board carries 7 resistors, 5 capacitors, 4 ICs, 4 connectors, 2 crystals and 2 diodes.

From the project

MCU Data Logger PCB Design using KiCad

A custom PCB designed in KiCad for an ATmega328P-based MCU Data Logger. This project demonstrates the complete PCB design workflow, from schematic capture and PCB layout to 4-layer stackup conversion and Gerber generation for fabrication.

- Complete schematic design - Footprint assignment - 2-layer PCB layout - Conversion to 4-layer PCB stackup - Design Rule Check (DRC) - Copper pour - Gerber generation - Git version control

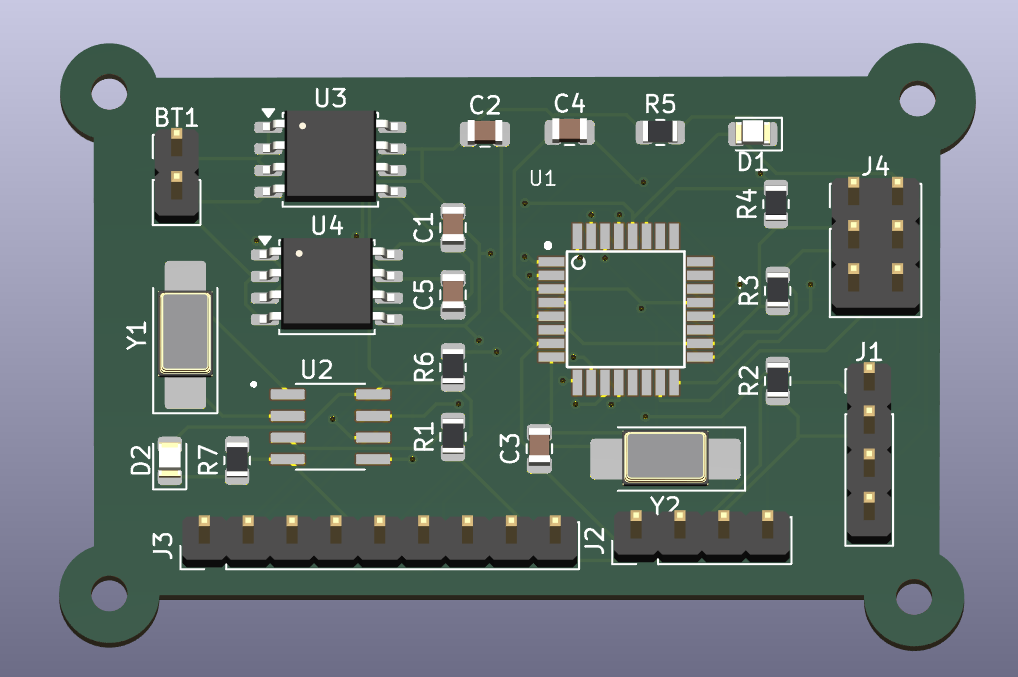

MCU-data logger, from the project README
From the project README

Main components on the MCU-data logger

MCU-data logger bill of materials (BOM)

25 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA328P-AN
U1
1
DS1337S_
U2
2
24LC1025
U3, U4
1
32.768KHZ
32.768Khz
Y1
1
16MHZ
16MHz
Y2
2
CONN_01X04_PIN
Conn_01x04_Pin
J1, J2
1
CONN_01X09_PIN
Conn_01x09_Pin
J3
1
CONN_02X03_ODD_EVEN
Conn_02x03_Odd_Even
J4
1
Battery
BT1
2
LED
D1, D2
2
0.1UF
0.1uF
C1, C4
2
22PF
22pF
C2, C3
1
100NF
100nF
C5
3
10K
10k
R1, R2, R6
2
4.7K
4.7k
R3, R4
2
330
R5, R7

MCU-data logger design files

The KiCad project lives in the chislonljoseph/MCU-data-logger repository on GitHub; these links point at the commit this page was built from.

MCU-data logger: common questions

What microcontroller does the MCU-data logger use?

The MCU-data logger is built around the ATMEGA328P-AN, from the AVR/Arduino family.

How big is the MCU-data logger PCB?

The MCU-data logger measures 53.1 × 35.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the MCU-data logger?

25 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MCU-data logger design files?

From the chislonljoseph/MCU-data-logger repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MCU-data logger design in my own project?

The repository has no license, so all rights stay with chislonljoseph. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the MCU-data logger without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
