About the Super3DMaker PCB

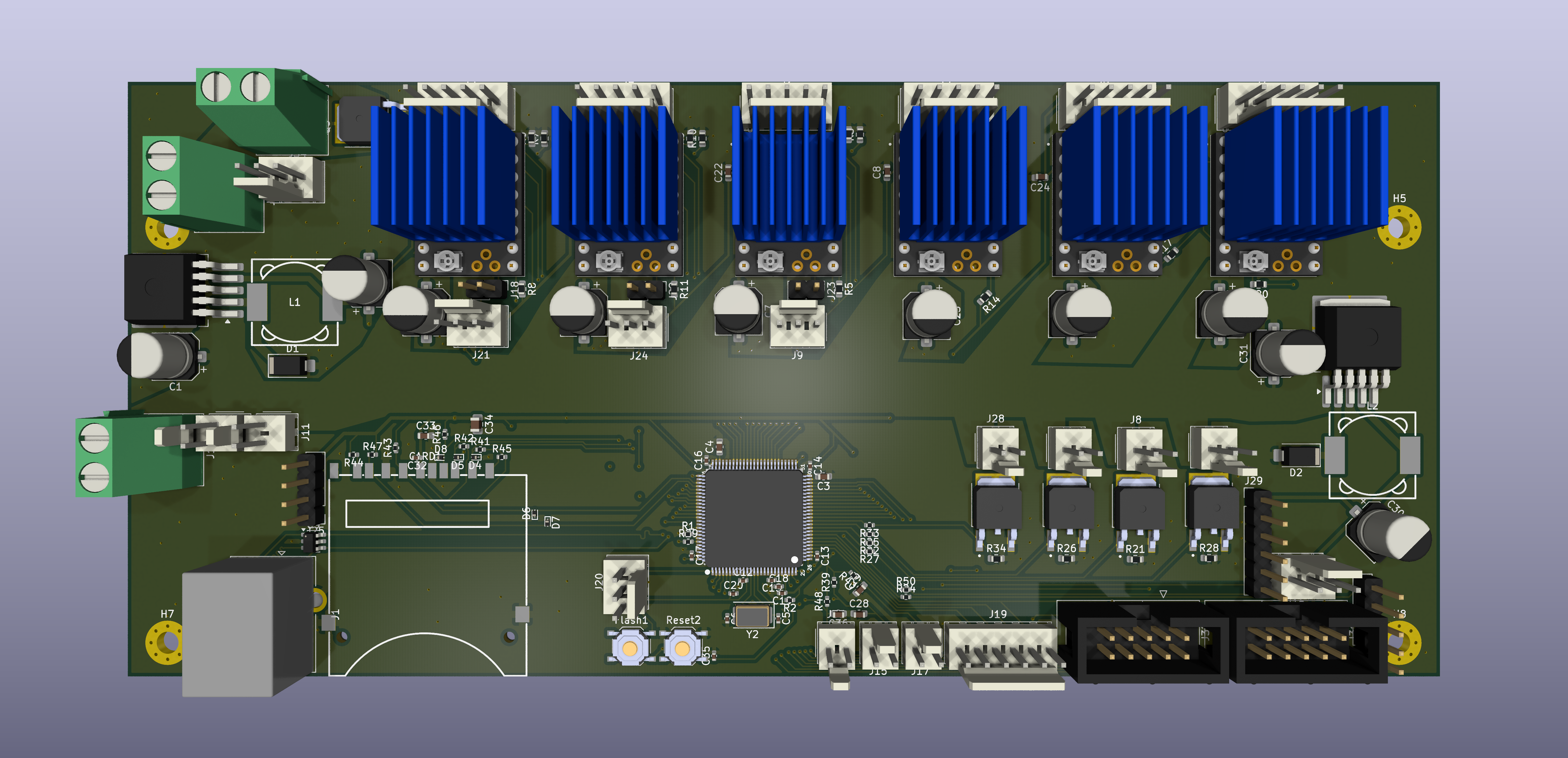

Super3DMaker is an open source STM32 PCB design by ChladpavPy, published on GitHub. It is a 4-layer board measuring 189.6 × 85.9 mm, with 142 components from 50 distinct parts.
Its main chip is the STM32F407VET6, from the STM32 family. Other key parts include the TMC2209_SILENTSTEPSTICK, C42421958, C42421959 and C7519. By type, the board carries 43 resistors, 36 capacitors, 34 connectors, 10 ICs, 8 diodes and 5 transistors.
It belongs with the robotics & motion designs in this gallery.
From the project
So first I want to explain, why I started this project. I had an old Profi3DMaker 3D printer at home, which was not used for a long time, mainly because of the hardware, which was just outdated. Because the printer had electronics probably from years like 2012 and older, it was m
So first I want to explain, why I started this project. I had an old Profi3DMaker 3D printer at home, which was not used for a long time, mainly because of the hardware, which was just outdated. Because the printer had electronics probably from years like 2012 and older, it was my idea to bring it again to life, because the tech of 3D printing and electronics changed a lot. The 3D printer actually works, but does not stand a chance to modern machines which would be even cheaper based on the materials. Back in 2012, this printer was high-end and one of the most expensive 3D printers, you could…
Main components on the Super3DMaker
Super3DMaker bill of materials (BOM)
142 components, 50 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F407VET6 | LQFP100-0.5-13.8X13.8MM | IC1 |
| 6 | TMC2209_SILENTSTEPSTICK | MODULE_TMC2209_SILENTSTEPSTICK | U1, U3, U4, U5, U6, U7 |
| 1 | C42421958 LM2596S-3.3 | TO-263-5_TabPin3 | U2 |
| 1 | C42421959 LM2596S-5 | TO-263-5_TabPin3 | U8 |
| 1 | C7519 USBLC6-2SC6 | SOT-23-6 | U9 |
| 5 | C99124 AOD4184A | DPAK228P994X240-4N | Q1, Q2, Q3, Q4, Q5 |
| 1 | C115962 8MHz | Crystal_SMD_5032-2Pin_5.0x3.2mm | Y2 |
| 1 | C498173 USB_B | USB_B_OST_USB-B1HSxx_Horizontal | J1 |
| 6 | CONN_01X05_PIN Conn_01x05_Pin | Molex_KK-254_AE-6410-05A_1x05_P2.54mm_Vertical | J2, J3, J4, J5, J6, J7 |
| 3 | SCREW_TERMINAL_01X02 Screw_Terminal_01x02 | Molex_KK-254_AE-6410-02A_1x02_P2.54mm_Vertical | J8, J26, J28 |
| 3 | CONN_01X03_PIN Conn_01x03_Pin | Molex_KK-254_AE-6410-03A_1x03_P2.54mm_Vertical | J9, J21, J24 |
| 3 | SCREW_TERMINAL_01X02 Screw_Terminal_01x02 | TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal | J10, J14, J27 |
| 1 | SCREW_TERMINAL_01X02_FAN0 Screw_Terminal_01x02_FAN0 | Molex_KK-254_AE-6410-02A_1x02_P2.54mm_Vertical | J11 |
| 1 | SCREW_TERMINAL_01X02_FAN1 Screw_Terminal_01x02_FAN1 | Molex_KK-254_AE-6410-02A_1x02_P2.54mm_Vertical | J12 |
| 1 | SCREW_TERMINAL_01X02_FAN2 Screw_Terminal_01x02_FAN2 | Molex_KK-254_AE-6410-02A_1x02_P2.54mm_Vertical | J13 |
| 1 | TH_EXTRUDER | Molex_KK-254_AE-6410-02A_1x02_P2.54mm_Vertical | J15 |
| 1 | CONN_01X03_PIN_NEOPIXEL Conn_01x03_Pin_Neopixel | Molex_KK-254_AE-6410-03A_1x03_P2.54mm_Vertical | J16 |
| 1 | TH_BED | Molex_KK-254_AE-6410-02A_1x02_P2.54mm_Vertical | J17 |
| 3 | CONN_01X02_PIN Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Vertical | J18, J22, J23 |
| 1 | ADXL345 | Molex_KK-254_AE-6410-06A_1x06_P2.54mm_Vertical | J19 |
Show 30 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | FILAMENT_Runout_Sensor | Molex_KK-254_AE-6410-03A_1x03_P2.54mm_Vertical | J20 |
| 1 | CONN_01X04_PIN Conn_01x04_Pin | PinHeader_1x04_P2.54mm_Vertical | J25 |
| 1 | CONN_01X06_PIN Conn_01x06_Pin | PinHeader_1x06_P2.54mm_Vertical | J29 |
| 1 | CR_TOUCH | PinHeader_1x05_P2.54mm_Vertical | J30 |
| 1 | EPX1 | IDC-Header_2x05_P2.54mm_Vertical | J31 |
| 1 | EPX2 | IDC-Header_2x05_P2.54mm_Vertical | J32 |
| 1 | TH_EXTRUDER2 | Molex_KK-254_AE-6410-02A_1x02_P2.54mm_Vertical | J33 |
| 1 | CONN_01X03_PIN_LASER Conn_01x03_Pin_Laser | Molex_KK-254_AE-6410-03A_1x03_P2.54mm_Vertical | J34 |
| 1 | C125615 ~ SOFNG(硕方) | SD_KARTA_OPRAVENA | CARD1 |
| 1 | C318884 Flash | SW_Push_1P1T_XKB_TS-1187A | Flash1 |
| 1 | C318884 Reset | SW_Push_1P1T_XKB_TS-1187A | Reset2 |
| 2 | C22452 SS54 | D_SMA | D1, D2 |
| 1 | C2286 LED | LED0603-RD | D3 |
| 5 | C96512 ESD9B3.3ST5G | D_SOD-923 | D4, D5, D6, D7, D8 |
| 2 | C9906 47uH | IND-SMD_L12.3-W12.3 | L1, L2 |
| 10 | C3352 100uF | CP_Elec_6.3x7.7 | C1, C2, C7, C10, C21, C23, C25, C27 +2 |
| 2 | C23630 2.2uF | C_0603_1608Metric | C3, C4 |
| 2 | C1562 33pF | C_0402_1005Metric | C5, C6 |
| 6 | C14663 100nF | C_0603_1608Metric | C8, C9, C11, C22, C24, C26 |
| 9 | C307331 100nF | C_0402_1005Metric | C12, C13, C14, C15, C16, C17, C18, C19 +1 |
| 3 | C14663 10uF | C_0603_1608Metric | C28, C29, C36 |
| 1 | C14663 100nF | C_0402_1005Metric | C32 |
| 1 | C19702 10uF | C_0603_1608Metric | C33 |
| 1 | C14663 10uF | C_0805_2012Metric | C34 |
| 1 | C1525 100nF | C_0402_1005Metric | C35 |
| 10 | C25804 10K | R_0402_1005Metric | R1, R2, R24, R41, R42, R43, R44, R45 +2 |
| 23 | C25804 10K | R_0603_1608Metric | R3, R4, R5, R6, R7, R8, R9, R10 +15 |
| 6 | C25104 330R | R_0402_1005Metric | R22, R25, R27, R29, R33, R50 |
| 1 | C17673 4.7K | R_0805_2012Metric | R23 |
| 3 | C25900 4.7K | R_0402_1005Metric | R39, R40, R48 |
Super3DMaker design files
The KiCad project lives in the ChladpavPy/Super3DMaker repository on GitHub; these links point at the commit this page was built from.
Super3DMaker: common questions
What microcontroller does the Super3DMaker use?
The Super3DMaker is built around the STM32F407VET6, from the STM32 family.
How big is the Super3DMaker PCB?
The Super3DMaker measures 189.6 × 85.9 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Super3DMaker?
142 components, from 50 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Super3DMaker design files?
From the ChladpavPy/Super3DMaker repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Super3DMaker design in my own project?
The repository has no license, so all rights stay with ChladpavPy. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Super3DMaker without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
