About the Rf agent PCB

Rf agent is an open source PCB design by cholan2100, published on GitHub. It is a 2-layer board measuring 35 × 20 mm, with 4 components from 4 distinct parts.

By type, the board carries 2 connectors, 1 inductor and 1 capacitor.

It belongs with the audio designs in this gallery.

From the project

Containerized Linux engineering platform for automated RF/microwave design, KiCad 10, openEMS, Qucs-S, FreeCAD, and AI-driven hardware synthesis.

This reference example was designed and generated fully autonomously by the rf-agent AI. No human intervention, pre-made template files, or manual GUI clicking were involved in the CAD creation or solver execution. The agent interpreted a natural language prompt, mathematically derived the circuit specifications, and drove the 9-stage engineering toolchain seamlessly.

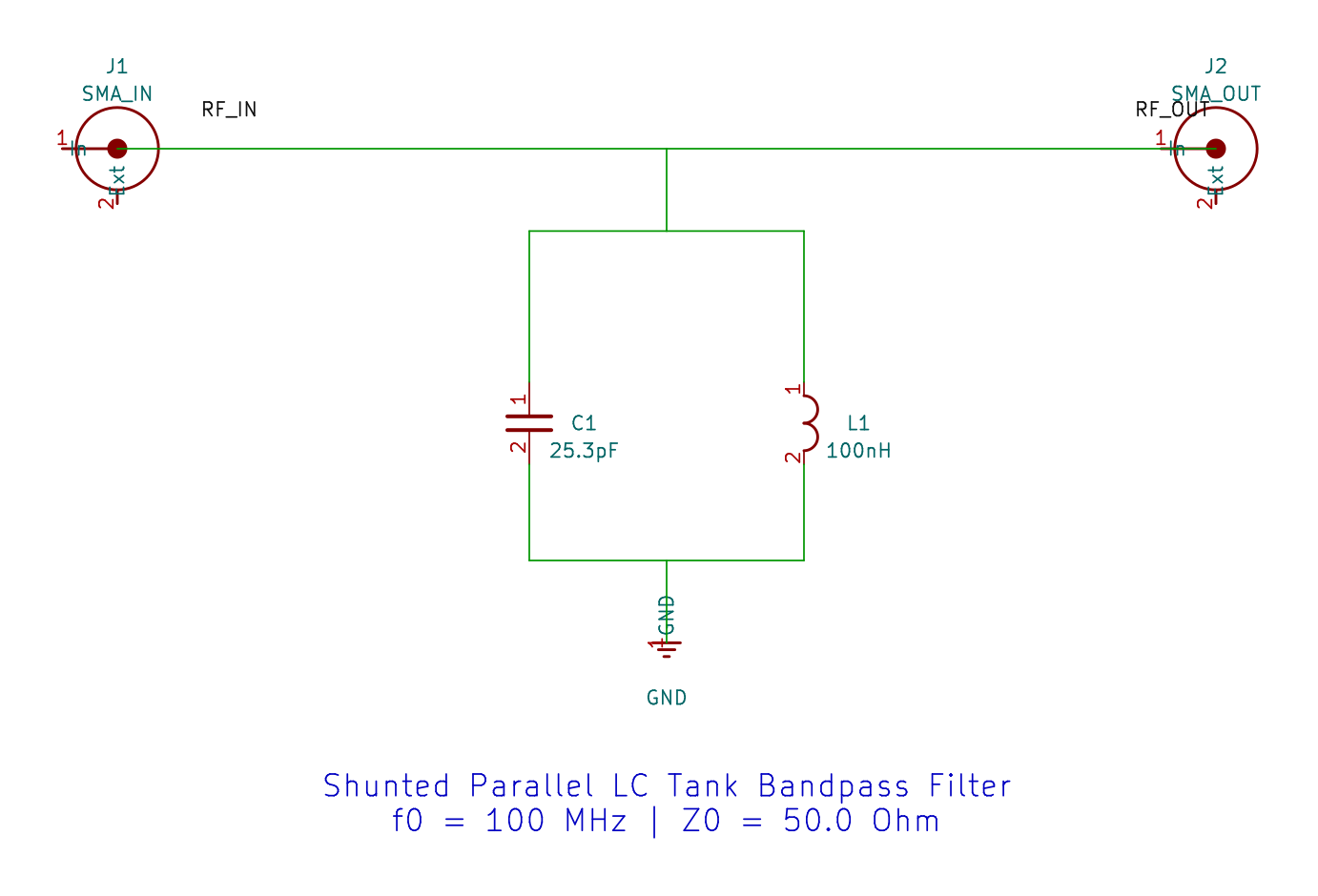

Rf agent, from the project README
From the project README

Rf agent bill of materials (BOM)

4 components, 4 distinct parts.

QtyPartRefs
1
SMA_IN
J1
1
SMA_OUT
J2
1
100nH
L1
1
25.3pF
C1

Rf agent design files

The KiCad project lives in the cholan2100/rf-agent repository on GitHub; these links point at the commit this page was built from.

Rf agent: common questions

How big is the Rf agent PCB?

The Rf agent measures 35 × 20 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rf agent?

4 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rf agent design files?

From the cholan2100/rf-agent repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Rf agent design in my own project?

The repository has no license, so all rights stay with cholan2100. Use it as a reference, and ask the author before reusing the design.
