About the EleLab v2 Bus100 PCB
EleLab v2 Bus100 is an open source PCB design by Chrismettal, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 100 × 100 mm, with 37 components from 7 distinct parts.
It belongs with the test & measurement, audio and power & battery designs in this gallery.
From the project

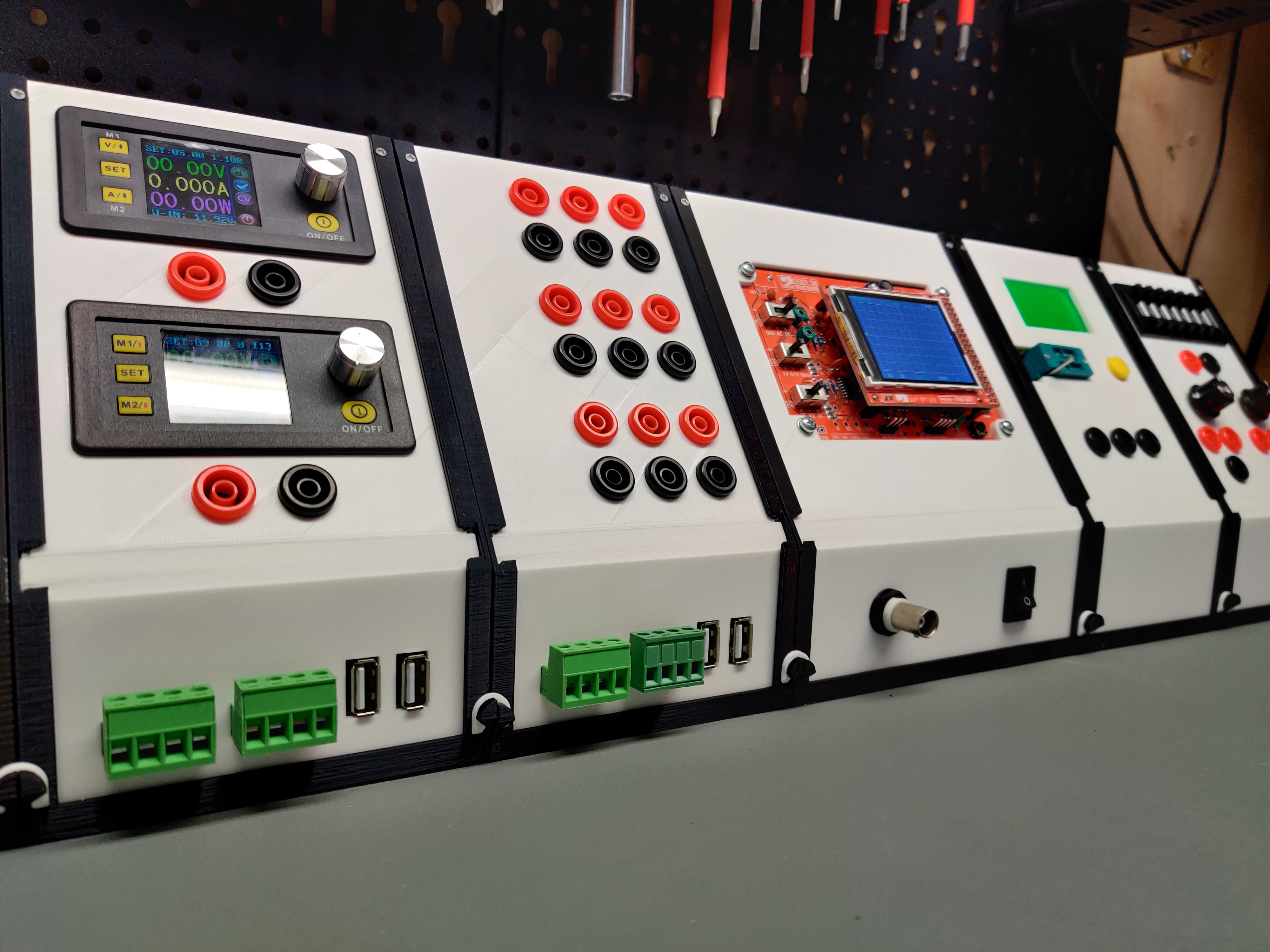

Cheap DIY lab system for hobbyists and the tinkering folk
- Buying - The concept - The PCBs - Bus100 / Bus150 - PowerFeed - Frontpanel\_a - The modules - Supplies - Supply from ATX/SFX - Supply from XT60/Barrel - Supply from Meanwell PSU - Supply from Bosch 18 V Battery - Lab PSU fixed - Lab PSU variable - Oscilloscope DSO138 - Resistor decade - Performance - Component tester - Raspberry Pi - Display - Electronic Load - Signal generator - Audio amplifier / signal tracer - TS100 Soldering station - Tips and tricks
EleLab v2 Bus100 bill of materials (BOM)
37 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Conn_02x08_Odd_Even | PinHeader_2x08_P2.54mm_Horizontal_NoSilk | J1, J2 |
| 2 | Conn_02x08_Odd_Even | PinSocket_2x08_P2.54mm_Horizontal_NoSilk | J3, J4 |
| 8 | +24 V | PinHeader_1x01_P2.54mm_Vertical | J5, J6, J7, J8, J9, J10, J11, J12 |
| 8 | +12 V | PinHeader_1x01_P2.54mm_Vertical | J13, J14, J15, J16, J17, J18, J19, J20 |
| 8 | +5 V | PinHeader_1x01_P2.54mm_Vertical | J21, J22, J23, J24, J25, J26, J27, J28 |
| 8 | GND | PinHeader_1x01_P2.54mm_Vertical | J29, J30, J31, J32, J33, J34, J35, J36 |
| 1 | Binary_6_Logo | Binary_6_v0.1 | LO_1 |
EleLab v2 Bus100 design files
The KiCad project lives in the Chrismettal/EleLab_v2 repository on GitHub; these links point at the commit this page was built from.
EleLab v2 Bus100: common questions
How big is the EleLab v2 Bus100 PCB?
The EleLab v2 Bus100 measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the EleLab v2 Bus100?
37 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the EleLab v2 Bus100 design files?
From the Chrismettal/EleLab_v2 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the EleLab v2 Bus100 design in my own project?
Yes, under the terms of its GPL-3.0 license, which Chrismettal chose for the repository.
