Kicad-486-CPU-interposer

ciprian-stingu·Kicad-486-CPU-interposer

Kicad-486-CPU-interposer PCB layout, top view — open source board by ciprian-stingu

About the Kicad-486-CPU-interposer PCB

Kicad-486-CPU-interposer is an open source PCB design by ciprian-stingu, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 61.2 × 71.4 mm, with 5 components from 5 distinct parts.

Other key parts include the 486SOCKET. By type, the board carries 4 connectors and 1 IC.

It belongs with the usb & debug tools designs in this gallery.

From the project

486 Cpu Interposer

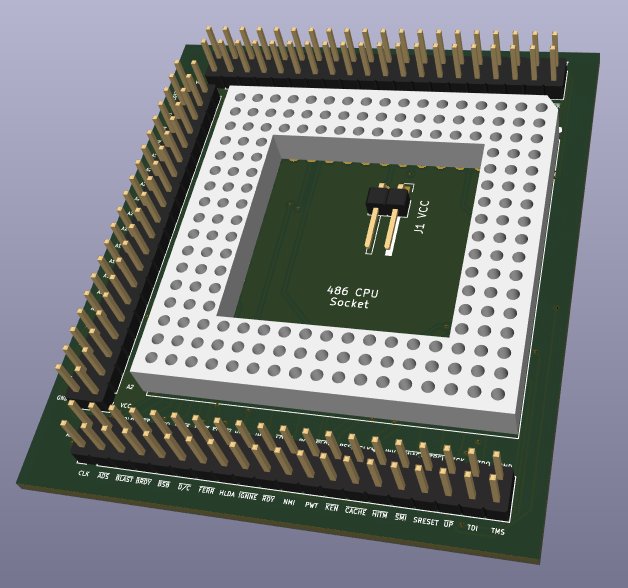

Kicad-486-CPU-interposer, from the project README
From the project README

Main components on the Kicad-486-CPU-interposer

486SOCKET

Kicad-486-CPU-interposer bill of materials (BOM)

5 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
486SOCKET
486Socket
U1
1
Data Conn
J1
1
Addr Conn
J2
1
Ctrl Conn
J3
1
J1 VCC
J4

Kicad-486-CPU-interposer design files

The KiCad project lives in the ciprian-stingu/Kicad-486-CPU-interposer repository on GitHub; these links point at the commit this page was built from.

Kicad-486-CPU-interposer: common questions

How big is the Kicad-486-CPU-interposer PCB?

The Kicad-486-CPU-interposer measures 61.2 × 71.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kicad-486-CPU-interposer?

5 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Kicad-486-CPU-interposer design files?

From the ciprian-stingu/Kicad-486-CPU-interposer repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Kicad-486-CPU-interposer design in my own project?

Yes, under the terms of its GPL-3.0 license, which ciprian-stingu chose for the repository.
