About the SCARTAudioExtractor PCB
SCARTAudioExtractor is an open source PCB design by circuitsable, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 45.5 × 55.8 mm, with 3 components from 2 distinct parts.
It belongs with the audio and retro computing designs in this gallery.
From the project

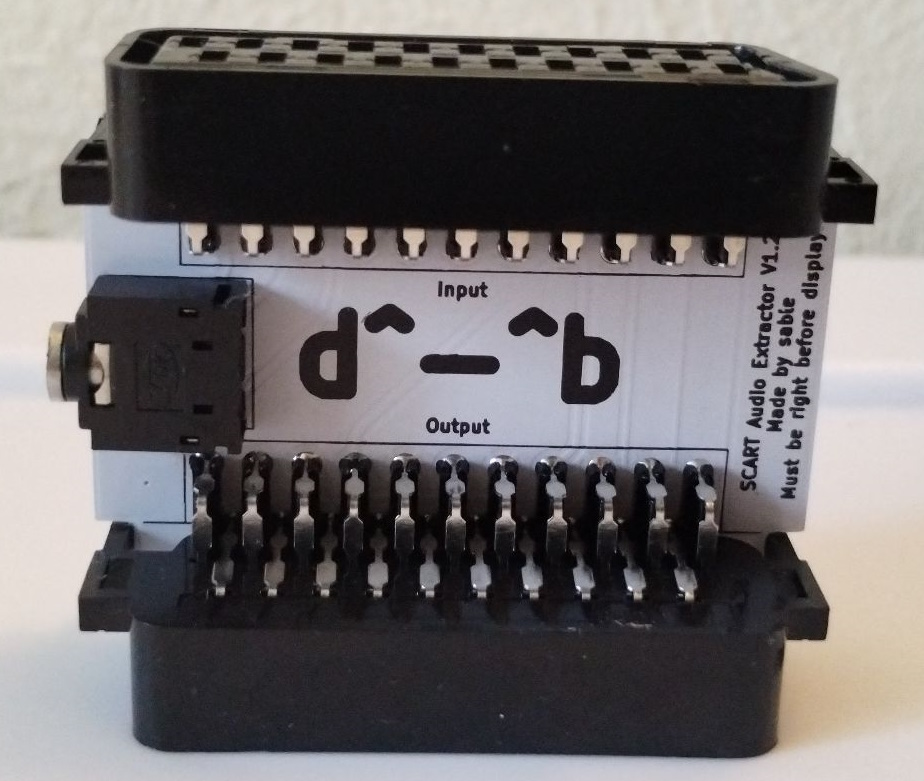

A SCART coupler that extracts the audio to a 3.5mm TRS jack
I have several older game consoles that output their video and audio over SCART, and I often want to listen to the game audio with headphones.
I designed this board because the few products that extract audio from a SCART cable either terminate to RCA jacks, are out of stock, or do not support RGB.
This board must be right before your display! Audio is completely removed from the SCART cable, and you will not get audio from the output SCART connector. This coupler also does not support daisy chaining and removes the mostly unused D2B bus signals as well.

SCARTAudioExtractor bill of materials (BOM)
3 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | SCART-F | KYCON_SCART_K-SCARTX-022_Horizontal | J1, J2 |
| 1 | AudioJack3 | Jack_3.5mm_CUI_SJ1-3523N_Horizontal | J3 |
SCARTAudioExtractor design files
The KiCad project lives in the circuitsable/SCARTAudioExtractor repository on GitHub; these links point at the commit this page was built from.
SCARTAudioExtractor: common questions
How big is the SCARTAudioExtractor PCB?
The SCARTAudioExtractor measures 45.5 × 55.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SCARTAudioExtractor?
3 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the SCARTAudioExtractor design files?
From the circuitsable/SCARTAudioExtractor repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the SCARTAudioExtractor design in my own project?
Yes, under the terms of its GPL-3.0 license, which circuitsable chose for the repository.
