Galatea Old Type 6u

Clein-KR·Galatea_Old_Type_6u_PCB

Galatea Old Type 6u PCB layout, top view — open source AVR/Arduino board by Clein-KR

About the Galatea Old Type 6u PCB

Galatea Old Type 6u is an open source AVR/Arduino PCB design by Clein-KR, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 344.5 × 123.3 mm, with 218 components from 24 distinct parts.

Its main chip is the ATMEGA32U4-MU, from the AVR/Arduino family. Other key parts include the PRTR5V0U2X. By type, the board carries 108 switches, 90 diodes, 7 capacitors, 2 ICs, 1 crystal and 1 fuse.

It belongs with the keyboards designs in this gallery.

From the project

Open Source Universal PCB for the a87 TKL Layout Keyboards

Geonworks에서 판매했던 Studio Kestra의 Galatea 구형 버전과 호환되는 a87 TKL 유니버셜 PCB입니다.

해당 PCB는 ISO 배열을 지원하지 않으며, 6.25u 대신 6u 하단열을 지원합니다.

또한 기존의 LED 인디케이터를 모두 버리고 Insert 키 위치에 캡스락 LED 인디케이터를 1개 배치하였습니다. 아래는 Vial의 탭댄스 기능을 활용한 인디케이터 테스트 영상입니다.

펌웨어는 QMK를 기반으로 Via와 Vial을 지원합니다. 펌웨어 소스코드와 Hex 파일은 여기에서 다운로드 받으실 수 있습니다.

PCB와 호환 보강판 제작에 관련된 가이드 도면은 여기에서 다운로드 받으실 수 있습니다.

해당 PCB의 프로토타입은 PCBWay를 통해 제작되었습니다. 프로토타입 제작에 사용되는 파일들은 여기에서 다운로드 받으실 수 있습니다.

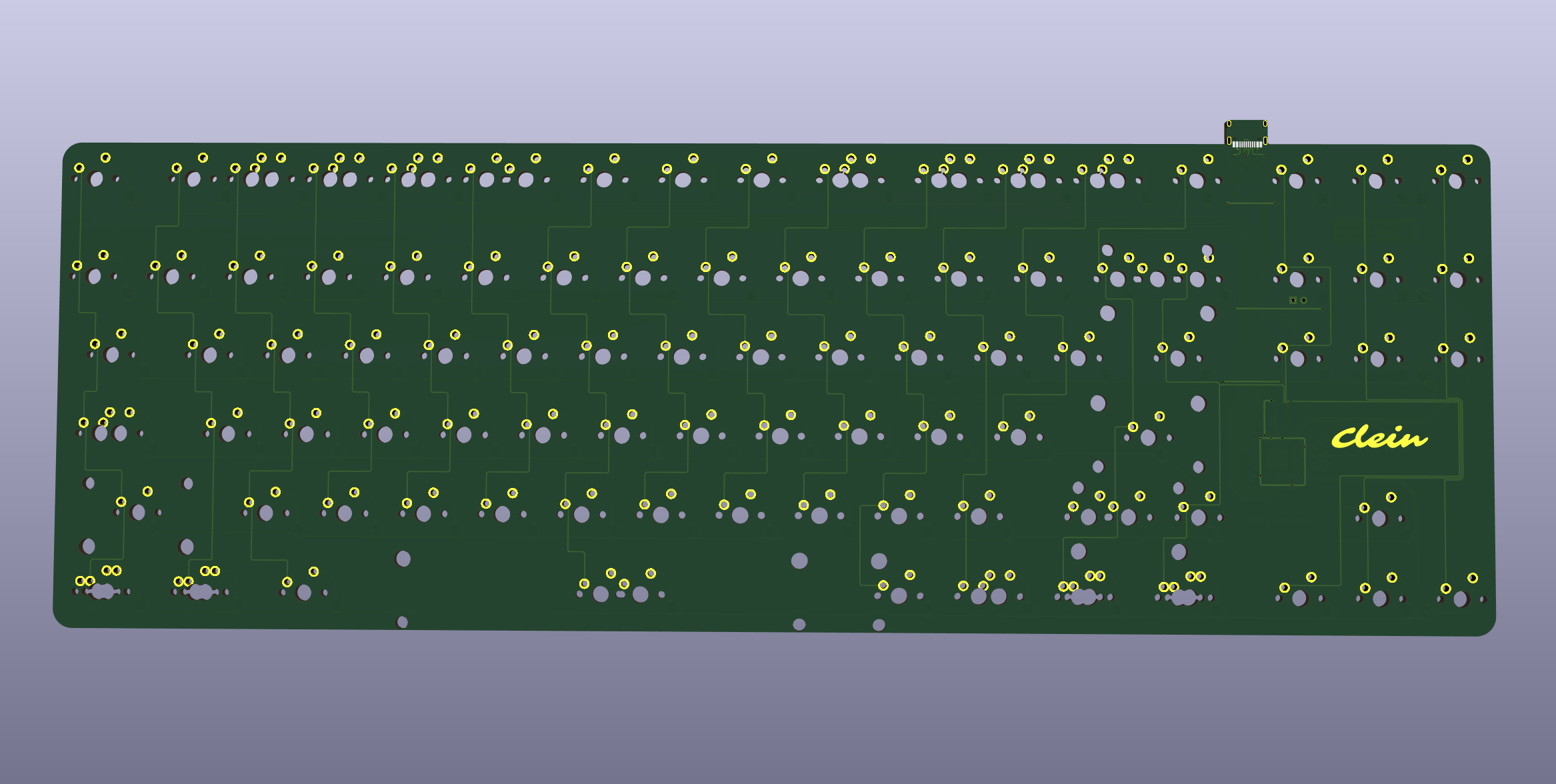

Galatea Old Type 6u, from the project README
From the project README

Main components on the Galatea Old Type 6u

ATMEGA32U4-MUPRTR5V0U2X

Galatea Old Type 6u bill of materials (BOM)

218 components, 24 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA32U4-MU
ATmega32U4-MU
MICROCHIP
U1
1
PRTR5V0U2X
Nexperia
U2
1
HY16MSMD3225OB1R30
16MHz
Huiyuan crystal
Y1
1
BSMD1206-050-16V
500mA
BHFUSE
F1
2
RC0603FR-0722RL
22
YAGEO
RC1, RC2
1
RC0603FR-0710KL
10k
YAGEO
RC3
2
RC0603FR-075K1L
5k1
YAGEO
RC4, RC5
2
RC0603FR-071KL
1k
YAGEO
RC6, RLED1
88
Keyswitch
S1, S2, S3, S3.5, S4, S4.5, S5, S5.5 +80
7
Keyswitch
S36, S49, S80, S82, S84, S85, S87
2
Keyswitch
S53, S77
5
Keyswitch
S53.5, S80.5, S81.5, S86.5, S87.5
2
Keyswitch
S65, S66
1
Keyswitch
S77.5
1
Keyswitch
S83
1
Keyswitch
S83.5
1
SKQGABE010
SW_Push
ALPSALPINE
SW1
1
TYPE-C-31-M-12
HRO-TYPE-C-31-M-12
Korean Hroparts Elec
USB1
1
Placeholder_LED
LED1
90
1N4148W
D_Small
Slkor(SLKORMICRO Elec.)
D1, D2, D3, D4, D5, D6, D7, D8 +82
Show 4 more
QtyPartRefs
1
CGA0603X5R105K160JT
1uF
HRE
C1
2
C0603C220J4GAC7867
22pF
KEMET
C2, C3
1
CGA0603X5R106M160JT
10uF
HRE
C4
3
CC0603KRX7R7BB104
0.1uF
YAGEO
C5, C6, C7

Galatea Old Type 6u design files

The KiCad project lives in the Clein-KR/Galatea_Old_Type_6u_PCB repository on GitHub; these links point at the commit this page was built from.

Galatea Old Type 6u: common questions

What microcontroller does the Galatea Old Type 6u use?

The Galatea Old Type 6u is built around the ATMEGA32U4-MU, from the AVR/Arduino family.

How big is the Galatea Old Type 6u PCB?

The Galatea Old Type 6u measures 344.5 × 123.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Galatea Old Type 6u?

218 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Galatea Old Type 6u design files?

From the Clein-KR/Galatea_Old_Type_6u_PCB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Galatea Old Type 6u design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Galatea Old Type 6u without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
