SofleKeyboardTopPlate
About the SofleKeyboardTopPlate PCB
SofleKeyboardTopPlate is an open source PCB design by climent, published on GitHub under the MIT license. It is a 2-layer board measuring 143.3 × 111.8 mm, with 5 components from 1 distinct parts.
It belongs with the keyboards designs in this gallery.
From the project

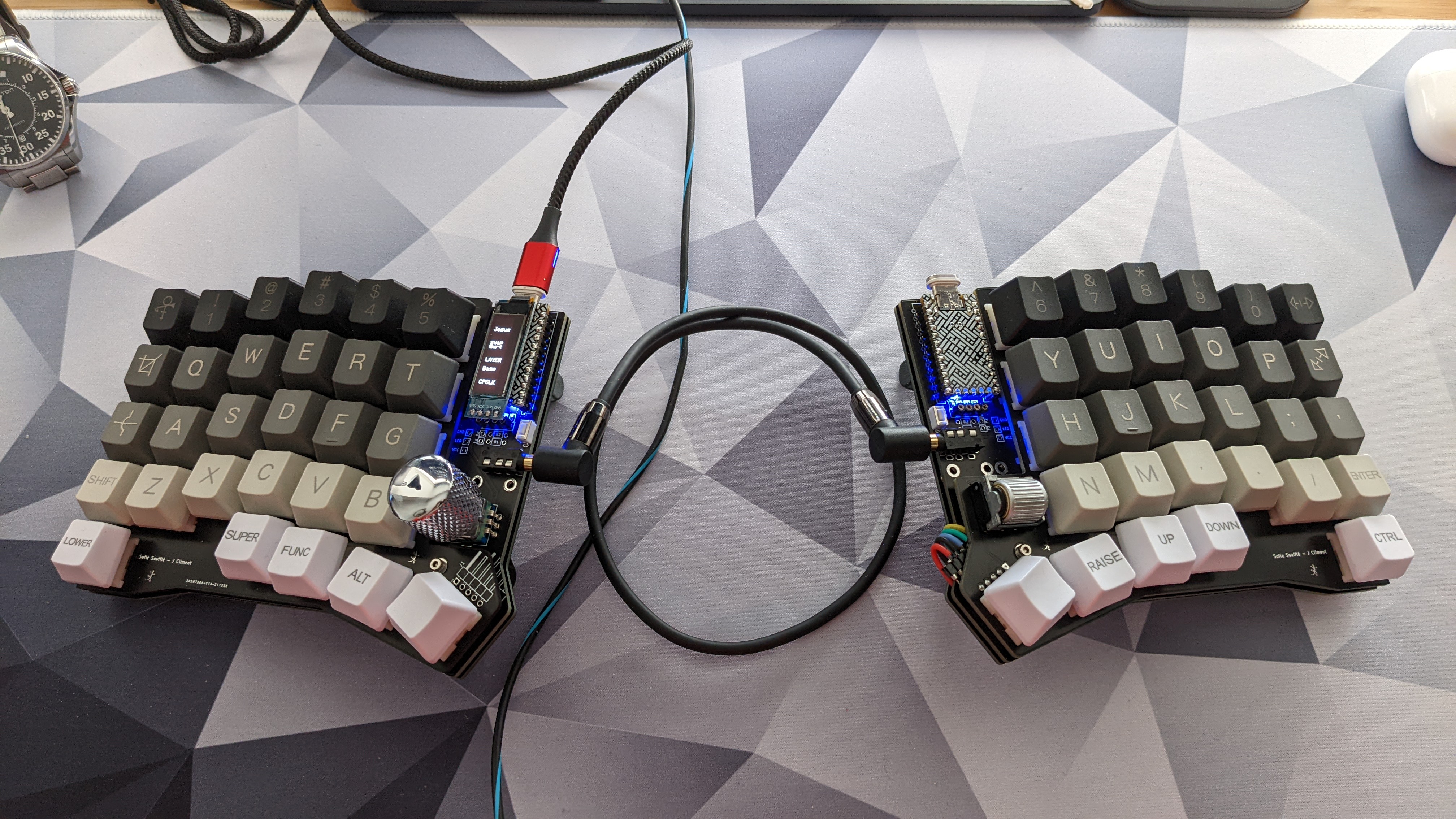

Soufflé vR is 6×4+1+4+1 keys column-staggered split keyboard with encoder support, based on the Sofle RGB version, and re-inspired by the Lily58 keyboard.
Soufflé vR is 6×4+1+4+1 keys column-staggered split keyboard with encoder support, based on the Sofle RGB version, and re-inspired by the Lily58 keyboard.
Palm key at the bottom of the outer pinky column. 2x rotary encoders. Original RGB features were removed. Exposed pins for roller encoder on the upper case plate. * More (to be listed).
Soufflé uses QMK firmware and it is fully compatible with the Sofle firmware.
SofleKeyboardTopPlate bill of materials (BOM)
5 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | HOLE | HOLE_M2_TH | TH3, TH4, TH5, TH6, TH7 |
SofleKeyboardTopPlate design files
The KiCad project lives in the climent/SouffleKeyboard repository on GitHub; these links point at the commit this page was built from.
SofleKeyboardTopPlate: common questions
How big is the SofleKeyboardTopPlate PCB?
The SofleKeyboardTopPlate measures 143.3 × 111.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SofleKeyboardTopPlate?
5 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the SofleKeyboardTopPlate design files?
From the climent/SouffleKeyboard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the SofleKeyboardTopPlate design in my own project?
Yes, under the terms of its MIT license, which climent chose for the repository.
