Souffle v2
About the Souffle v2 PCB
Souffle v2 is an open source PCB design by climent, published on GitHub under the MIT license. It is a 2-layer board measuring 137.2 × 109.3 mm, with 81 components from 12 distinct parts.
Other key parts include the ProMicro. By type, the board carries 31 switches, 30 diodes, 8 jumpers, 3 connectors and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project

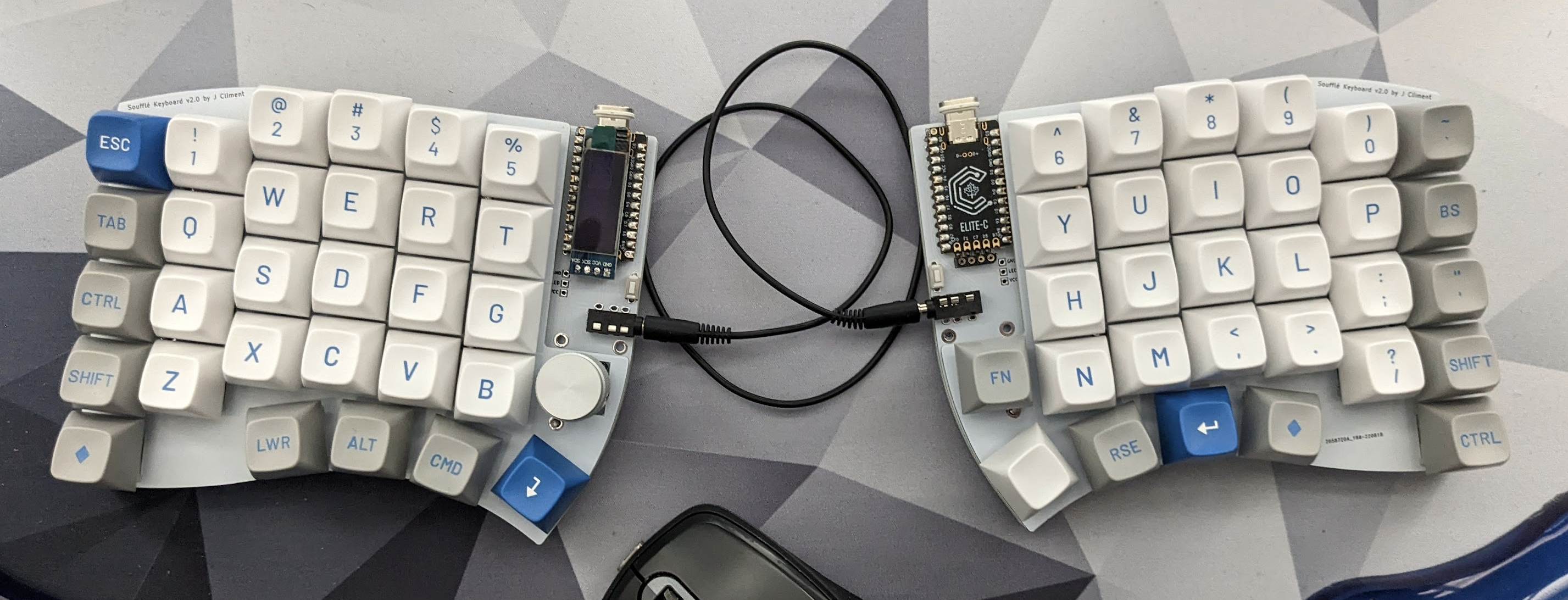

Soufflé v2 is 6×4+1+4+1 keys column-staggered split keyboard with encoder, OLED, and palm key support. It is an evolution of the Soufflé V1 and VR keyboard, with a slightly more aggressive arrangement of the pinkie columns.
Soufflé v2 is 6×4+1+4+1 keys column-staggered split keyboard with encoder, OLED, and palm key support. It is an evolution of the Soufflé V1 and VR keyboard, with a slightly more aggressive arrangement of the pinkie columns.
Soufflé V2 was created by Jesus Climent.
Pinkie columns have been lowered ~5mm, to make them more accessible. Thumb cluster repositioned, to make the keys slightly more accessible. It is now possible to use switches in the position of the 2x rotary encoders. Curved contour of the plates.
Main components on the Souffle v2
Souffle v2 bill of materials (BOM)
81 components, 12 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro | ProMicro | U1 |
| 1 | LED | LED | J1 |
| 1 | 4PIN | MJ-4PP-9 | J2 |
| 1 | OLED | OLED_4Pin | J3 |
| 8 | SolderJumper_2_Open | Jumper | JP1, JP2, JP3, JP4, JP5, JP6, JP7, JP8 |
| 1 | SW_RST | TACT_SWITCH_TVBP06 | RSW1 |
| 29 | SW_PUSH | CherryMX_Hotswap_mod | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +21 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW25b1 |
| 1 | SW_PUSH | CherryMX_Hotswap_1.5_mod | SW26 |
| 2 | HOLE | M2_HOLE_PCB | TH1, TH2 |
| 5 | HOLE | HOLE_M2_TH | TH3, TH4, TH5, TH6, TH7 |
| 30 | D | Diode_SOD123 | D1, D2, D3, D4, D5, D6, D7, D8 +22 |
Souffle v2 design files
The KiCad project lives in the climent/SouffleKeyboard repository on GitHub; these links point at the commit this page was built from.
Souffle v2: common questions
How big is the Souffle v2 PCB?
The Souffle v2 measures 137.2 × 109.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Souffle v2?
81 components, from 12 distinct parts. The full bill of materials is listed on this page.
Where can I download the Souffle v2 design files?
From the climent/SouffleKeyboard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Souffle v2 design in my own project?
Yes, under the terms of its MIT license, which climent chose for the repository.
