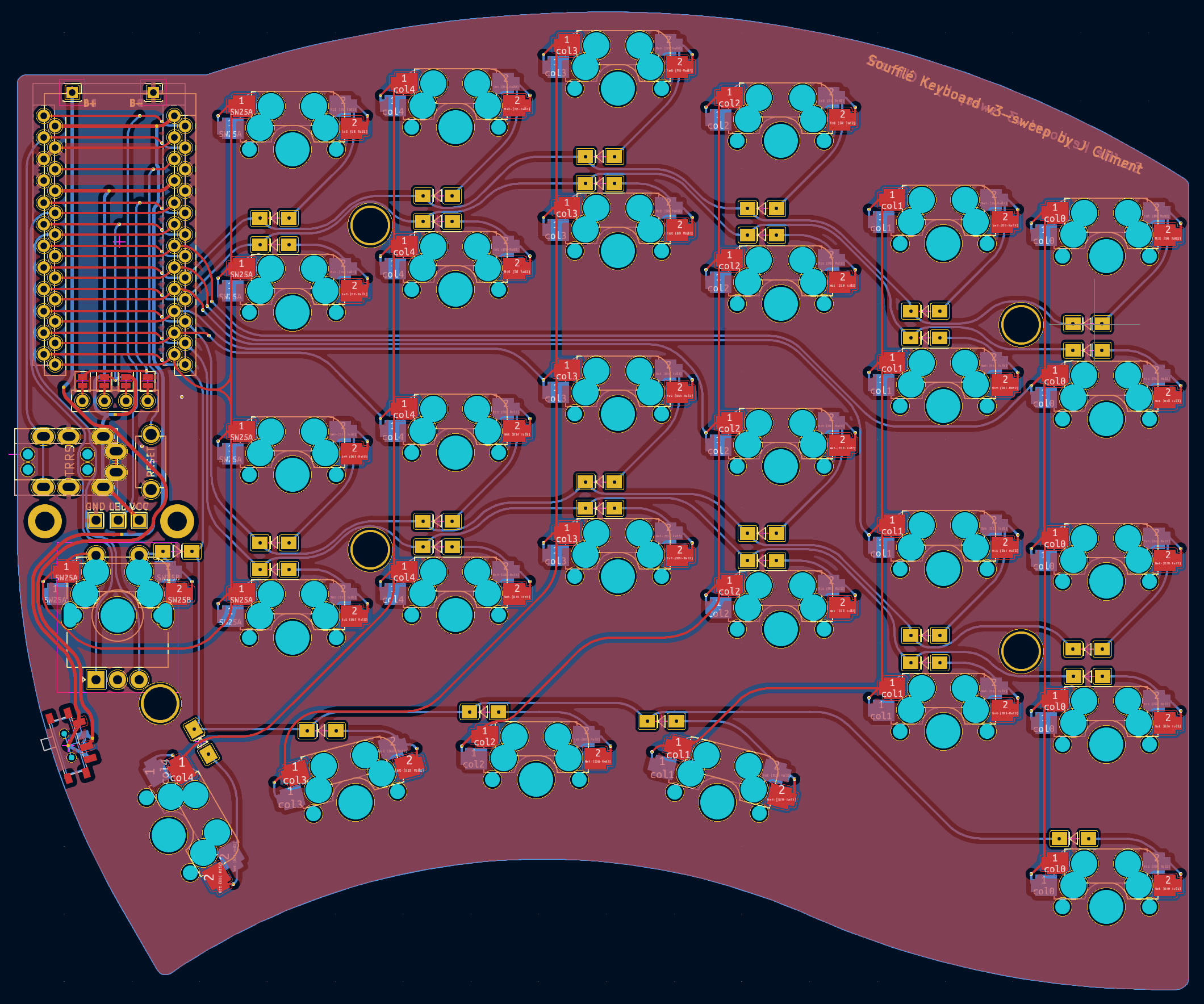

Souffle v3 sweep choc
About the Souffle v3 sweep choc PCB
Souffle v3 sweep choc is an open source PCB design by climent, published on GitHub under the MIT license. It is a 2-layer board measuring 132.1 × 108 mm, with 84 components from 13 distinct parts.
Other key parts include the ProMicro. By type, the board carries 32 switches, 30 diodes, 8 jumpers, 5 connectors and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project
The Soufflé Keyboard is 6×4+1+4+1 keys column-staggered split keyboard with encoder support, based on the Sofle and re-inspired by the Lily58 keyboards. It also takes a bit of layout ideas from the Kyria and the Ferris Sweep.
The Soufflé Keyboard is 6×4+1+4+1 keys column-staggered split keyboard with encoder support, based on the Sofle and re-inspired by the Lily58 keyboards. It also takes a bit of layout ideas from the Kyria and the Ferris Sweep.
Originally based on the Sofle V1 release layout, the two pinky columns have been lowered in the Soufflé: ~5mm for the V2, ~10mm for the V3 Sweep the thumb cluster has been repositioned to allow for equal reach of the keys a palm key has been added at the bottom of the outer pinkie column Choice between rotary encoder or key switch for the inner keys. Redone track layout…
Main components on the Souffle v3 sweep choc
Souffle v3 sweep choc bill of materials (BOM)
84 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro | ProMicro | U1 |
| 1 | LED | LED | J1 |
| 1 | 4PIN | MJ-4PP-9 | J2 |
| 1 | OLED | OLED_4Pin | J3 |
| 2 | Conn_01x01_Female | PinSocket_1x01_P2.00mm_Vertical | J4, J5 |
| 8 | SolderJumper_2_Open | Jumper | JP1, JP2, JP3, JP4, JP5, JP6, JP7, JP8 |
| 1 | SW_RST | TACT_SWITCH_TVBP06 | RSW1 |
| 30 | SW_PUSH | Choc_Hotswap_Souffle | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +22 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW25b1 |
| 1 | SW_SPDT | Switch_MSK-12C01-07 | SW31 |
| 2 | HOLE | M2_HOLE_PCB | TH1, TH2 |
| 5 | HOLE | HOLE_M2_TH_CALIBRATED | TH3, TH4, TH5, TH6, TH7 |
| 30 | D | Diode_SOD123 | D1, D2, D3, D4, D5, D6, D7, D8 +22 |
Souffle v3 sweep choc design files
The KiCad project lives in the climent/SouffleKeyboard repository on GitHub; these links point at the commit this page was built from.
Souffle v3 sweep choc: common questions
How big is the Souffle v3 sweep choc PCB?
The Souffle v3 sweep choc measures 132.1 × 108 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Souffle v3 sweep choc?
84 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Souffle v3 sweep choc design files?
From the climent/SouffleKeyboard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Souffle v3 sweep choc design in my own project?
Yes, under the terms of its MIT license, which climent chose for the repository.
