Souffle v3 sweep
About the Souffle v3 sweep PCB
Souffle v3 sweep is an open source PCB design by climent, published on GitHub under the MIT license. It is a 2-layer board measuring 137.2 × 114.5 mm, with 84 components from 14 distinct parts.
Other key parts include the ProMicro. By type, the board carries 32 switches, 30 diodes, 8 jumpers, 5 connectors and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project

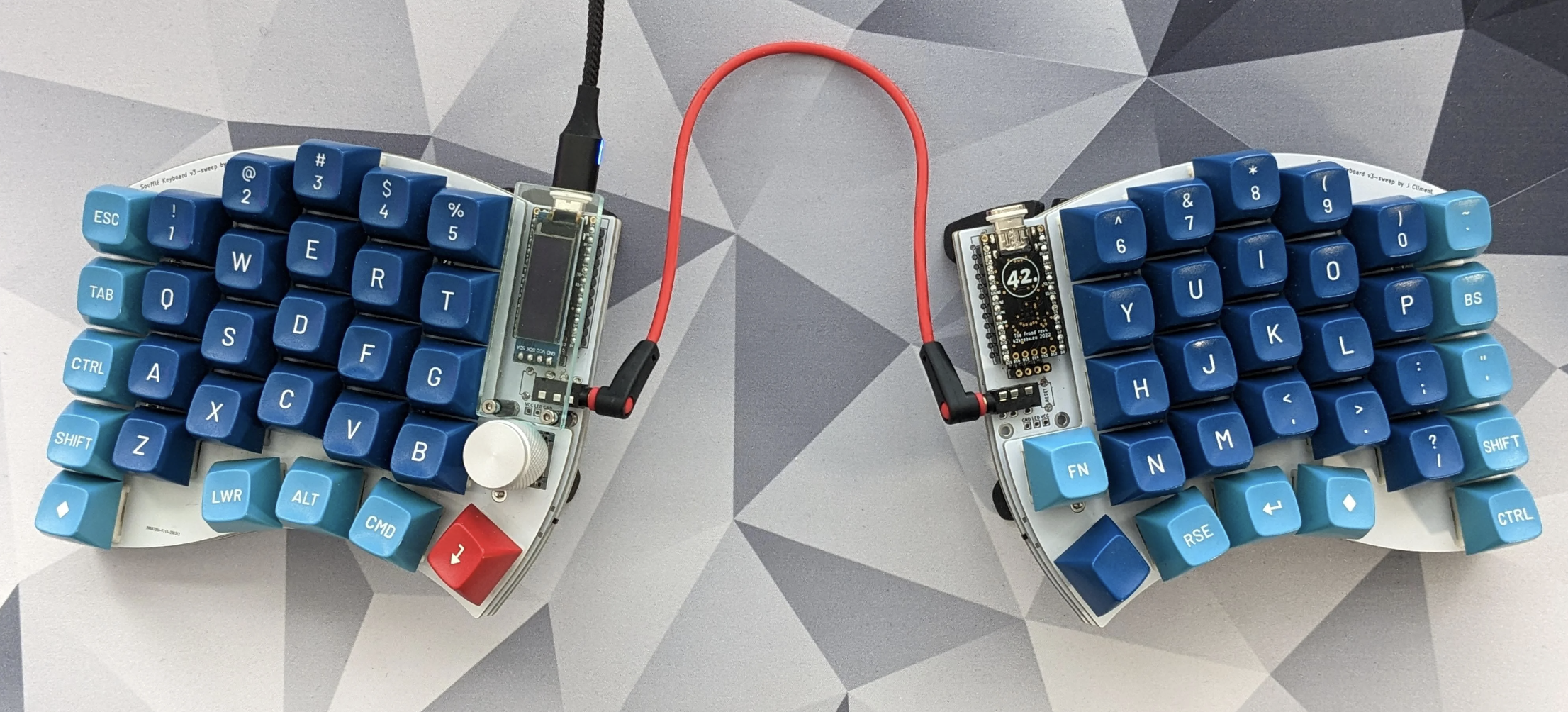

Soufflé v3 is 6×4+1+4+1 keys column-staggered split keyboard with encoder, OLED, palm key and nice!nano support. It is an evolution of the Soufflé V2 keyboard, with a more aggressive arrangement of the pinkie columns.
Soufflé v3 is 6×4+1+4+1 keys column-staggered split keyboard with encoder, OLED, palm key and nice!nano support. It is an evolution of the Soufflé V2 keyboard, with a more aggressive arrangement of the pinkie columns.
Soufflé V3 Sweep was created by Jesus Climent.
Pinkie columns have been lowered ~5mm (~10mm compared to V1), to make them more accessible. Middle finger column has been raised ~3mm. * Reset button has been moved to an internal position, and the lower plate has a hole, making it accessible from the bottom of the keyboard. ## Firmware
Main components on the Souffle v3 sweep
Souffle v3 sweep bill of materials (BOM)
84 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro | ProMicro | U1 |
| 1 | LED | LED | J1 |
| 1 | 4PIN | MJ-4PP-9 | J2 |
| 2 | Conn_01x01_Female | PinSocket_1x01_P2.00mm_Vertical | J4, J5 |
| 1 | Conn_01x05_MountingPin | PinHeader_1x05_P2.54mm_Vertical | J9 |
| 8 | SolderJumper_2_Open | SolderJumper-2_P1.3mm_Open_Pad1.0x1.5mm | JP9, JP10, JP12, JP13, JP14, JP15, JP17, JP18 |
| 1 | SW_RST | TACT_SWITCH_TVBP06 | RSW1 |
| 29 | SW_PUSH | CherryMX_Hotswap_mod | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +21 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW25b1 |
| 1 | SW_PUSH | CherryMX_Hotswap_1.5_mod | SW26 |
| 1 | SW_SPDT | Switch_MSK-12C01-07 | SW31 |
| 2 | HOLE | M2_HOLE_PCB | TH1, TH2 |
| 5 | HOLE | HOLE_M2_TH | TH3, TH4, TH5, TH6, TH7 |
| 30 | D | Diode_SOD123 | D1, D2, D3, D4, D5, D6, D7, D8 +22 |
Souffle v3 sweep design files
The KiCad project lives in the climent/SouffleKeyboard repository on GitHub; these links point at the commit this page was built from.
Souffle v3 sweep: common questions
How big is the Souffle v3 sweep PCB?
The Souffle v3 sweep measures 137.2 × 114.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Souffle v3 sweep?
84 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the Souffle v3 sweep design files?
From the climent/SouffleKeyboard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Souffle v3 sweep design in my own project?
Yes, under the terms of its MIT license, which climent chose for the repository.
