SouffleKeyboard
About the SouffleKeyboard PCB
SouffleKeyboard is an open source PCB design by climent, published on GitHub under the MIT license. It is a 2-layer board measuring 137.2 × 109.3 mm, with 85 components from 15 distinct parts.
Other key parts include the ProMicro. By type, the board carries 30 switches, 30 diodes, 8 jumpers, 5 connectors, 2 resistors and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project

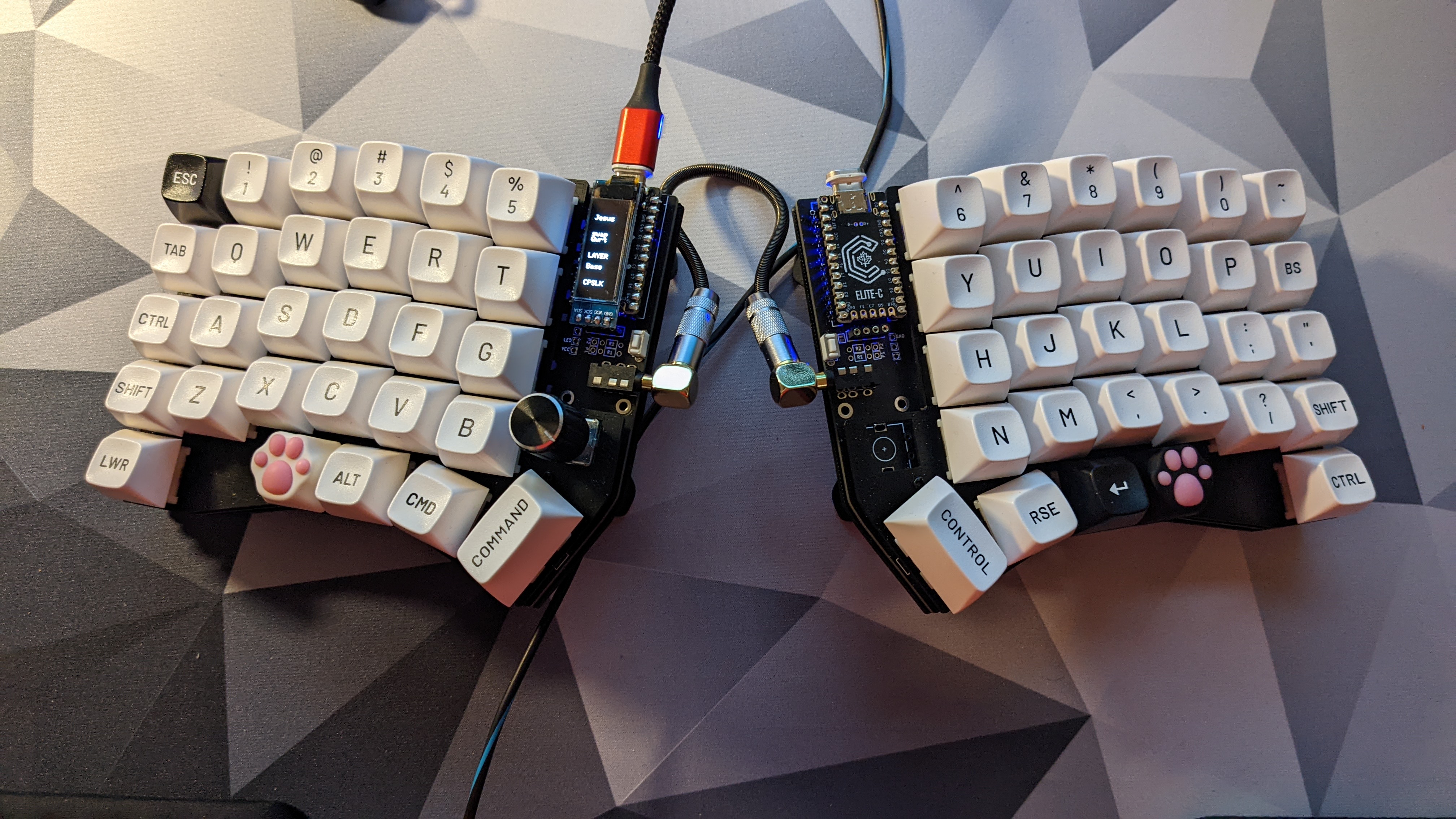

Soufflé v1 is 6×4+1+4+1 keys column-staggered split keyboard with encoder support, based on the Sofle and re-inspired by the Lily58 keyboards.
Soufflé v1 is 6×4+1+4+1 keys column-staggered split keyboard with encoder support, based on the Sofle and re-inspired by the Lily58 keyboards.
* Palm key at the bottom of the outer pinky column.
Soufflé uses QMK firmware and it is fully compatible with the Sofle firmware.
Soufflé uses a similar layout than the Sofle, with a full 6x5 matrix, and the encoders connected to the same pins. The main difference is the position of the outermost thumb key, which has been moved to the bottom of the pinky column, to be used with the palm.
Main components on the SouffleKeyboard
SouffleKeyboard bill of materials (BOM)
85 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro | ProMicro | U1 |
| 1 | LED | LED | J1 |
| 1 | 4PIN | MJ-4PP-9 | J2 |
| 1 | OLED | OLED_4Pin | J3 |
| 2 | i2c_pin | 1pin_conn | P1, P2 |
| 8 | Jumper_NO_Small | Jumper | JP1, JP2, JP3, JP4, JP5, JP6, JP7, JP8 |
| 1 | SW_RST | TACT_SWITCH_TVBP06 | RSW1 |
| 28 | SW_PUSH | CherryMX_Hotswap_mod | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +20 |
| 1 | Rotary_Encoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm-keebio_modified | SW25 |
| 1 | SW_PUSH | CherryMX_Hotswap_1.5_mod | SW26 |
| 2 | HOLE | M2_HOLE_PCB | TH1, TH2 |
| 5 | HOLE | HOLE_M2_TH | TH3, TH4, TH5, TH6, TH7 |
| 1 | jumper | jumper_data | W1 |
| 30 | D | Diode_SOD123 | D1, D2, D3, D4, D5, D6, D7, D8 +22 |
| 2 | R | RESISTOR_mini | R1, R2 |
SouffleKeyboard design files
The KiCad project lives in the climent/SouffleKeyboard repository on GitHub; these links point at the commit this page was built from.
SouffleKeyboard: common questions
How big is the SouffleKeyboard PCB?
The SouffleKeyboard measures 137.2 × 109.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SouffleKeyboard?
85 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the SouffleKeyboard design files?
From the climent/SouffleKeyboard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the SouffleKeyboard design in my own project?
Yes, under the terms of its MIT license, which climent chose for the repository.
